Toyota GR 86

2022-03 → present · chassis ZN8 · catalogue 264230 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

14 part groups · 2 illustrations

Illustrations

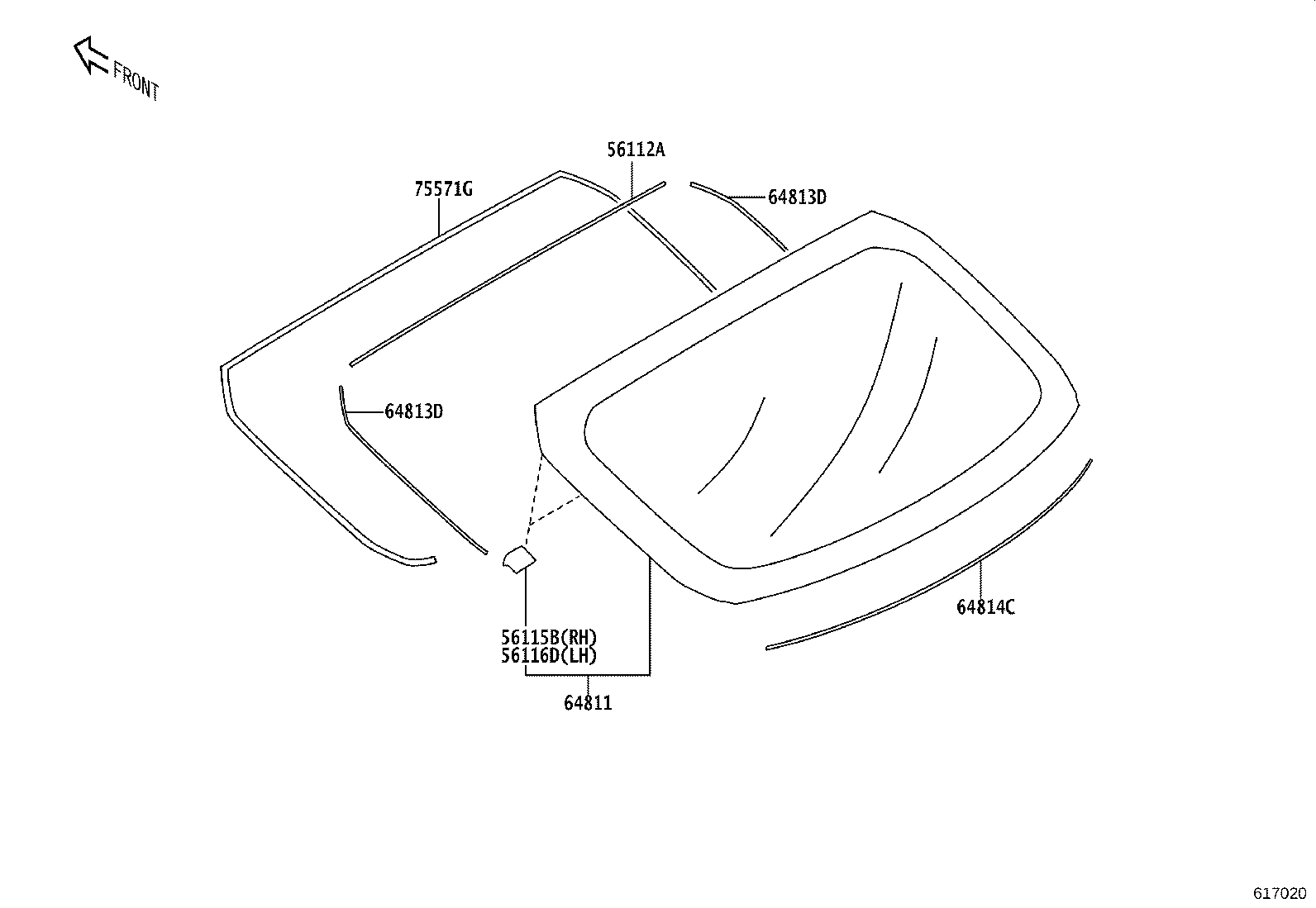

Figure 617019C 617019C 2022-03 → — Figure 617020 617020 2022-03 → —

Part groups

PNCDescription
56112A Dam, Window Glass Adhesive
56115B Stopper, Back Window Glass, NO.1
56116D Stopper, Back Window Glass, NO.2
61719G Bracket, Roof Side, Inner
63102A Panel Sub-assy, Windshield Header
63111 Panel, Roof
63123C Reinforcement, Roof Panel
63141H Reinforcement, Roof Panel, Center
63143A Reinforcement, Roof Panel
64101 Panel Sub-assy, Upper Back
64811 Glass, Back Window
64813D Dam, Back Window Glass Adhesive
64814C Dam, Back Window Glass Adhesive, Lower
75571G Moulding, Back Window, Outside Upper, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
