Toyota GR 86
2022-03 → present · chassis ZN8 · catalogue 264230 · Europe
Supported model
Data version 2024-10
Inside Trim Board & Door Opening Trim Moulding
29 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62117C | Clip, NO.2(FOR COWL SIDE TRIM) |

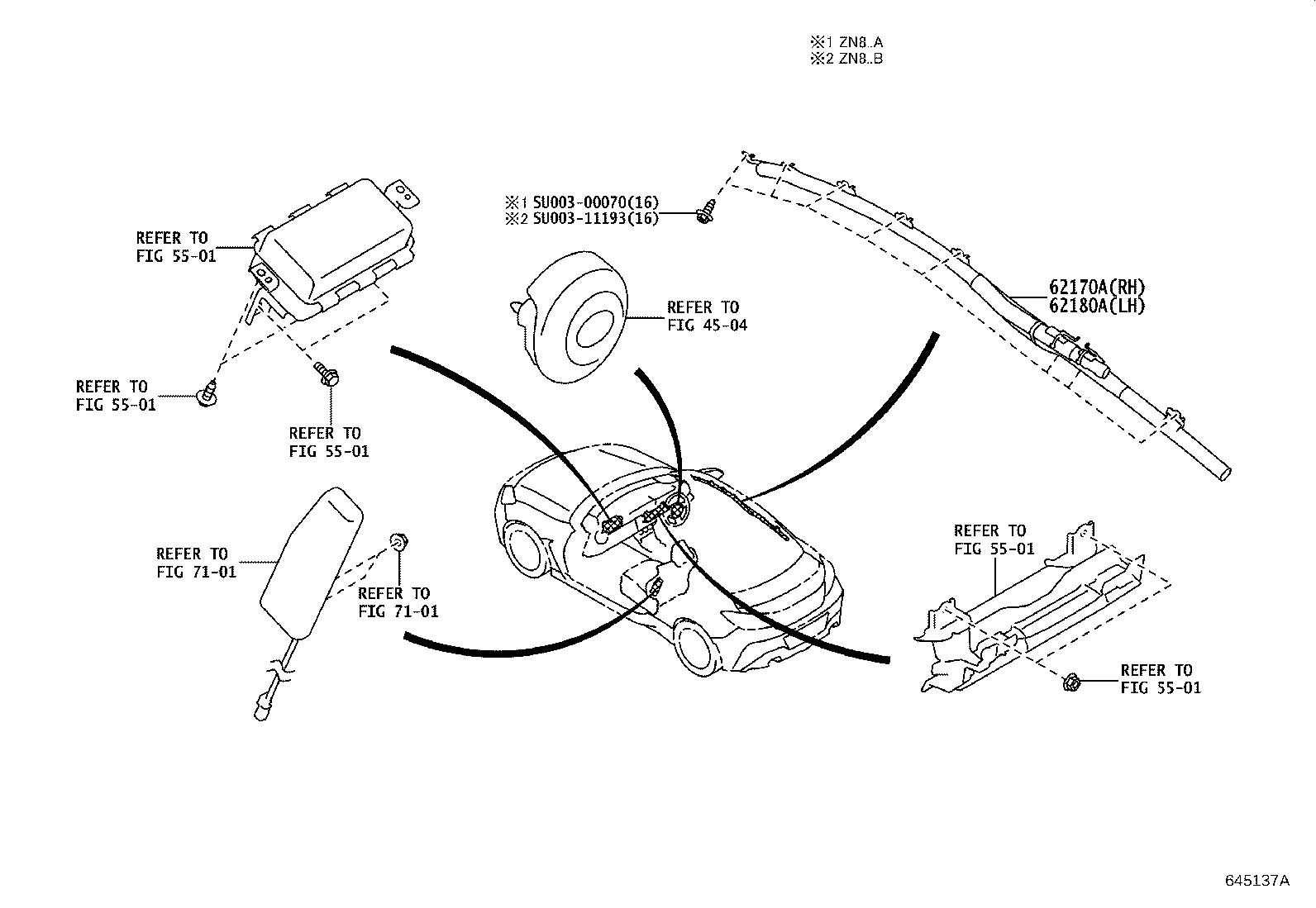

| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |

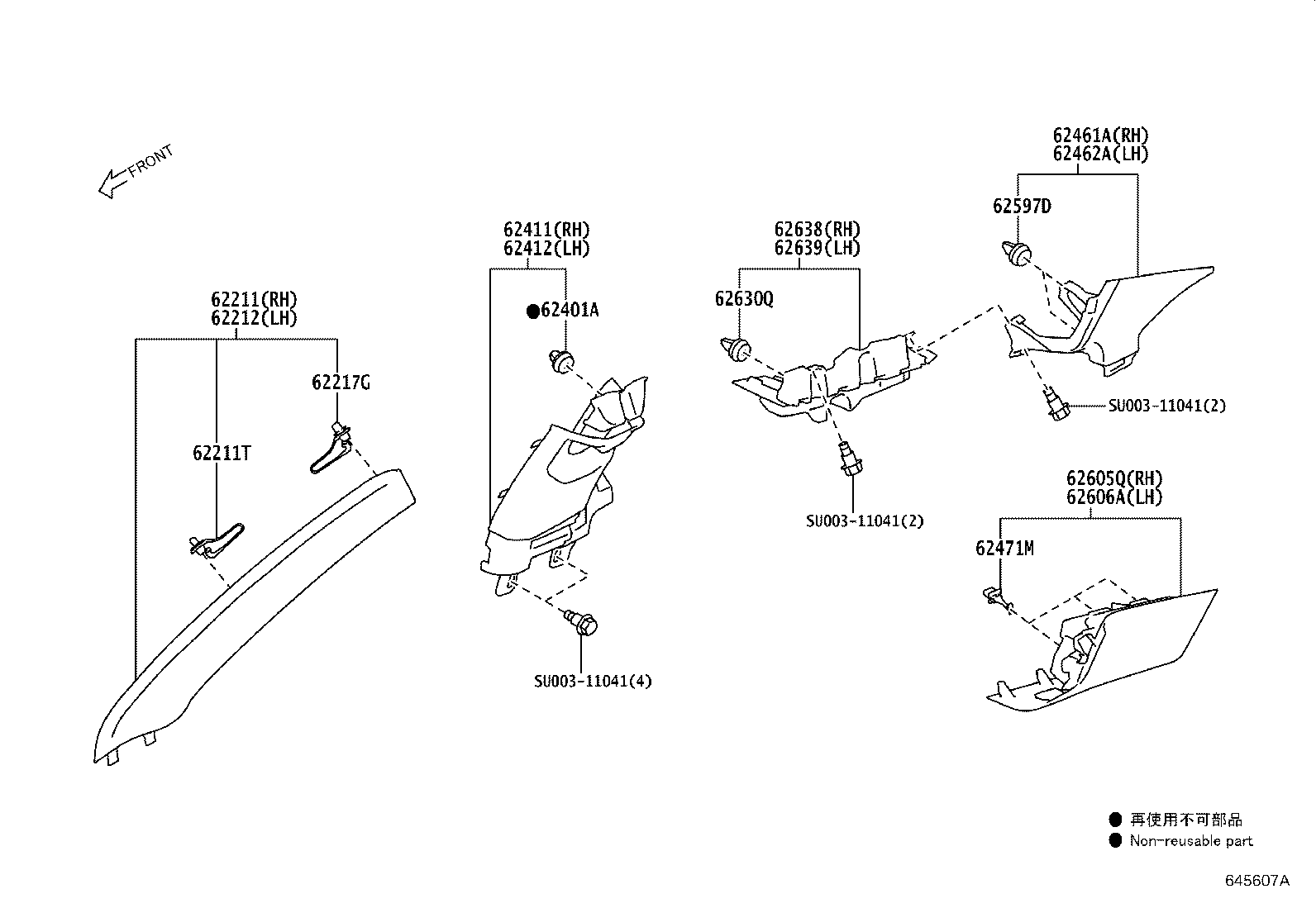

| 62211 | Garnish, Front Pillar, RH |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |

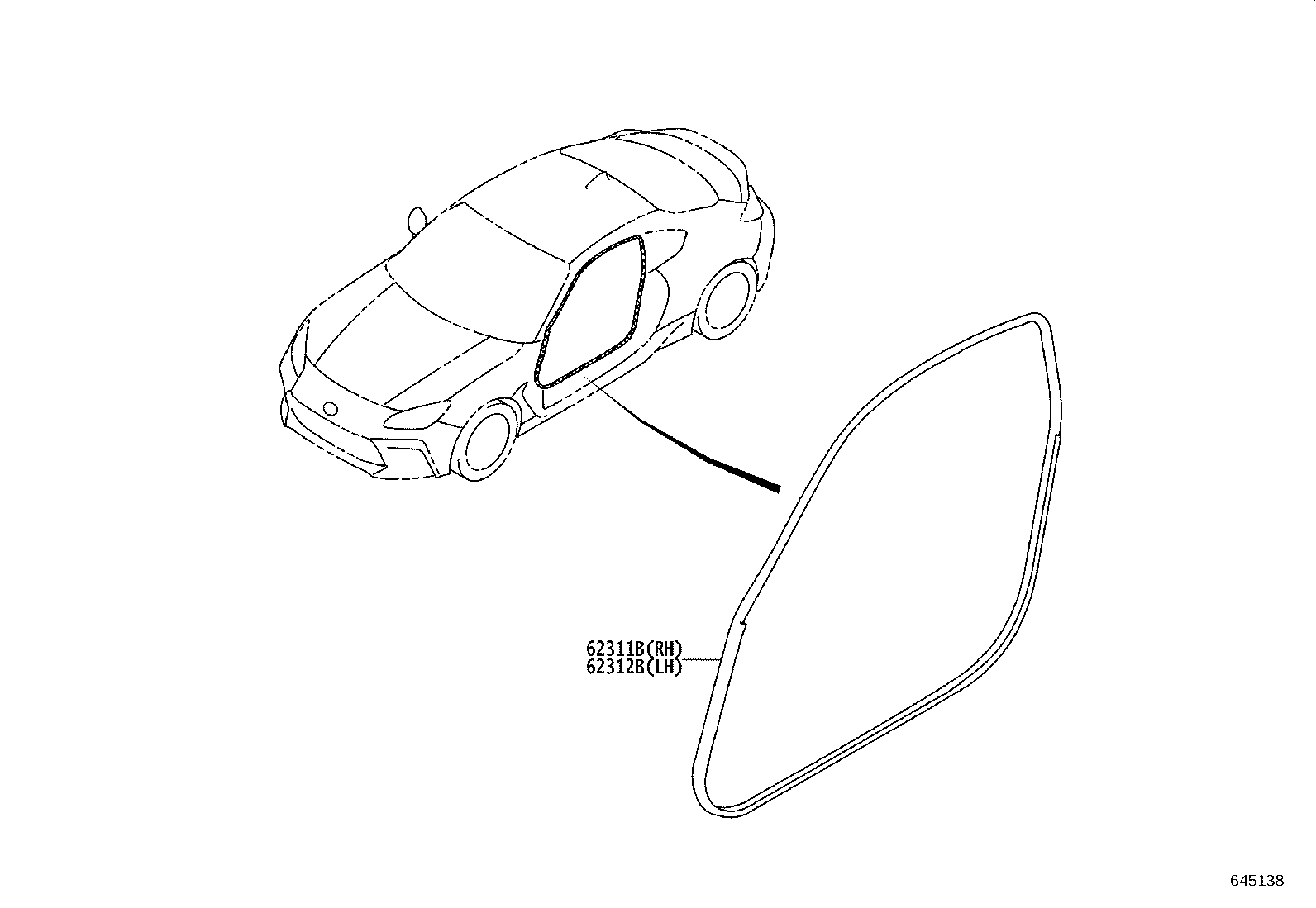

| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62461A | Garnish, Rear Window Side, RH |
| 62462A | Garnish, Rear Window Side, LH |
| 62471M | Clip |
| 62597D | Clip |
| 62605Q | Lid Sub-assy, Quarter Trim, RH |
| 62606A | Lid Sub-assy, Quarter Trim, LH |
| 62630Q | Clip (FOR QUARTER TRIM) |
| 62638 | Garnish, Rear Quarter Trim, Front RH |
| 62639 | Garnish, Rear Quarter Trim, Front LH |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67913A | Clip(FOR SCUFF PLATE) |
| 67914 | Plate, Front Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
