Toyota GR 86
2022-03 → present · chassis ZN8 · catalogue 264230 · Europe
Supported model
Data version 2024-10

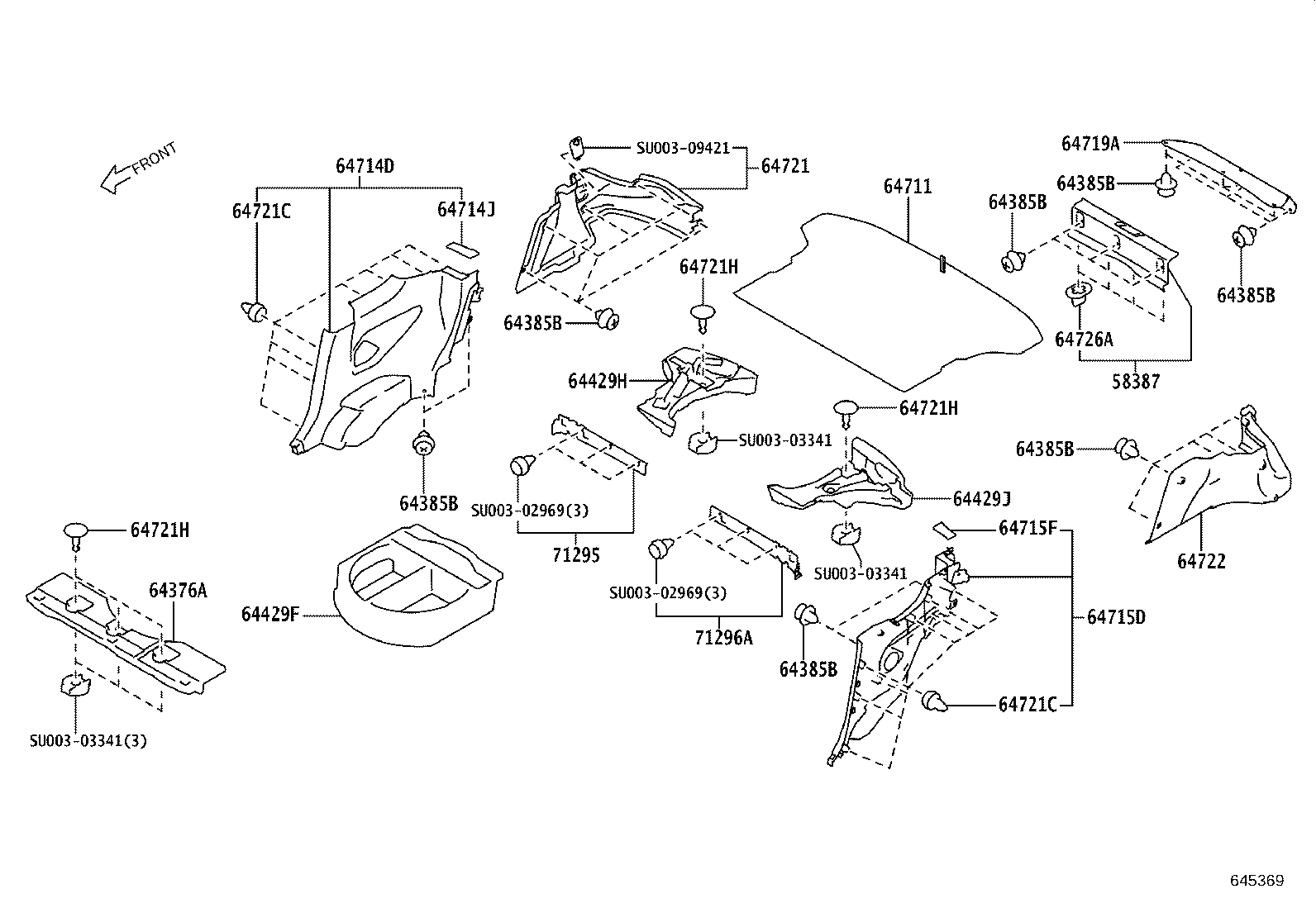

Package Tray Panel & Luggage Compartment Mat
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64330J | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64376A | Spacer, Package Tray Trim, NO.2 |
| 64385B | Clip |
| 64429F | Box, Luggage Compartment Trim |
| 64429H | Tray, Luggage Compartment Side |
| 64429J | Tray, Luggage Compartment Side |
| 64711 | Mat, Luggage Compartment Floor |
| 64714D | Cover, Luggage Compartment Trim, Side, RH |
| 64714J | Cover, Deck Side Trim, RH |
| 64715D | Cover, Luggage Compartment Trim, Side, LH |
| 64715F | Cover, Deck Side Trim, LH |
| 64719A | Cover, Luggage Compartment Door |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721C | Clip(LUGGAGE COMPARTMENT) |
| 64721H | Clip(LUGGAGE COMPARTMENT) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64726A | Clip, Luggage Trim, Rear |
| 71295 | Plate, Rear Seatback, Upper RH |
| 71296A | Plate, Rear Seatback, Upper LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
