Rear Seat & Seat Track

26 part groups · 3 illustrations

Illustrations

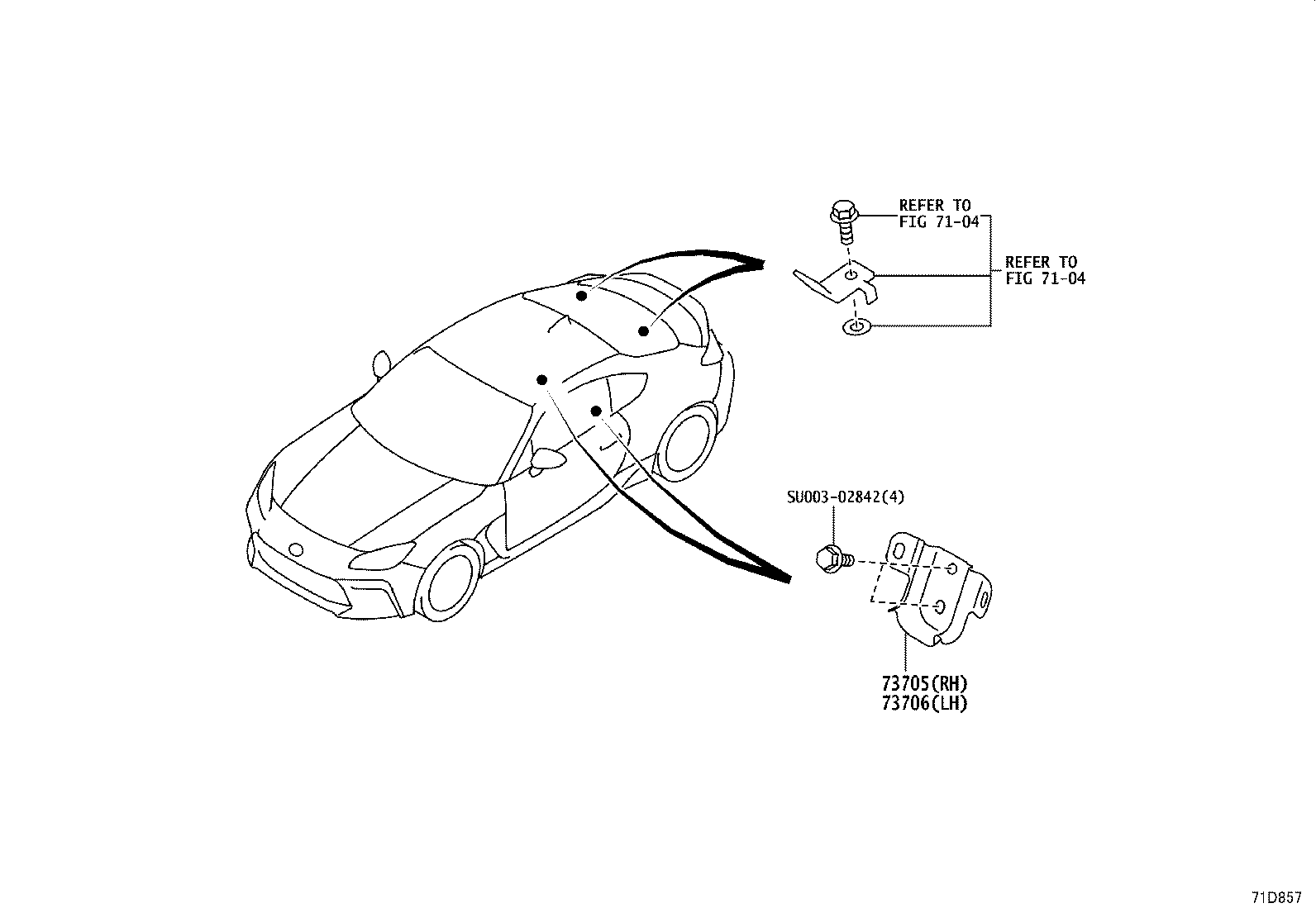

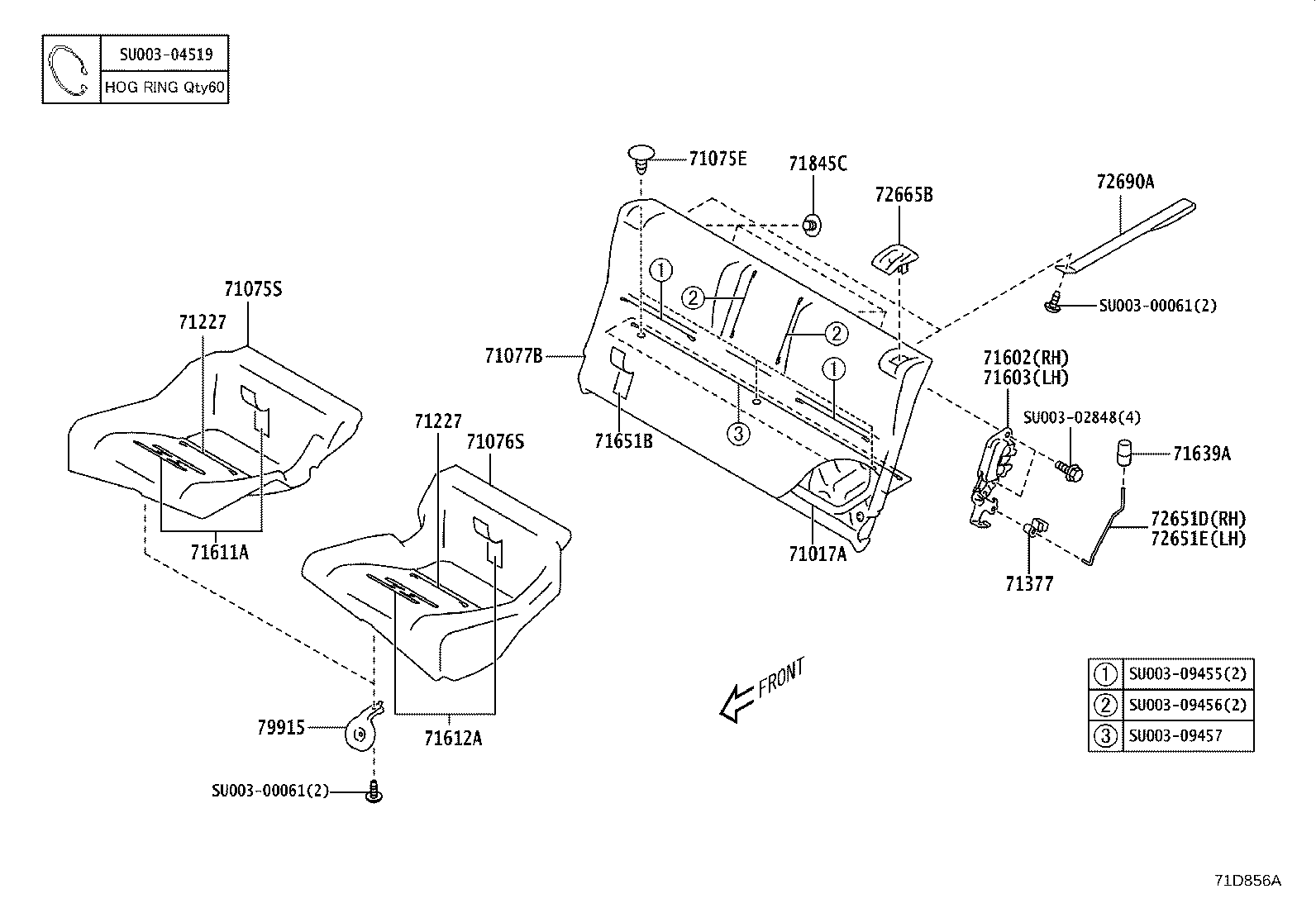

Figure 71E193 71E193 2022-03 → — Figure 71D856A 71D856A 2022-03 → — Figure 71D857 71D857 2022-03 → —

Part groups

PNCDescription
71017A Frame Sub-assy, Rear Seatback
71075E Clip(FOR REAR SEAT)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71227 Wire, Rear Seat Cushion Cover Set
71301D Hinge Sub-assy, Rear Seat, RH
71302D Hinge Sub-assy, Rear Seat, LH
71329 Bolt, Rear Seat Hinge
71377 Guide, Control Lever
71602 Lock Sub-assy, Rear Seatback, RH
71603 Lock Sub-assy, Rear Seatback, LH
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71639A Knob, Rear Seat Lock
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71845C Cap, Rear Seat Cover
72601A Striker Sub-assy, Rear Seatback Look, RH
72602A Striker Sub-assy, Rear Seatback Lock, LH
72651D Rod, Rear Seatback Lock, RH
72651E Rod, Rear Seatback Lock, LH
72665B Cover, Rear Seatback Lock
72690A Strap Assy, Rear Seat Lock Release
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
79915 Bracket, Seat Leg
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
