Toyota GR 86

2022-03 → present · chassis ZN8 · catalogue 264230 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

10 part groups · 4 illustrations

Illustrations

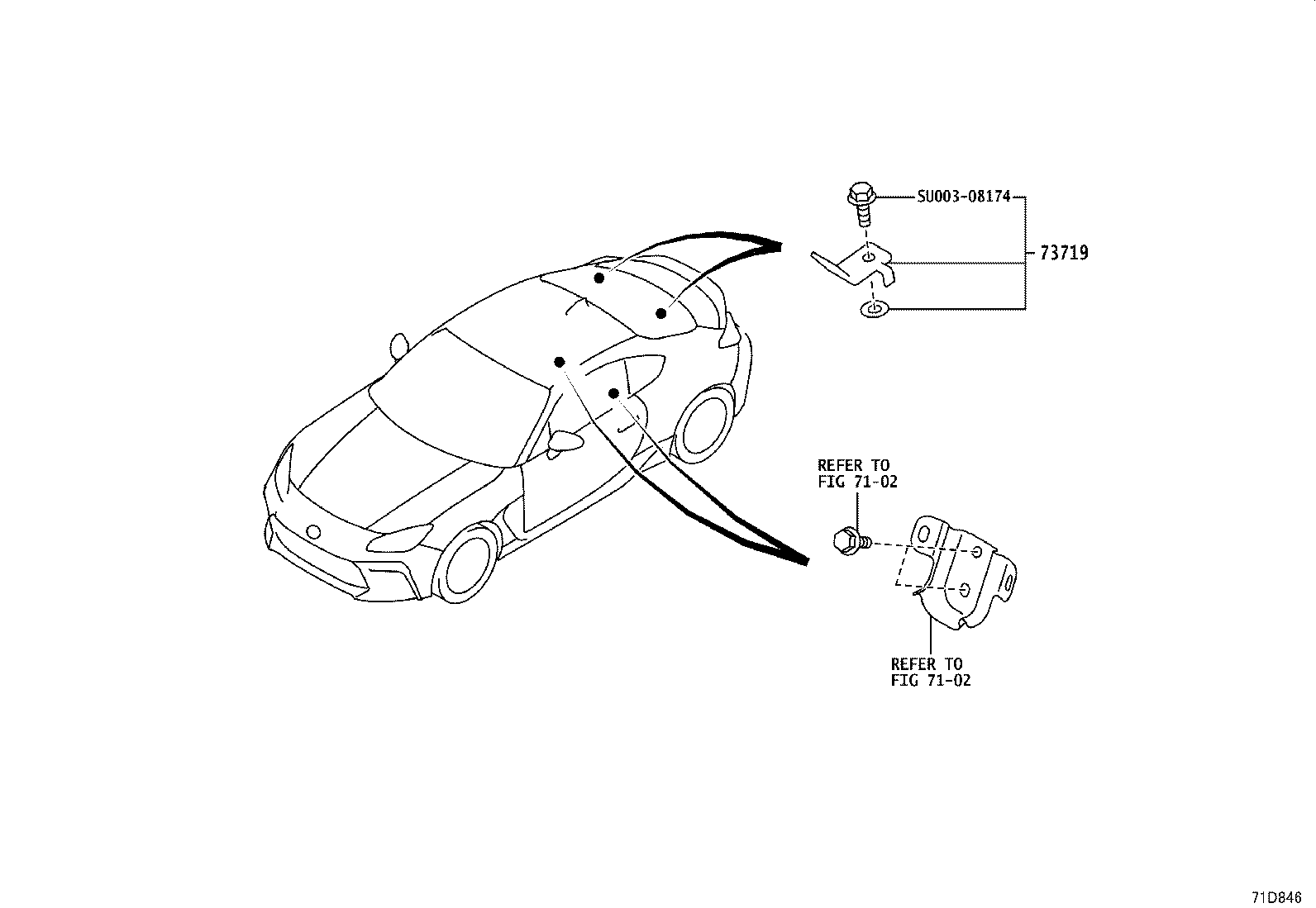

Figure 71D843 71D843 2022-03 → — Figure 71E188 71E188 2022-03 → — Figure 71D845 71D845 2022-03 → — Figure 71D846 71D846 2022-03 → —

Part groups

PNCDescription
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73719 Bracket, Child Restraint Seat Tether Anchor
73731B Cover, Child Restraint Seat, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
