Toyota GR 86
2022-03 → present · chassis ZN8 · catalogue 264230 · Europe
Supported model
Data version 2024-10
Caution Plate (EXTERIOR & INTERIOR)
11 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

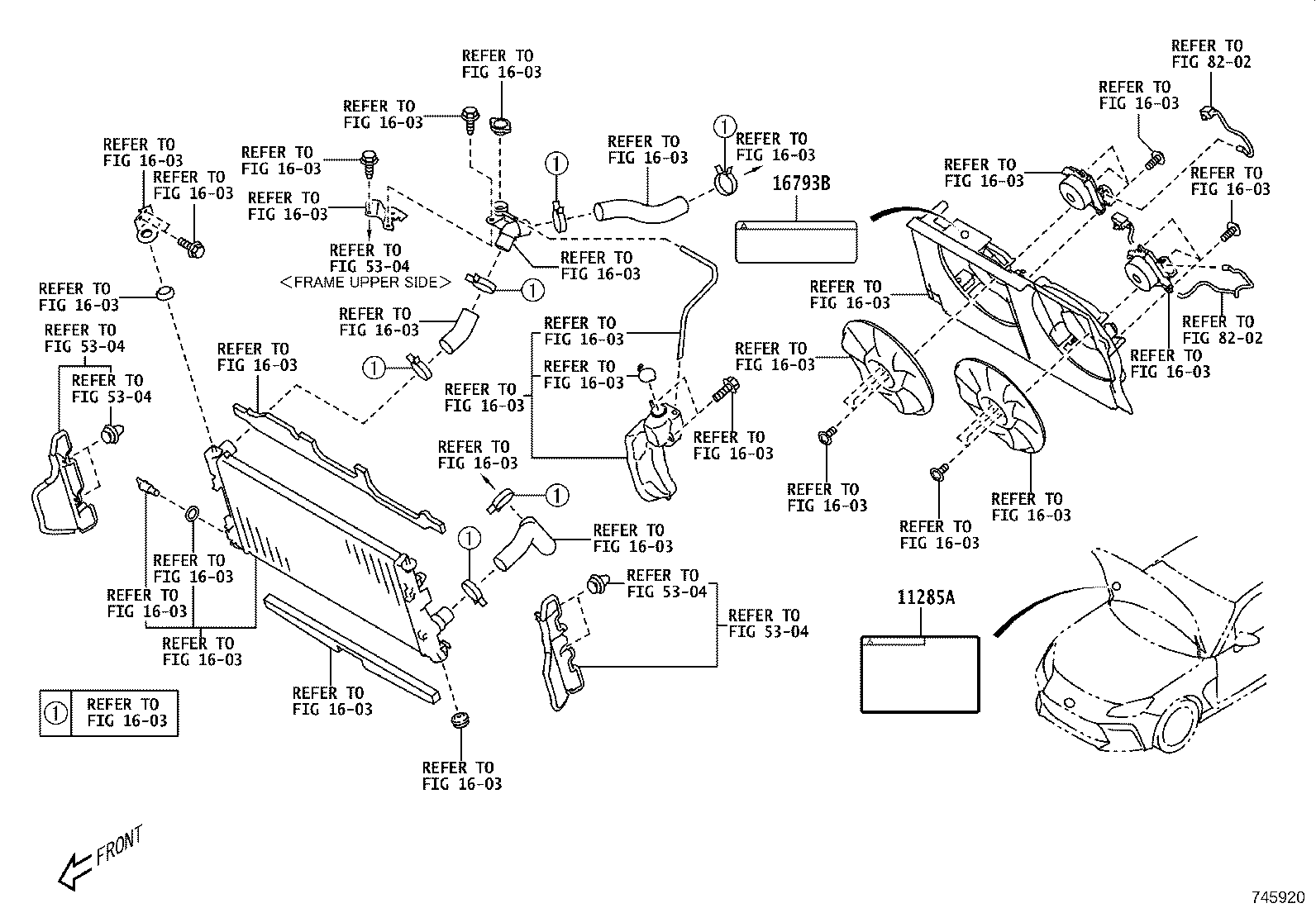

| 11285A | Label, Coolant System Notice |
| 11298B | Label, Emission Control Information |
| 16793B | Label, Cooling Fan Information |

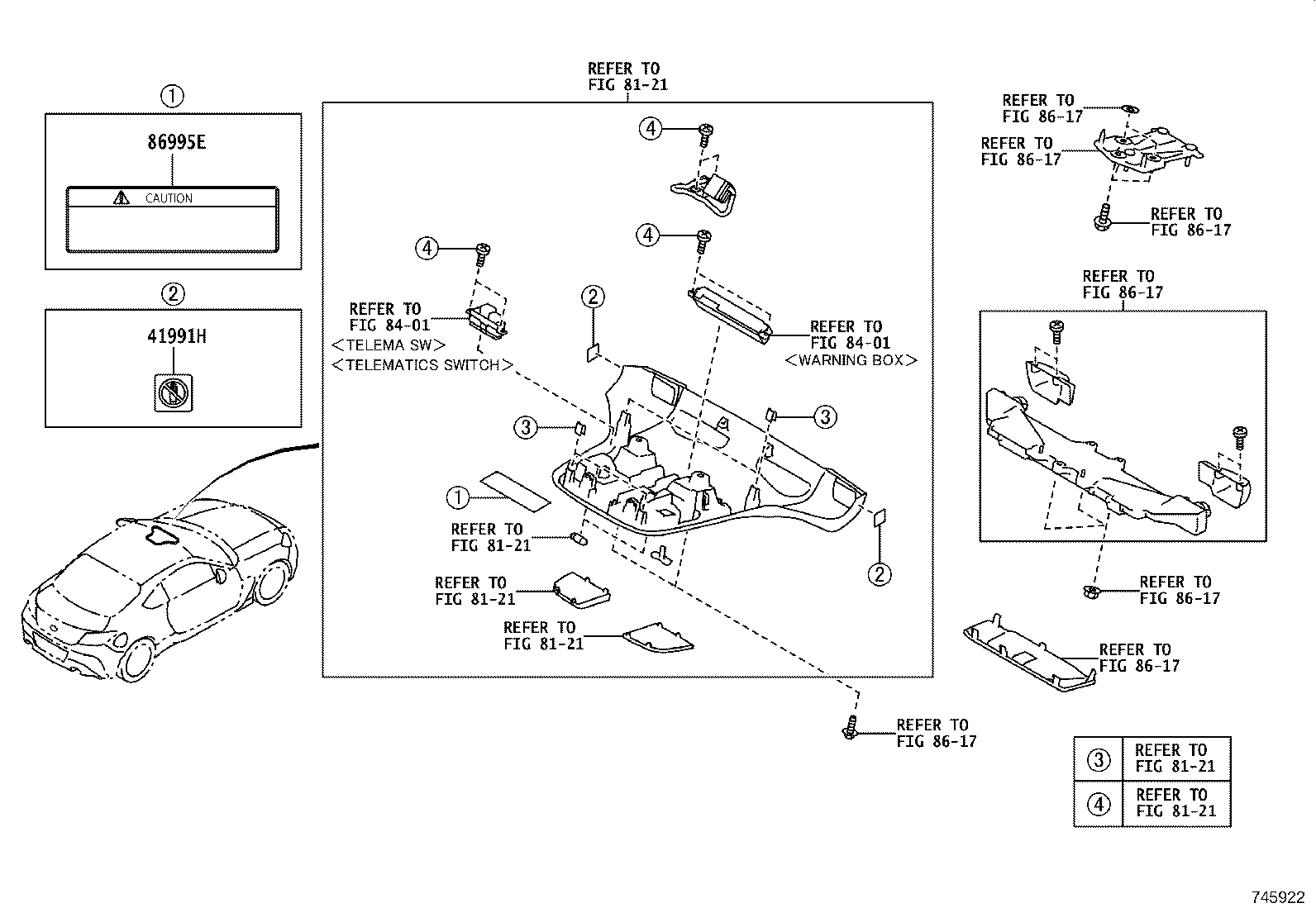

| 41991H | Label, Caution, NO.2 |

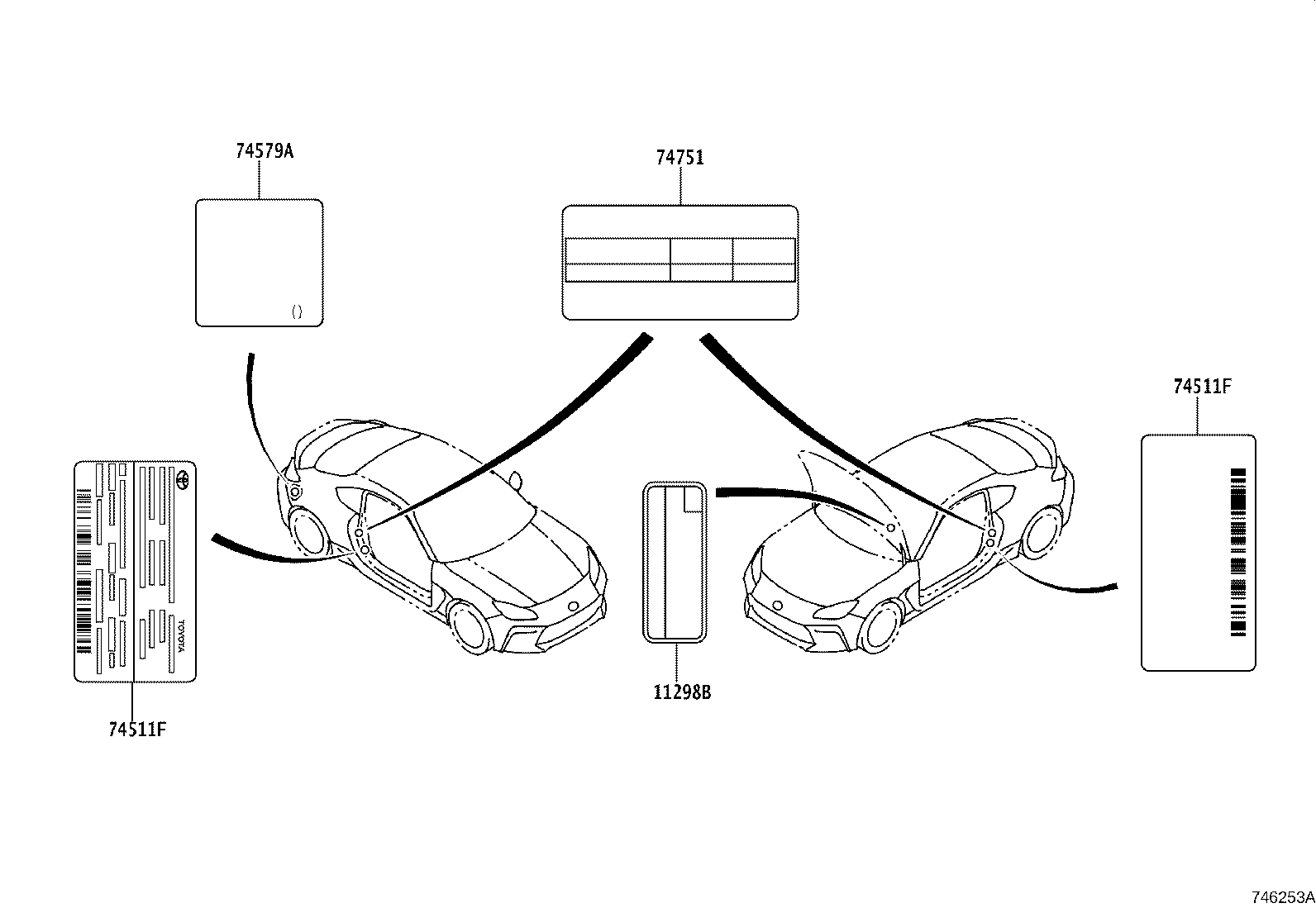

| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |

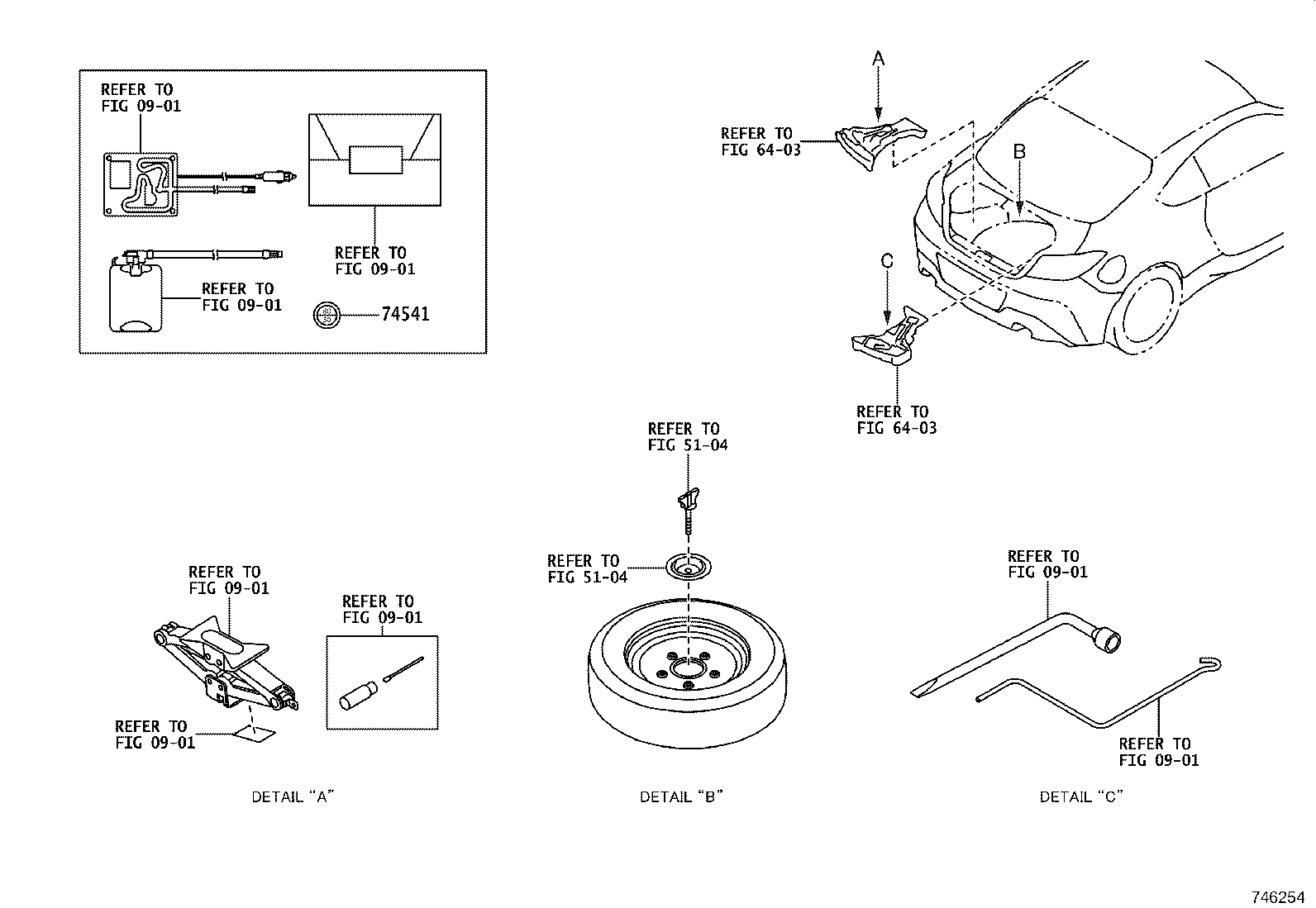

| 74541 | Plate, Tire Pressure Caution |
| 74579A | Label, Unleaded Fuel Information |

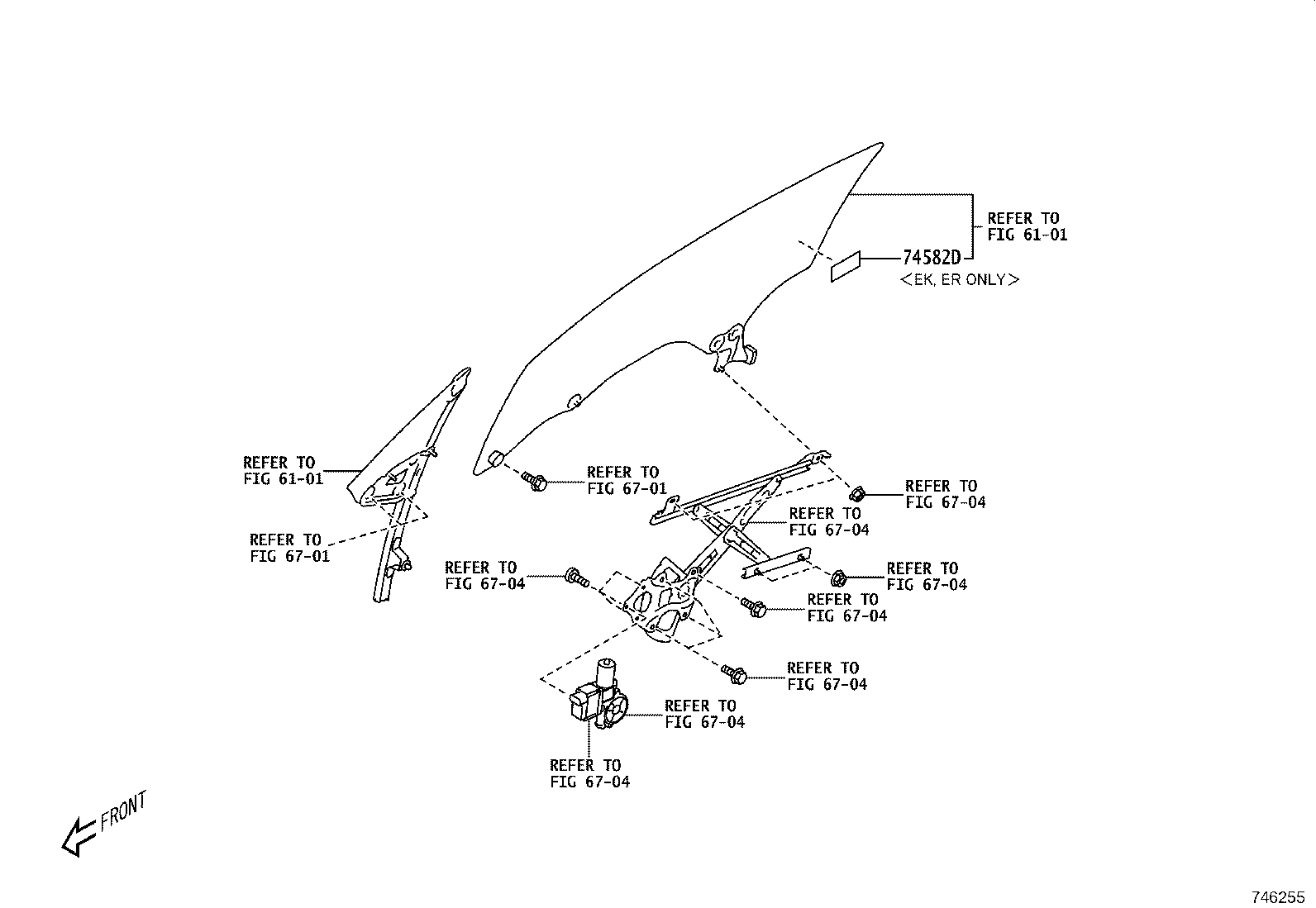

| 74582D | Label, Safety Caution |
| 74751 | Label, Tire Pressure Information |
| 86995E | Label, Caution |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
