Toyota GR 86

2022-03 → present · chassis ZN8 · catalogue 264230 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

22 part groups · 4 illustrations

Illustrations

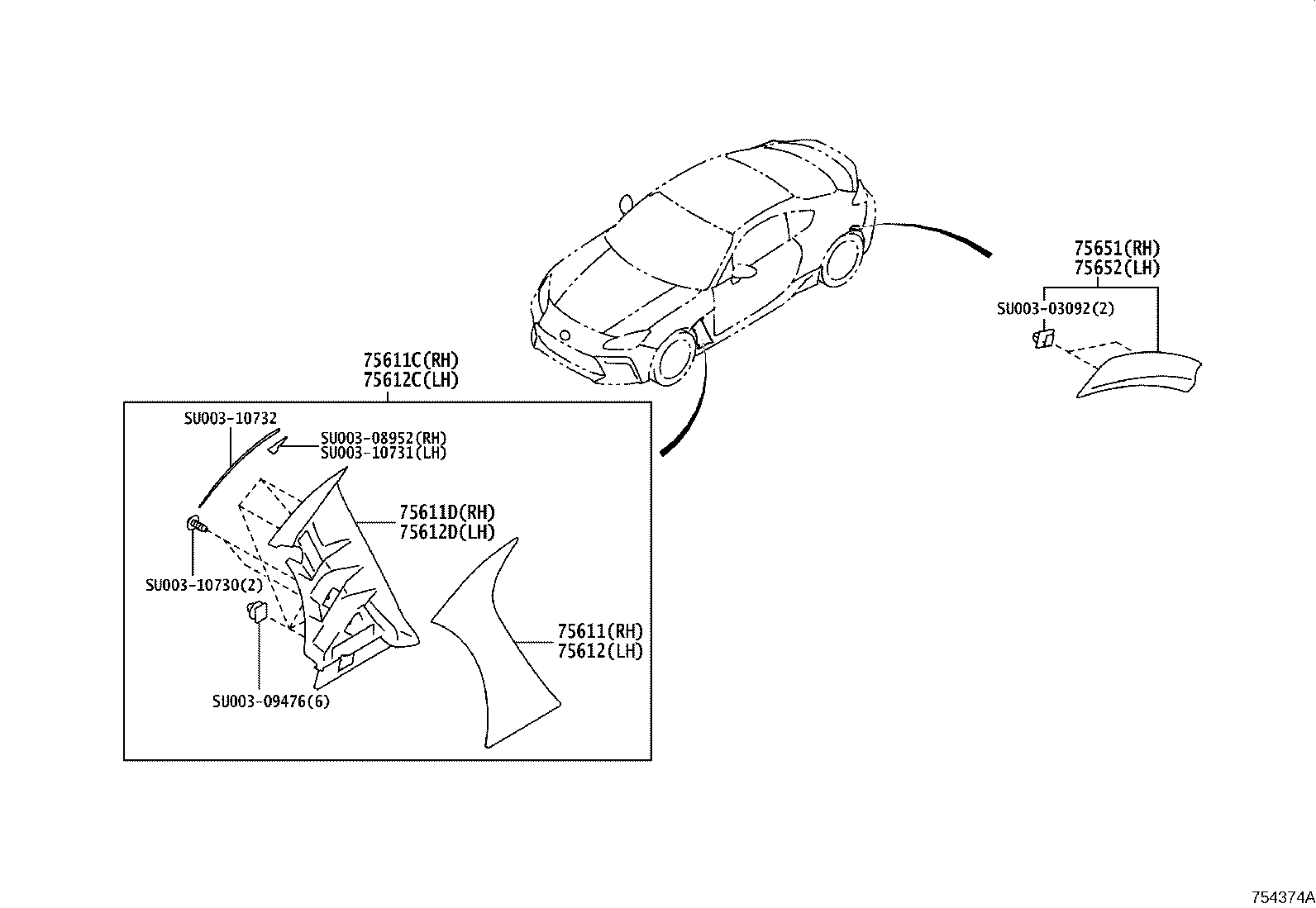

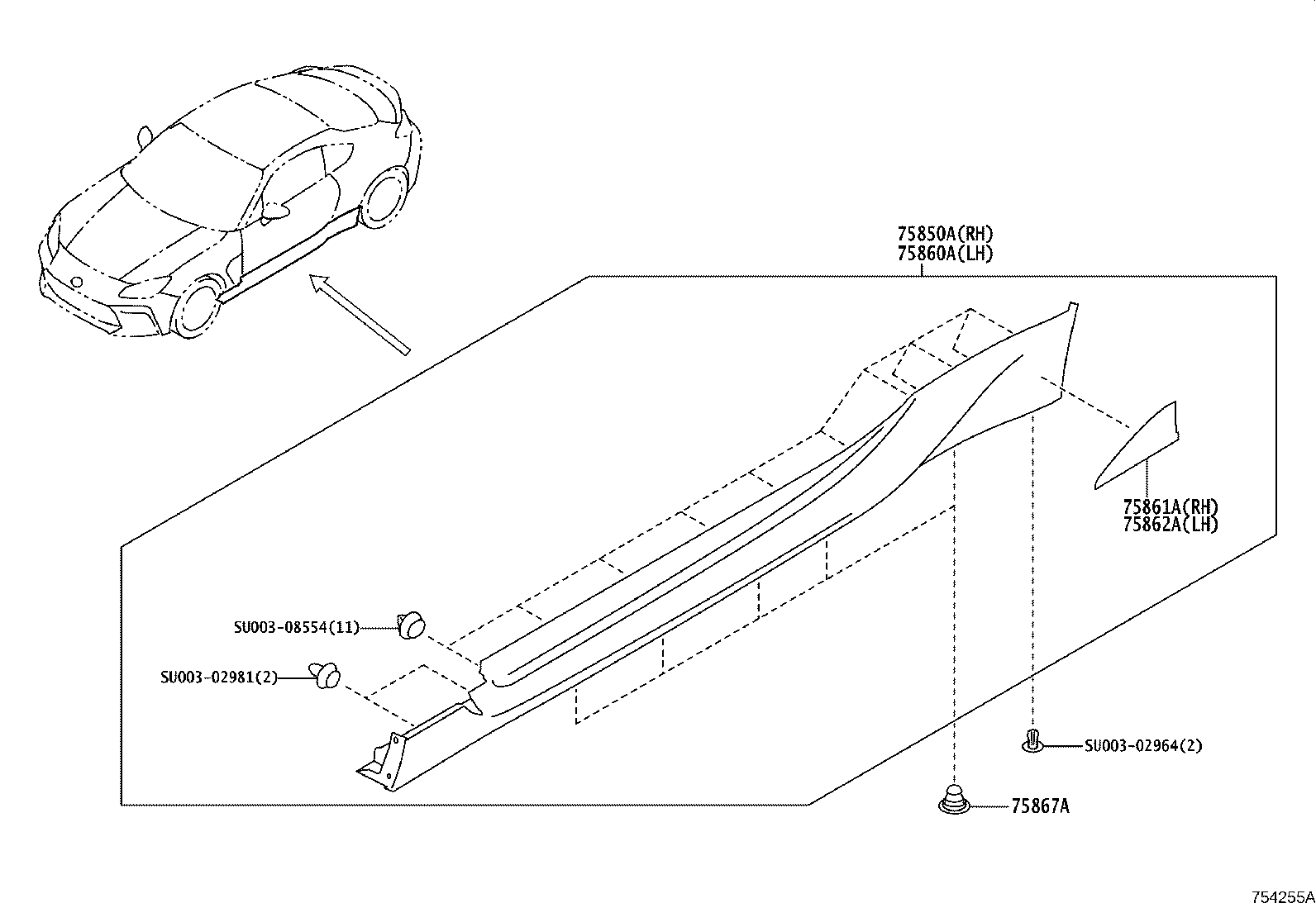

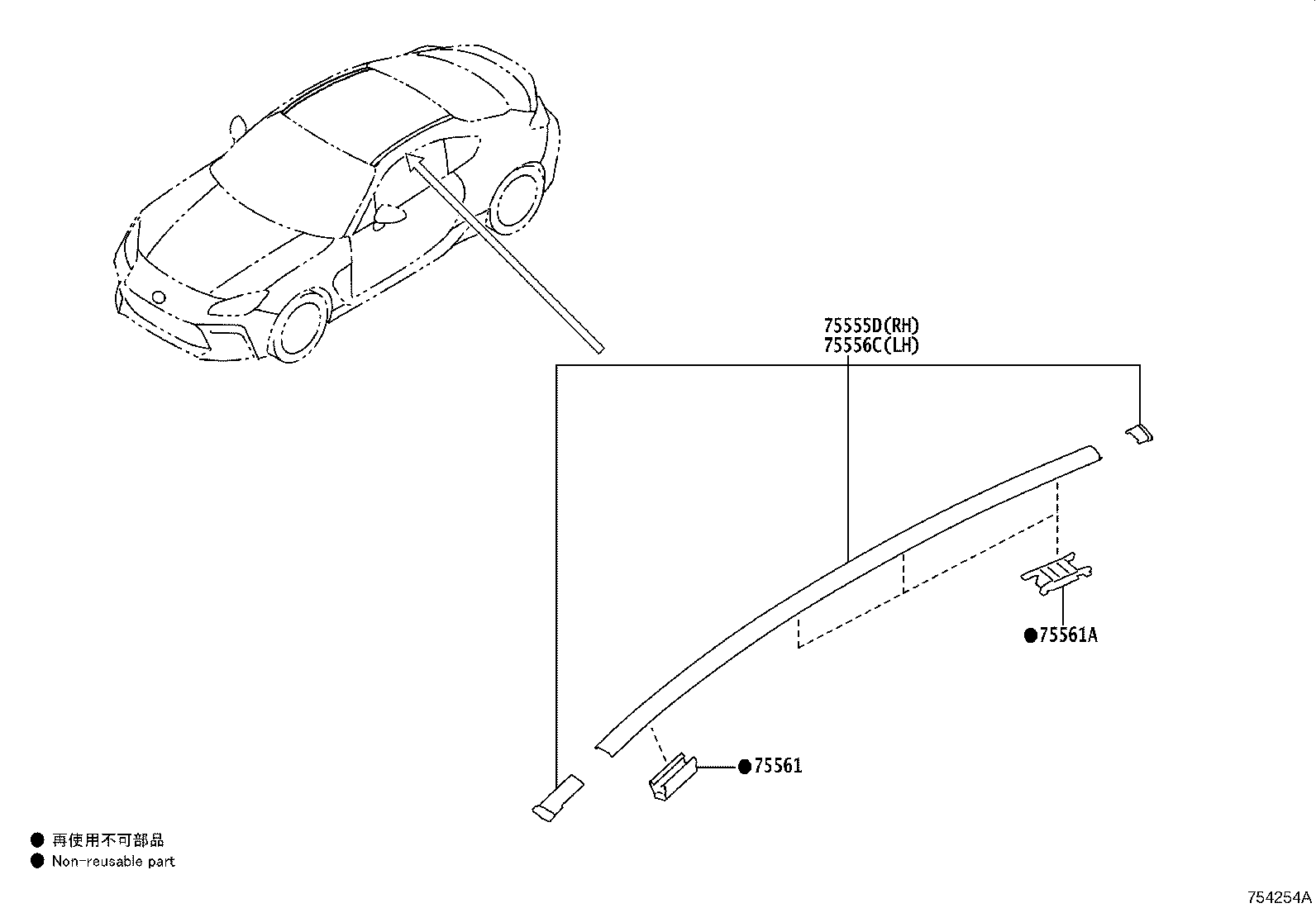

Figure 754252A 754252A 2022-03 → — Figure 754374A 754374A 2022-03 → — Figure 754254A 754254A 2022-03 → — Figure 754255A 754255A 2022-03 → —

Part groups

PNCDescription
67863F Weatherstrip, Front Door, NO.2 RH
67864F Weatherstrip, Front Door, NO.2 LH
67869M Clip, Door Weatherstrip
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75561A Clip, Roof Drip Side Finish Moulding
75611 Moulding, Side Panel Front, RH
75611C Moulding, Front Fender, Outside RH
75611D Moulding, Front Fender, Outside Front RH
75612 Moulding, Side Panel Front, LH
75612C Moulding, Front Fender, Outside LH
75612D Moulding, Front Fender, Outside Front LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75850A Moulding Assy, Body Rocker Panel, RH
75860A Moulding Assy, Body Rocker Panel, LH
75861A Protector, Rocker Panel Moulding, NO.1
75862A Protector, Rocker Panel Moulding, NO.2
75867A Clip, Rocker Panel Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
