Toyota GR 86

2022-03 → present · chassis ZN8 · catalogue 264230 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

6 part groups · 2 illustrations

Illustrations

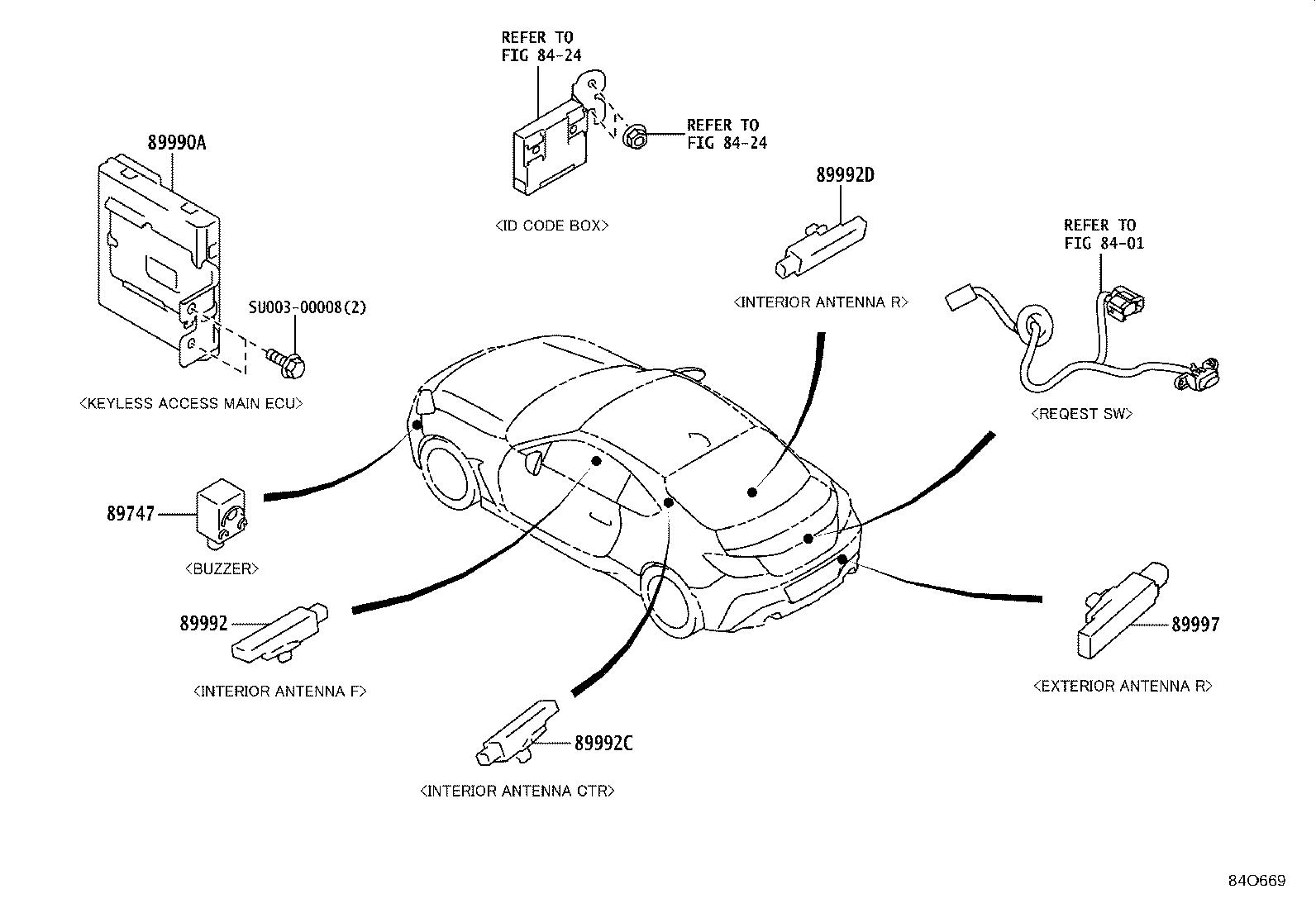

Figure 84O668 84O668 2022-03 → — Figure 84O669 84O669 2022-03 → —

Part groups

PNCDescription
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89992 Oscillator, Indoor Electrical Key
89992C Oscillator, Indoor Electrical Key, NO.2
89992D Oscillator, Indoor Electrical Key, NO.3
89997 Antenna, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
