Toyota GR 86
2022-03 → present · chassis ZN8 · catalogue 264230 · Europe
Supported model
Data version 2024-10
Windshield Wiper

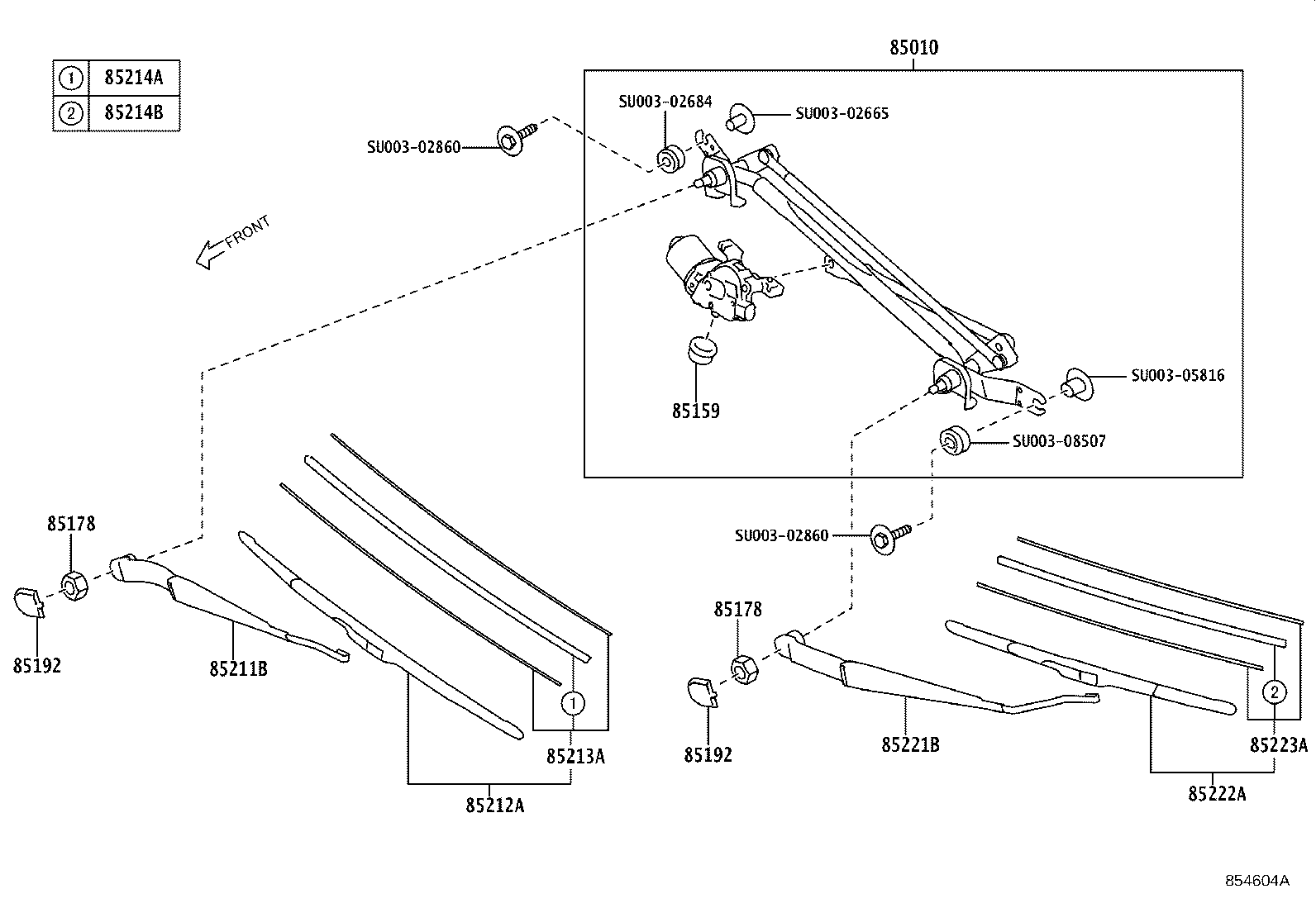

12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85010 | Motor & Link Assy, FR Wiper |
| 85159 | Cushion, Windshield Wiper Motor |
| 85178 | Nut (FOR FRONT WIPER ARM SETTING) |
| 85192 | Cover, Windshield Wiper Arm |
| 85211B | Arm, Front Wiper, RH |
| 85212A | Blade, FR Wiper, RH |
| 85213A | Rubber, Wiper Blade, RH |
| 85214A | Rubber, Wiper, RH |
| 85214B | Rubber, Wiper, LH |
| 85221B | Arm, Front Wiper, LH |
| 85222A | Blade, FR Wiper, LH |
| 85223A | Rubber, Front Wiper Blade, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
