Toyota GR 86
2022-03 → present · chassis ZN8 · catalogue 264230 · Europe
Supported model
Data version 2024-10
Speaker

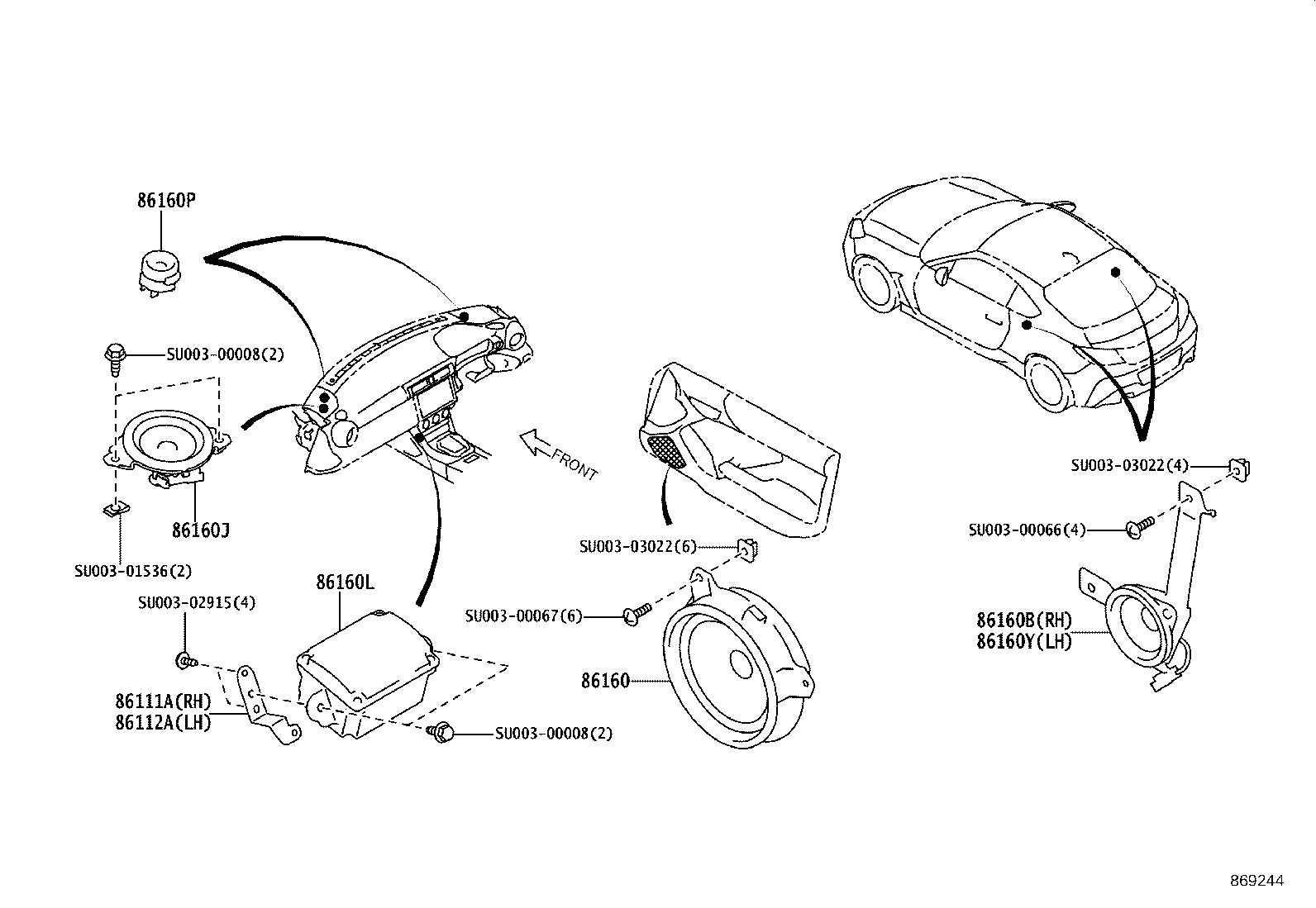

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86111A | Bracket, Stereo Speaker, RH |
| 86112A | Bracket, Stereo Speaker, LH |
| 86160 | Speaker Assy, Front NO.1 |
| 86160B | Speaker Assy, Rear |
| 86160J | Speaker Assy, Front NO.3 |
| 86160L | Speaker Assy, Front NO.4 |
| 86160P | Speaker Assy, Front NO.2 |
| 86160Y | Speaker Assy, Rear NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
