Toyota GR 86
2022-03 → present · chassis ZN8 · catalogue 264230 · Europe
Supported model
Data version 2024-10
Heating & Air Conditioning - Control & Air Duct
12 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

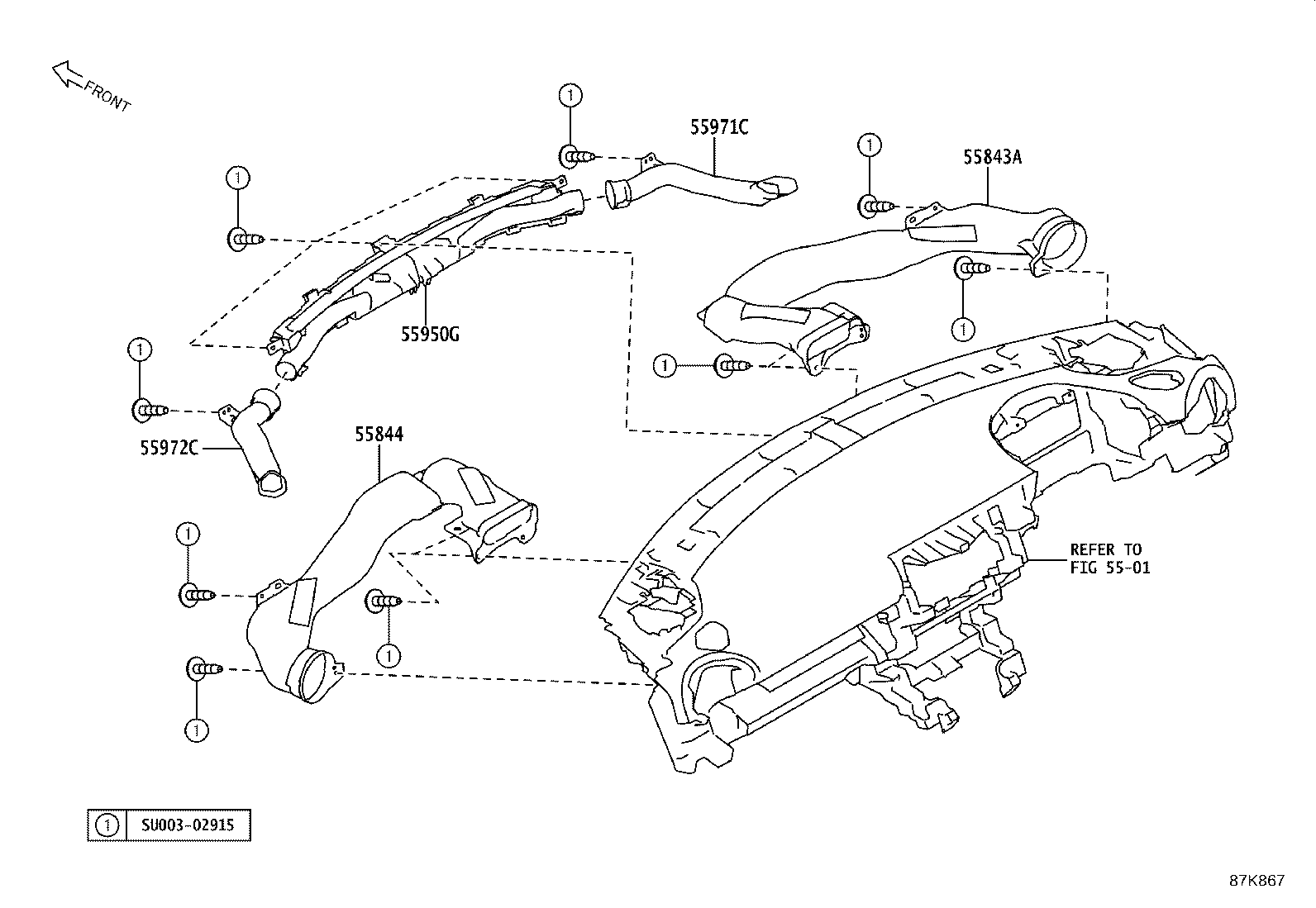

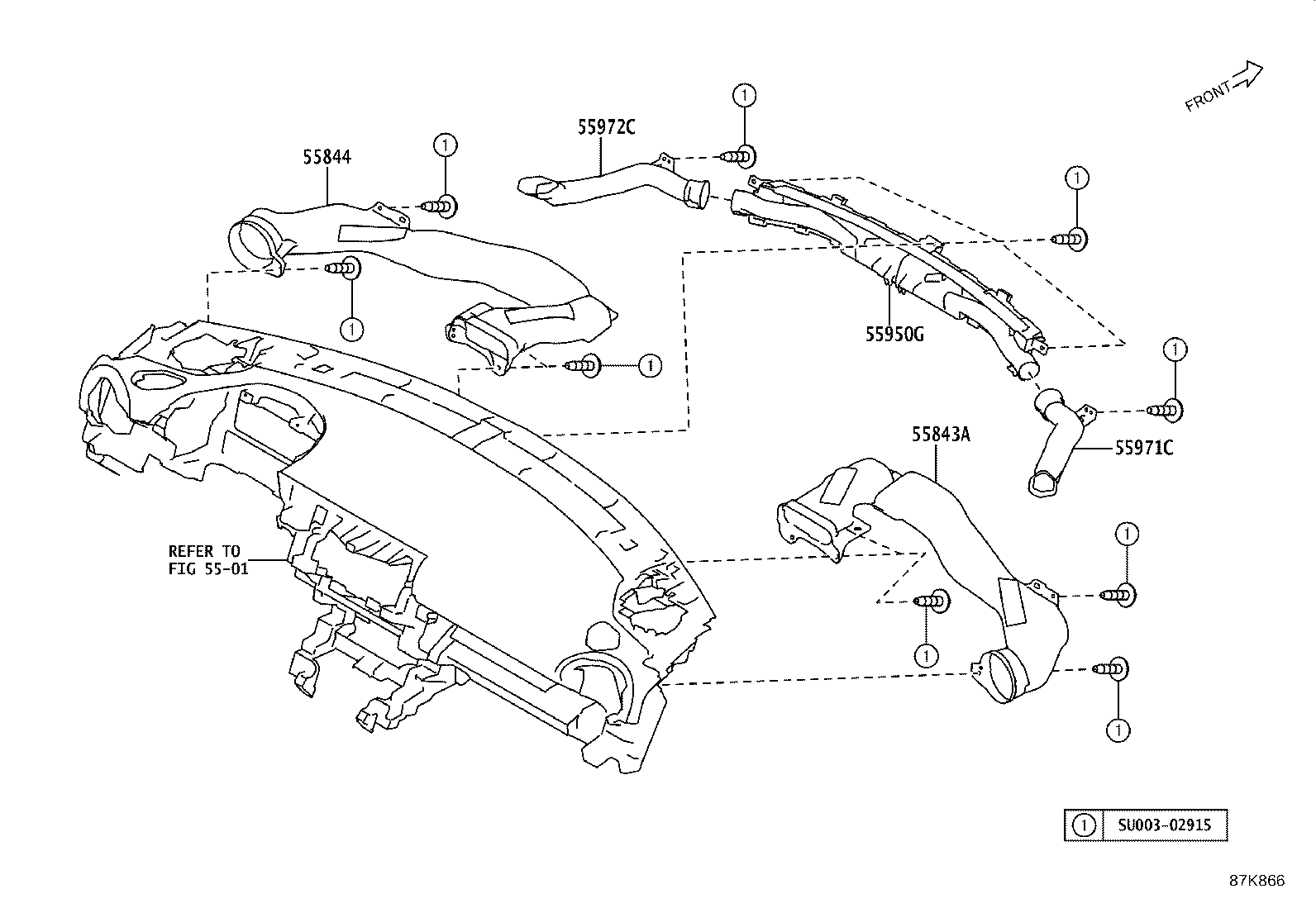

| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55900 | Control Assy, Air Conditioner |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |

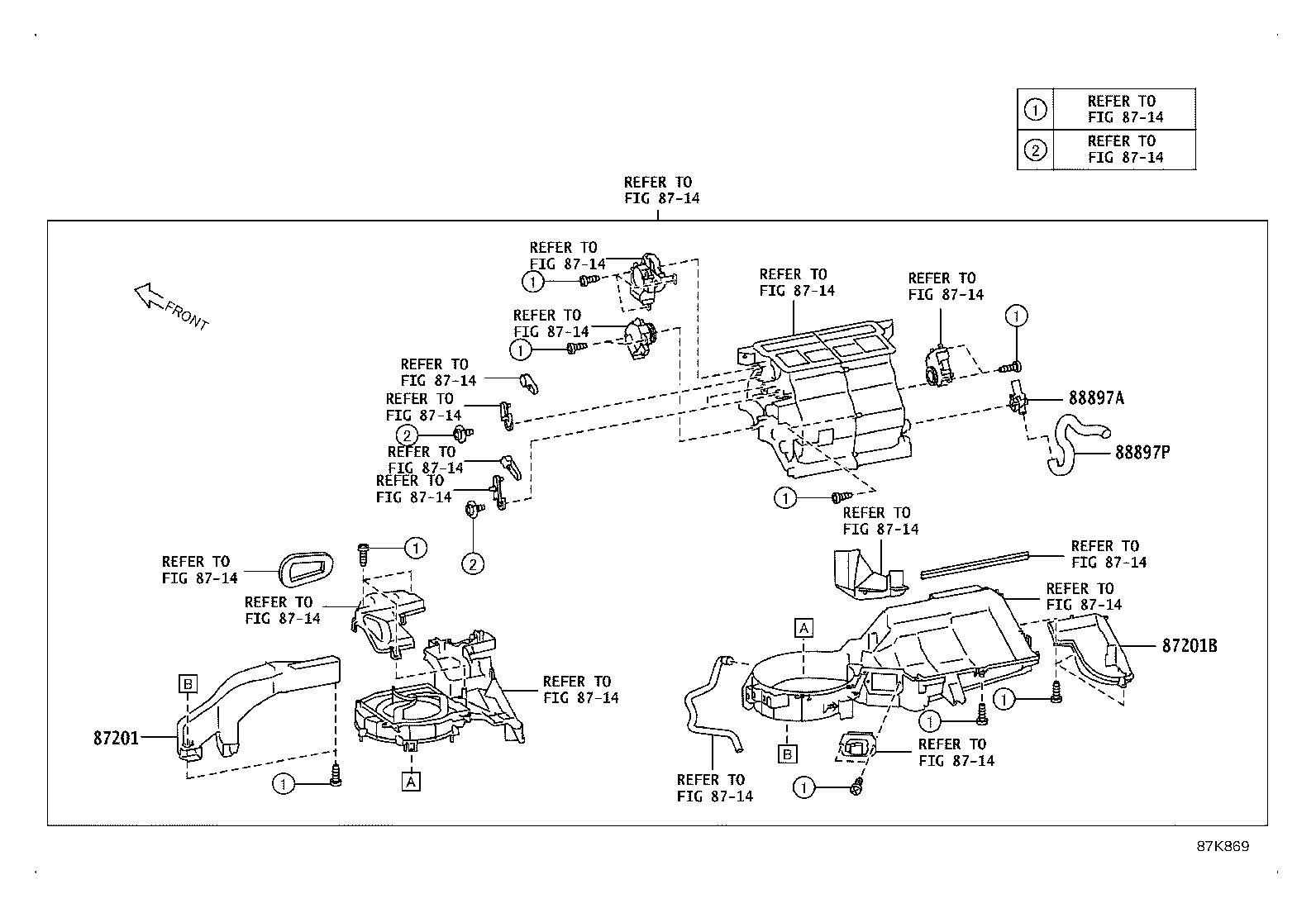

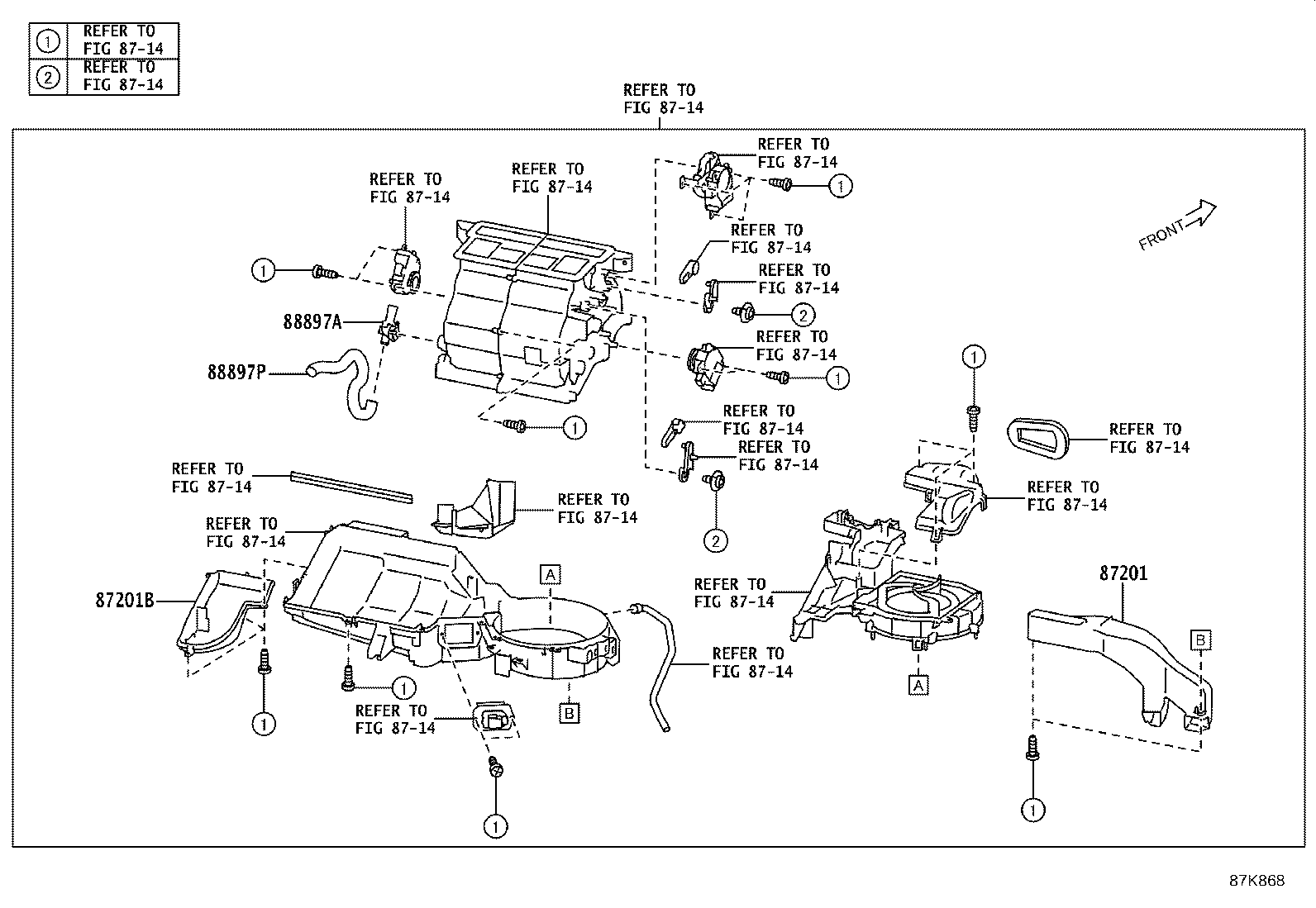

| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201B | Duct Sub-assy, Air, NO.2 |

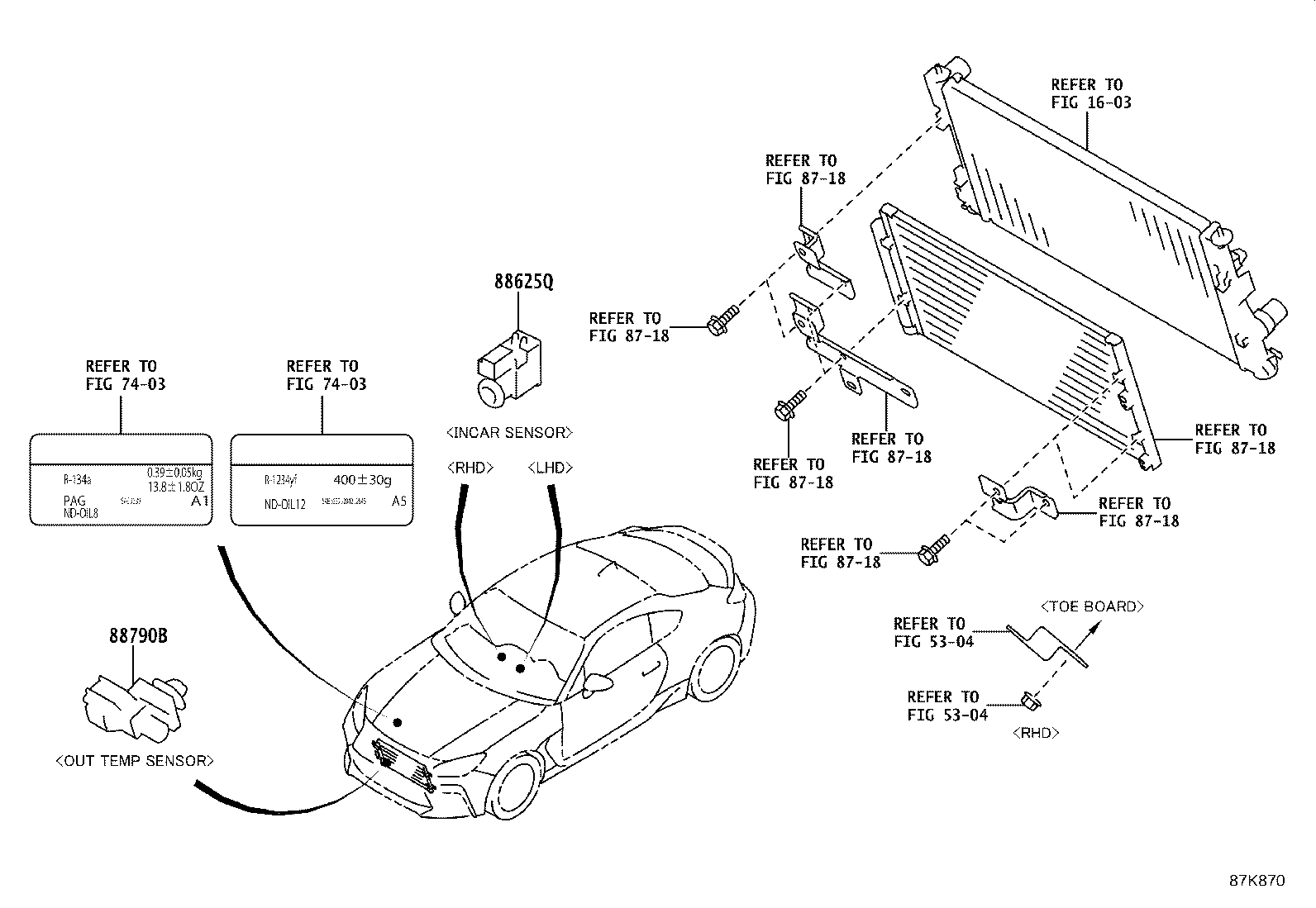

| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88790B | Thermistor Assy |
| 88897A | Pipe, Aspirator |
| 88897P | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
