Heating & Air Conditioning - Cooler Piping

13 part groups · 3 illustrations

Illustrations

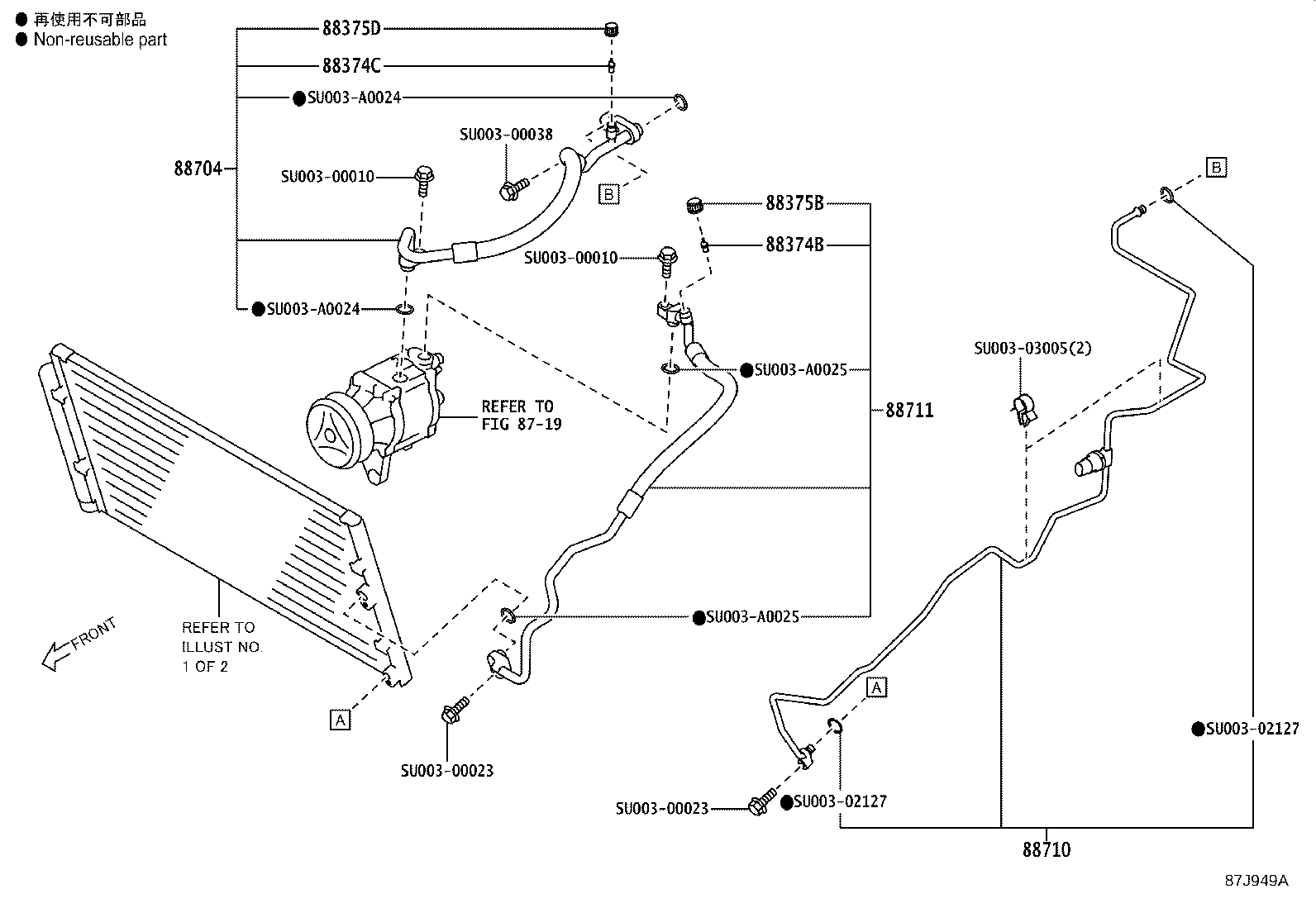

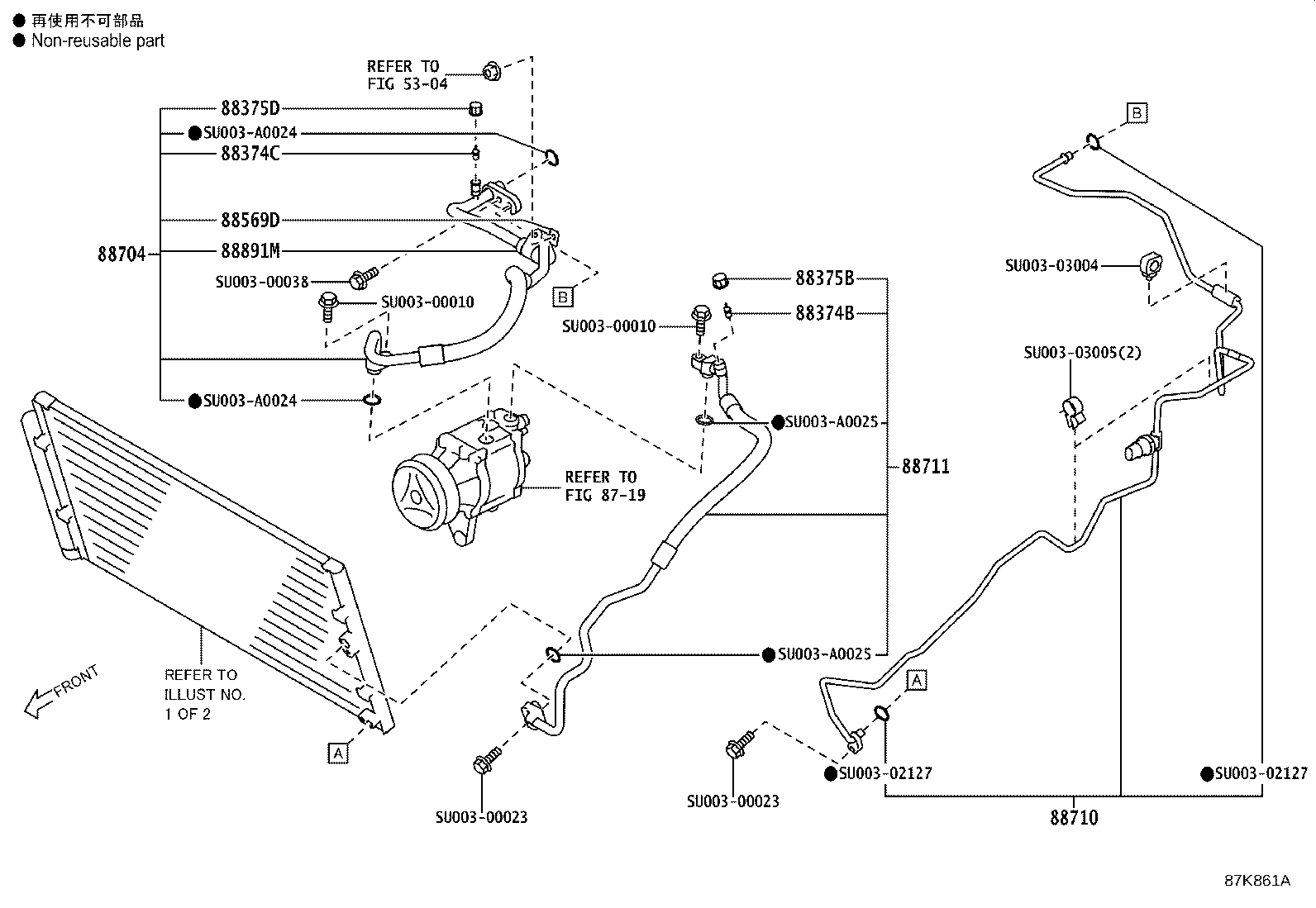

Figure 87K860 87K860 2022-03 → — Figure 87K861A 87K861A 2022-03 → — Figure 87J949B 87J949B 2022-03 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88463C Bracket, Cooler Condenser, NO.4
88569D Clamp, Cooler, NO.1
88704 Hose Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88891M Packing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
