Toyota GR 86

2022-03 → present · chassis ZN8 · catalogue 264230 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

6 part groups · 2 illustrations

Illustrations

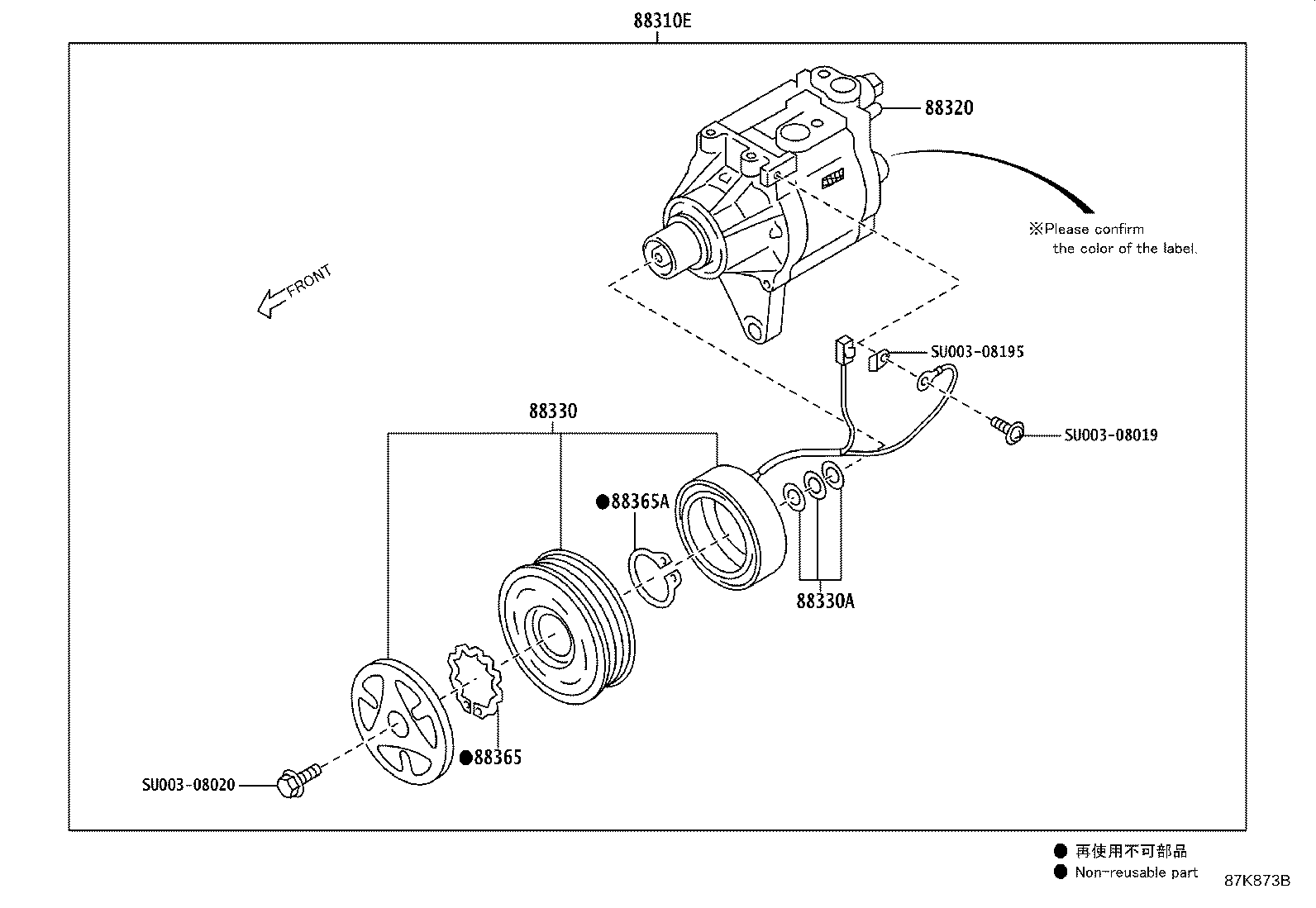

Figure 87K872A 87K872A 2022-03 → — Figure 87K873B 87K873B 2022-03 → —

Part groups

PNCDescription
88310E Compressor, W/Magnet Clutch
88320 Compressor Assy, Cooler
88330 Clutch Assy, Magnet
88330A Washer (FOR MAGNET CLUTCH)
88365 Ring, Snap
88365A Ring, Snap (FOR COMPRESSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
