Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

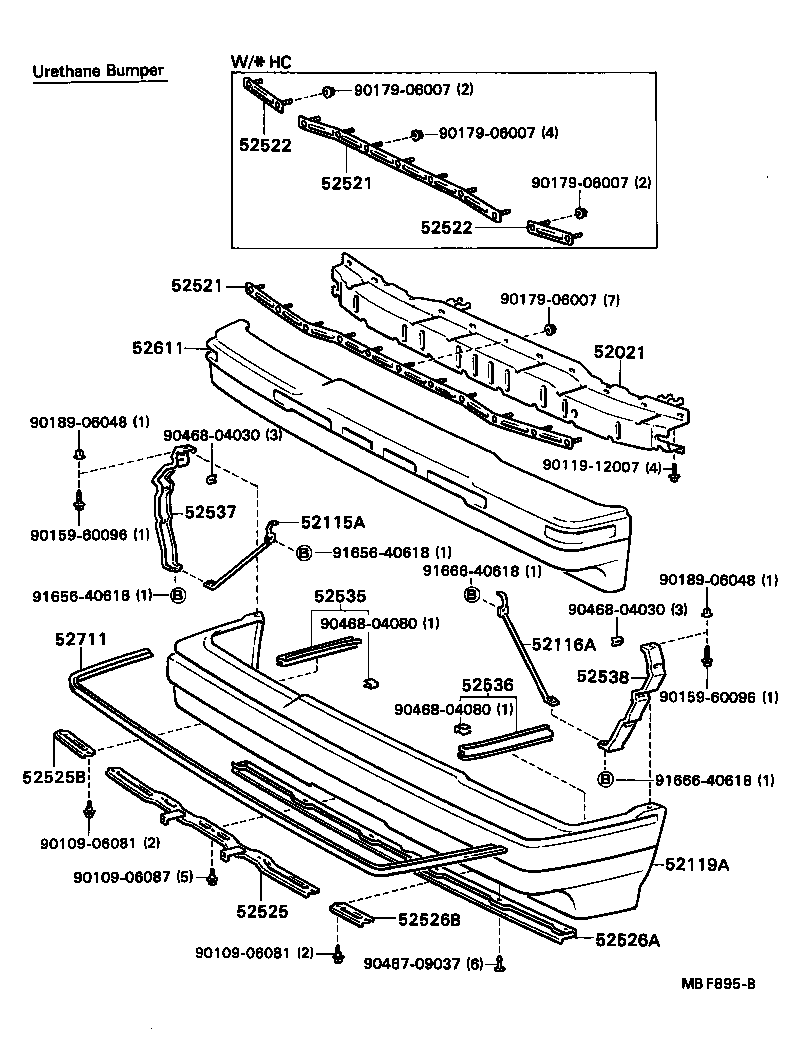

Exploded illustration MBF895B 9017906007 — not listed in this catalogue 9017906007 — not listed in this catalogue 52522 — RETAINER, FRONT BUMPER UPPER SIDE (1 parts) 52521 — RETAINER, FRONT BUMPER, UPPER CENTER (3 parts) 9017906007 — not listed in this catalogue 52522 — RETAINER, FRONT BUMPER UPPER SIDE (1 parts) 52521 — RETAINER, FRONT BUMPER, UPPER CENTER (3 parts) 9017906007 — not listed in this catalogue 52611 — ABSORBER, FRONT BUMPER ENERGY (3 parts) 52021 — REINFORCEMENT SUB-ASSY, FRONT BUMPER (3 parts) 9018906048 — not listed in this catalogue 9046804030 — not listed in this catalogue 9011912007 — not listed in this catalogue 52537 — RETAINER, FRONT BUMPER END, RH (3 parts) 52115A — SUPPORT, FRONT BUMPER SIDE, RH (3 parts) 9015960096 — not listed in this catalogue 9165640618 — not listed in this catalogue 9166640618 — not listed in this catalogue 9018906048 — not listed in this catalogue 52535 — RETAINER, FRONT BUMPER SIDE, RH (3 parts) 9165640618 — not listed in this catalogue 9046804030 — not listed in this catalogue 9046804080 — not listed in this catalogue 52711 — MOULDING, FRONT BUMPER (7 parts) 52116A — SUPPORT, FRONT BUMPER SIDE, LH (3 parts) 52538 — RETAINER, FRONT BUMPER END, LH (3 parts) 52536 — RETAINER, FRONT BUMPER SIDE, LH (3 parts) 9015960096 — not listed in this catalogue 9046804080 — not listed in this catalogue 52525B — RETAINER, FRONT BUMPER, LOWER SIDE RH (2 parts) 9166640618 — not listed in this catalogue 9010906081 — not listed in this catalogue 52119A — COVER, FRONT BUMPER (16 parts) 9010906087 — not listed in this catalogue 52525 — RETAINER, FRONT BUMPER, LOWER CENTER (3 parts) 52526B — RETAINER, FRONT BUMPER, LOWER SIDE LH (2 parts) 52526A — RETAINER, FRONT BUMPER, LOWER NO.1 (6 parts) 9010906081 — not listed in this catalogue 9046709037 — not listed in this catalogue
MBF895B · 18 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
64 parts on this figure
Part number Description Fitment Price
52021 — Reinforcement Sub-assy, Front Bumper
52021-20060 note Reinforcement Sub-assy, Front Bumper
1985-08 → 1986-08 ended
ST150 GL TH —
52021-20060 note Reinforcement Sub-assy, Front Bumper
1983-10 → 1985-08 ended
AT151,CT150,ST150 DX,GL,XL —
52021-20130 note Reinforcement Sub-assy, Front Bumper
1985-08 → 1987-11 ended
AT151,CT150,ST15# EUR,GEN,SAA —
52115A — Support, Front Bumper Side, RH
52115-20120 Support, Front Bumper Side, RH
1983-10 → 1985-08 ended
AT151,CT150,ST150 —
52115-20120 Support, Front Bumper Side, RH
1985-08 → 1986-08 ended
AT151,ST150 TH —
52115-20180 Support, Front Bumper Side, RH
1985-08 → 1987-11 ended
AT151,CT150,ST15# EUR,GEN,SAA —
52116A — Support, Front Bumper Side, LH
52116-20100 Support, Front Bumper Side, LH
1983-10 → 1985-08 ended
AT151,CT150,ST150 —
52116-20100 Support, Front Bumper Side, LH
1985-08 → 1986-08 ended
AT151,ST150 TH —
52116-20160 Support, Front Bumper Side, LH
1985-08 → 1987-11 ended
AT151,CT150,ST15# EUR,GEN,SAA —
52119A — Cover, Front Bumper
52119-20100 note Cover, Front Bumper
1983-10 → 1985-08 ended
AT151,CT150,ST150 DX,GL,XL —
52119-20120 note Cover, Front Bumper
1983-10 → 1985-08 ended
AT151,CT150,ST150 SED (EUR,GEN) —
52119-20120 note Cover, Front Bumper
1985-08 → 1986-08 ended
AT151,ST150 XL TH —
52119-20130 note Cover, Front Bumper
1983-10 → 1985-08 ended
AT151,CT150 SED EUR —
52119-20140 note Cover, Front Bumper
1983-10 → 1985-08 ended
AT151,CT150 EUR —
52119-20260 note Cover, Front Bumper
1985-08 → 1987-11 ended
AT151,CT150 SED EUR —
52119-20260 note Cover, Front Bumper
1985-08 → 1987-11 ended
AT151,CT150,ST150 SED GEN —
52119-20270 note Cover, Front Bumper
1985-08 → 1987-11 ended
AT151,CT150 SED EUR —
52119-20280 note Cover, Front Bumper
1985-08 → 1987-11 ended
AT151,CT150,ST15# EUR,GEN,SAA —
52119-20300 note Cover, Front Bumper
1985-08 → 1987-11 ended
AT151,CT150,ST150 EUR —
52119-20901 note Cover, Front Bumper
1983-10 → 1985-08 ended
AT151,CT150,ST150 GL —
52119-20901 note Cover, Front Bumper
1985-08 → 1986-08 ended
ST150 GL TH —
52119-20902 note Cover, Front Bumper
1983-10 → 1985-08 ended
AT151,CT150 GL EUR —
52119-20908 note Cover, Front Bumper
1985-08 → 1987-11 ended
AT151,ST15# GL GEN —
52119-20908 note Cover, Front Bumper
1985-08 → 1987-11 ended
AT151,CT150,ST150 EUR,SAA —
52119-20909 note Cover, Front Bumper
1985-08 → 1987-11 ended
AT151,CT150,ST150 EUR —
52521 — Retainer, Front Bumper, Upper Center
52521-20030 note Retainer, Front Bumper, Upper Center
1983-10 → 1987-11 ended
AT151,CT150,ST15# (DX,GL,XL) (EUR,GEN,SAA) —
52521-20030 note Retainer, Front Bumper, Upper Center
1985-08 → 1987-11 ended
ST150 GL TH —
52521-20040 note Retainer, Front Bumper, Upper Center
1983-10 → 1987-11 ended
AT151,CT150,ST150 EUR —
52522 — Retainer, Front Bumper Upper Side
52522-20040 note Retainer, Front Bumper Upper Side
1983-10 → 1987-11 ended
AT151,CT150,ST150 EUR —
52525 — Retainer, Front Bumper, Lower Center
52506-20030 note Retainer, Front Bumper, Lower Center
1983-10 → 1985-08 ended
AT151,CT150,ST150 DX,GL,XL —
52506-20030 note Retainer, Front Bumper, Lower Center
1985-08 → 1986-08 ended
ST150 GL TH —
52506-20080 note Retainer, Front Bumper, Lower Center
1985-08 → 1987-11 ended
AT151,CT150,ST15# EUR,GEN,SAA —
52525B — Retainer, Front Bumper, Lower Side RH
52526-14030 note Retainer, Front Bumper, Lower Side RH
1985-08 → 1986-08 ended
ST150 GL TH —
52526-14030 note Retainer, Front Bumper, Lower Side RH
1983-10 → 1987-11 ended
AT151,CT150,ST15# (DX,GL,XL) (EUR,GEN,SAA) —
52526A — Retainer, Front Bumper, Lower NO.1
52526-20020 note Retainer, Front Bumper, Lower NO.1
1985-08 → 1986-08 ended
ST150 GL TH —
52526-20020 note Retainer, Front Bumper, Lower NO.1
1983-10 → 1987-11 ended
AT151,CT150,ST15# (DX,GL,XL) (EUR,GEN,SAA) —
52565-12040 note Retainer, Front Bumper, Lower NO.1
1983-10 → 1985-08 ended
AT151,CT150,ST150 SED (EUR,GEN) —
52565-12040 note Retainer, Front Bumper, Lower NO.1
1985-08 → 1986-08 ended
AT151,ST150 XL TH —
52565-12040 note Retainer, Front Bumper, Lower NO.1
1985-08 → 1987-11 ended
AT151,CT150 SED EUR —
52565-12040 note Retainer, Front Bumper, Lower NO.1
1985-08 → 1987-11 ended
AT151,CT150,ST150 SED GEN —
52526B — Retainer, Front Bumper, Lower Side LH
52526-14030 note Retainer, Front Bumper, Lower Side LH
1985-08 → 1986-08 ended
ST150 GL TH —
52526-14030 note Retainer, Front Bumper, Lower Side LH
1983-10 → 1987-11 ended
AT151,CT150,ST15# (DX,GL,XL) (EUR,GEN,SAA) —
52535 — Retainer, Front Bumper Side, RH
52535-20010 note Retainer, Front Bumper Side, RH
1983-10 → 1985-08 ended
AT151,CT150,ST150 DX,GL,XL —
52535-20010 note Retainer, Front Bumper Side, RH
1985-08 → 1986-08 ended
ST150 GL TH —
52535-20020 note Retainer, Front Bumper Side, RH
1985-08 → 1987-11 ended
AT151,CT150,ST15# EUR,GEN,SAA —
52536 — Retainer, Front Bumper Side, LH
52536-20010 note Retainer, Front Bumper Side, LH
1983-10 → 1985-08 ended
AT151,CT150,ST150 DX,GL,XL —
52536-20010 note Retainer, Front Bumper Side, LH
1985-08 → 1986-08 ended
ST150 GL TH —
52536-20020 note Retainer, Front Bumper Side, LH
1985-08 → 1987-11 ended
AT151,CT150,ST15# EUR,GEN,SAA —
52537 — Retainer, Front Bumper End, RH
52537-20010 note Retainer, Front Bumper End, RH
1983-10 → 1985-08 ended
AT151,CT150,ST150 DX,GL,XL —
52537-20010 note Retainer, Front Bumper End, RH
1985-08 → 1986-08 ended
ST150 GL TH —
52537-20020 note Retainer, Front Bumper End, RH
1985-08 → 1987-11 ended
AT151,CT150,ST15# EUR,GEN,SAA —
52538 — Retainer, Front Bumper End, LH
52538-20010 note Retainer, Front Bumper End, LH
1983-10 → 1985-08 ended
AT151,CT150,ST150 DX,GL,XL —
52538-20010 note Retainer, Front Bumper End, LH
1985-08 → 1986-08 ended
ST150 GL TH —
52538-20020 note Retainer, Front Bumper End, LH
1985-08 → 1987-11 ended
AT151,CT150,ST15# EUR,GEN,SAA —
52611 — Absorber, Front Bumper Energy
52611-20030 note Absorber, Front Bumper Energy
1983-10 → 1985-08 ended
AT151,CT150,ST150 DX,GL,XL —
52611-20030 note Absorber, Front Bumper Energy
1985-08 → 1986-08 ended
ST150 GL TH —
52611-20080 note Absorber, Front Bumper Energy
1985-08 → 1987-11 ended
AT151,CT150,ST15# EUR,GEN,SAA —
52711 — Moulding, Front Bumper
52711-20030 note Moulding, Front Bumper
1983-10 → 1985-08 ended
AT151,CT150,ST150 DX,GL,XL —
52711-20030 note Moulding, Front Bumper
1985-08 → 1986-08 ended
ST150 GL TH —
52711-20040 note Moulding, Front Bumper
1983-10 → 1985-08 ended
AT151,CT150,ST150 SED (EUR,GEN) —
52711-20040 note Moulding, Front Bumper
1985-08 → 1987-11 ended
AT151,ST150 XL TH —
52711-20090 note Moulding, Front Bumper
1985-08 → 1987-11 ended
AT151,CT150 SED EUR —
52711-20090 note Moulding, Front Bumper
1985-08 → 1987-11 ended
AT151,CT150,ST150 SED GEN —
52711-20100 note Moulding, Front Bumper
1985-08 → 1987-11 ended
AT151,CT150,ST15# EUR,GEN,SAA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
