Toyota Corona/Carina 2
1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe
Discontinued model
Data version 1991-04

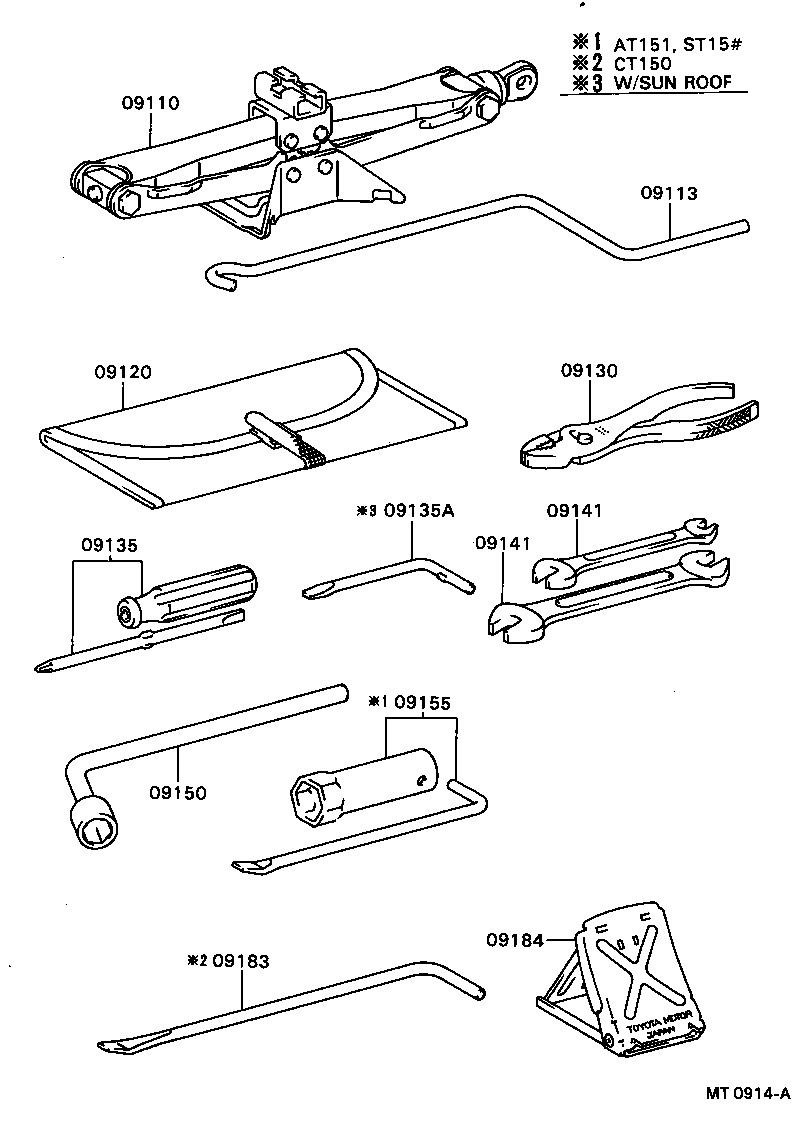

Standard Tool
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 09101 | Tool Set, Standard W/O Jack |
| 09110 | Jack Assy |
| 09113 | Handle, Jack |
| 09115 | Rod Sub-assy, Jack Handle |
| 09116 | Lever, Jack Handle |
| 09120 | Bag, Tool |
| 09130 | Pliers |
| 09135 | Driver, Screw |
| 09135A | Bit, Screw Driver |
| 09140 | Spanner Set |
| 09141 | Spanner |
| 09150 | Wrench, Hub Nut Box |
| 09155 | Wrench, Spark Plug |
| 09183 | Wrench, Wheel Cap |
| 09184 | Stopper, Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
