Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

36 part groups · 5 illustrations

Illustrations

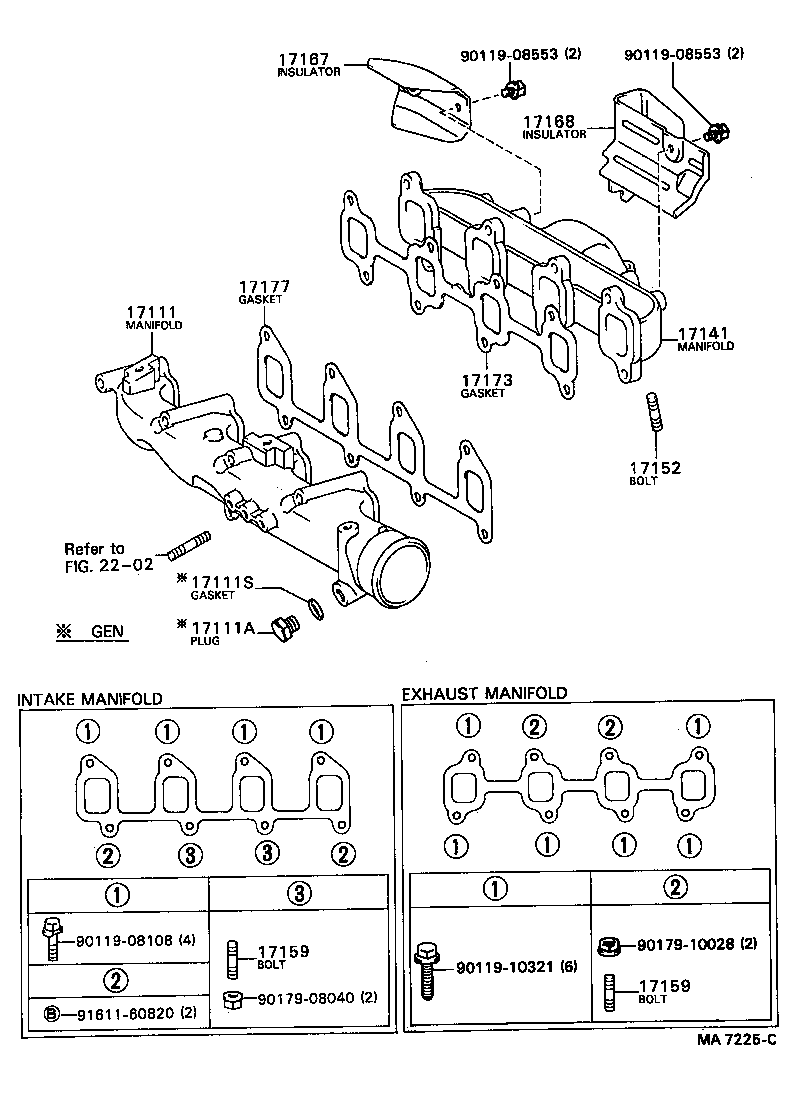

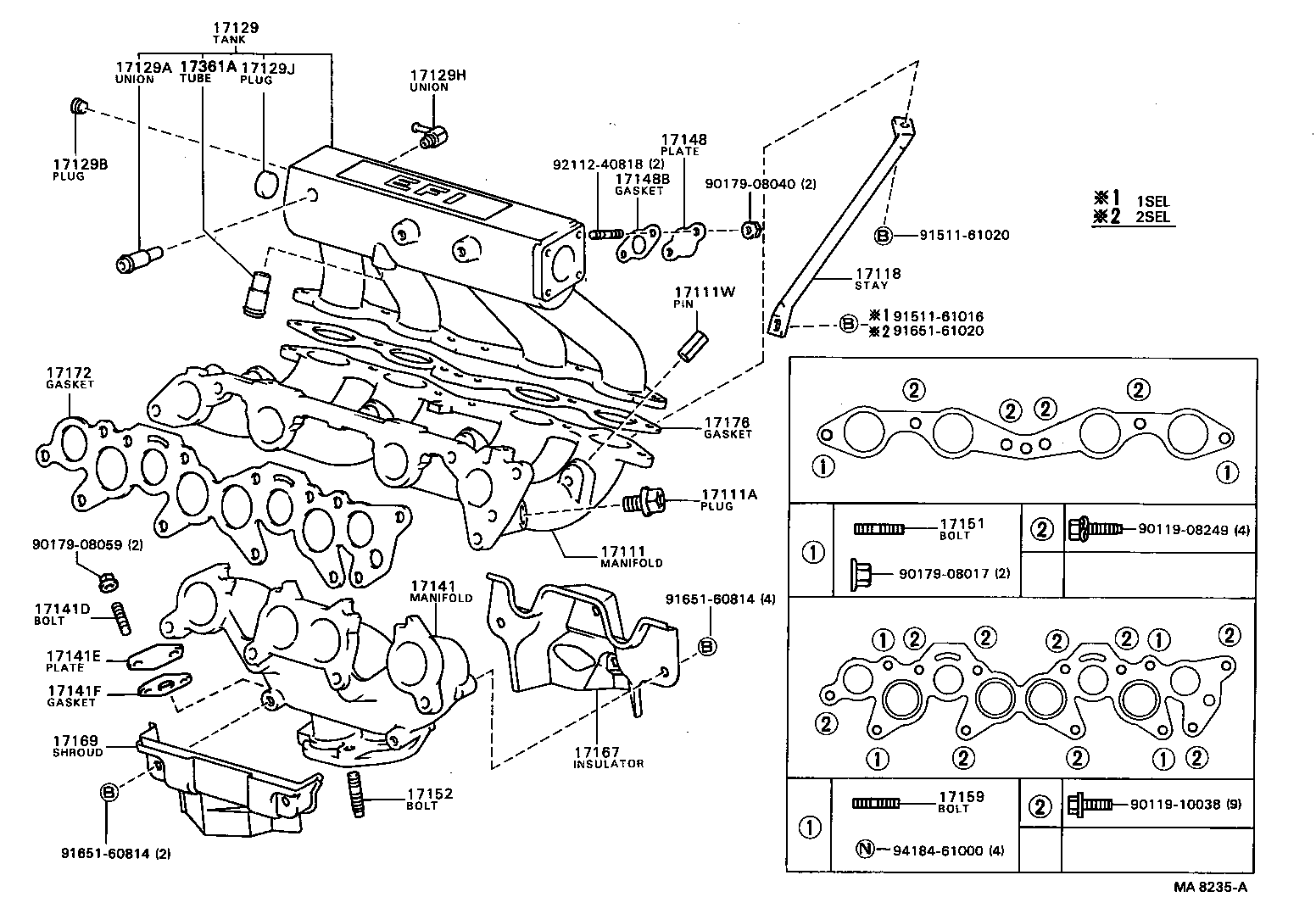

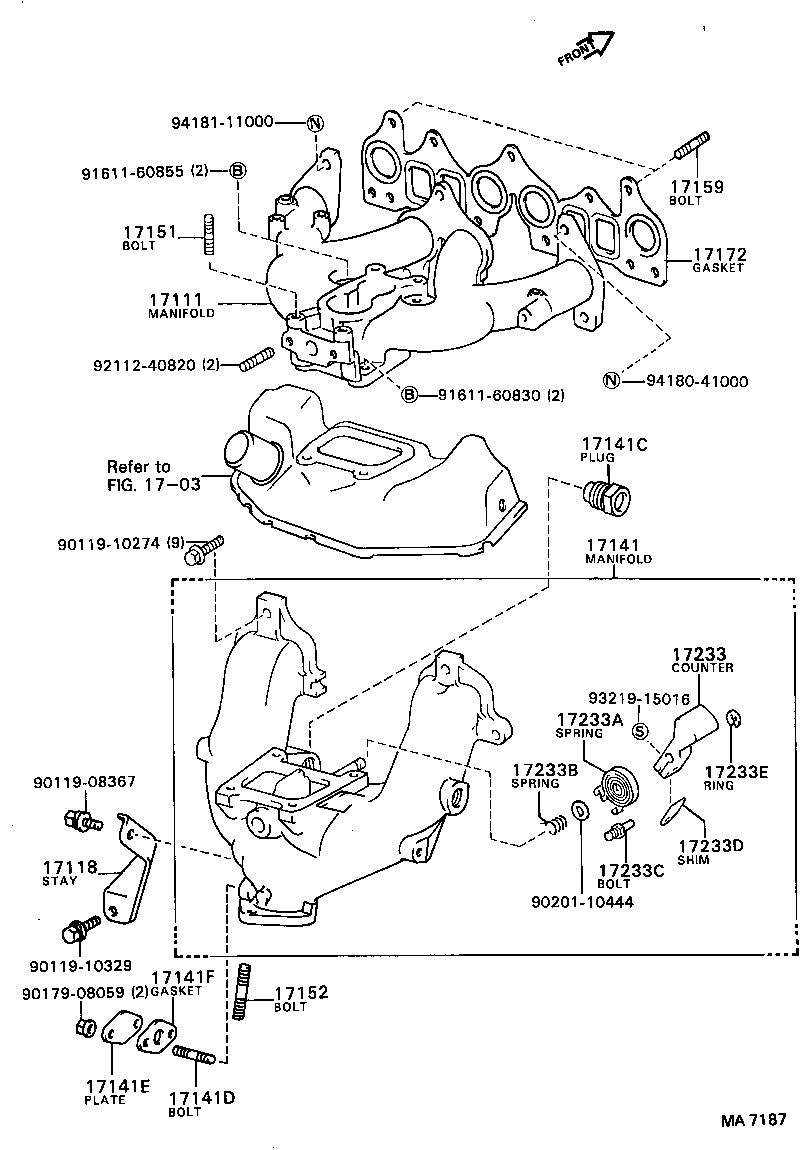

Figure MA7189 MA7189 1983-10 → — Figure MA7187 MA7187 1983-10 → — Figure MA7225C MA7225C 1983-10 → — Figure MA6095C MA6095C 1983-10 → — Figure MA8235A MA8235A 1985-08 → —

Part groups

PNCDescription
17110D Bolt(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111S Gasket(FOR MANIFOLD PLUG)
17111W Pin, Slotted Spring(FOR INTAKE MANIFOLD)
17118 Stay, Manifold
17129 Tank, Intake Air Surge
17129A Union, NO.1
17129B Plug
17129H Union, NO.4
17129J Plug, Tight(FOR INTAKE AIR SURGE TANK)
17141 Manifold, Exhaust
17141C Plug, W/Head Straight Screw
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17141E Plate, Exhaust Manifold
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17148B Gasket, Egr Inlet
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17233 Counter Weight
17233A Spring, Spiral, NO.1(FOR COUNTER WEIGHT)
17233B Spring, Spiral, NO.2(FOR COUNTER WEIGHT)
17233C Bolt(FOR COUNTER WEIGHT)
17233D Shim(FOR COUNTER WEIGHT)
17233E Ring, E(FOR COUNTER WEIGHT)
17361A Tube, Air(FOR EFI)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
