Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

9 part groups · 4 illustrations

Illustrations

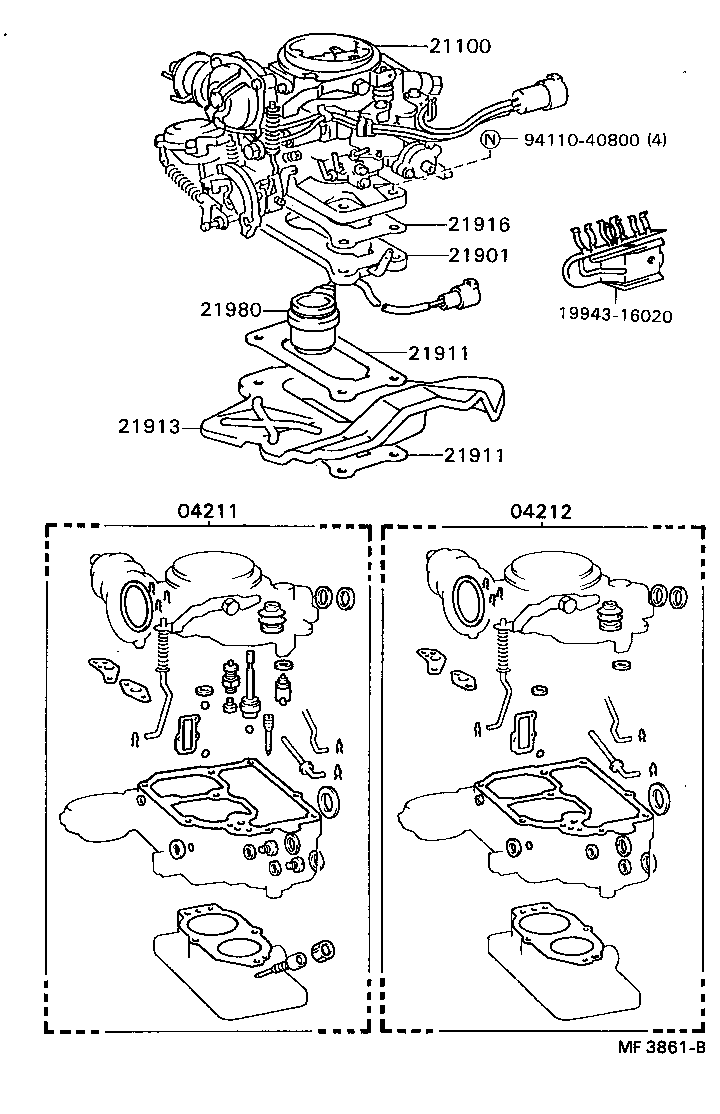

Figure MF3622A MF3622A 1983-10 → 1986-08 Figure MF3622A MF3622A 1986-08 → — Figure MF3861B MF3861B 1986-08 → — Figure MF2926A MF2926A 1983-10 → —

Part groups

PNCDescription
04211 Carburetor Kit
04212 Gasket Kit, Carburetor
21100 Carburetor Assy
21673 Cap, Idle Limit
21901 Insulator Sub-assy, Carburetor Heat, NO.1
21911 Gasket, Carburetor
21913 Insulator, Carburetor Heat, NO.2
21916 Gasket, Carburetor, NO.2
21980 Heater Assy, Cold Mixture
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
