Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

2 part groups · 3 illustrations

Illustrations

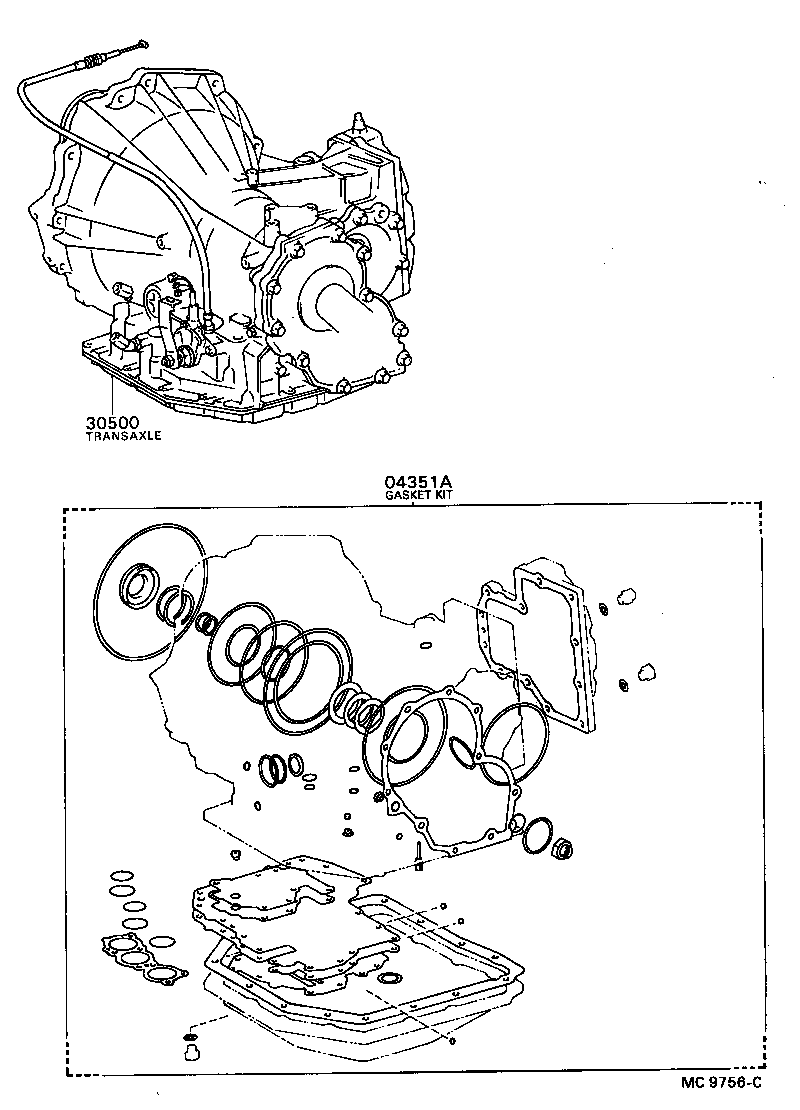

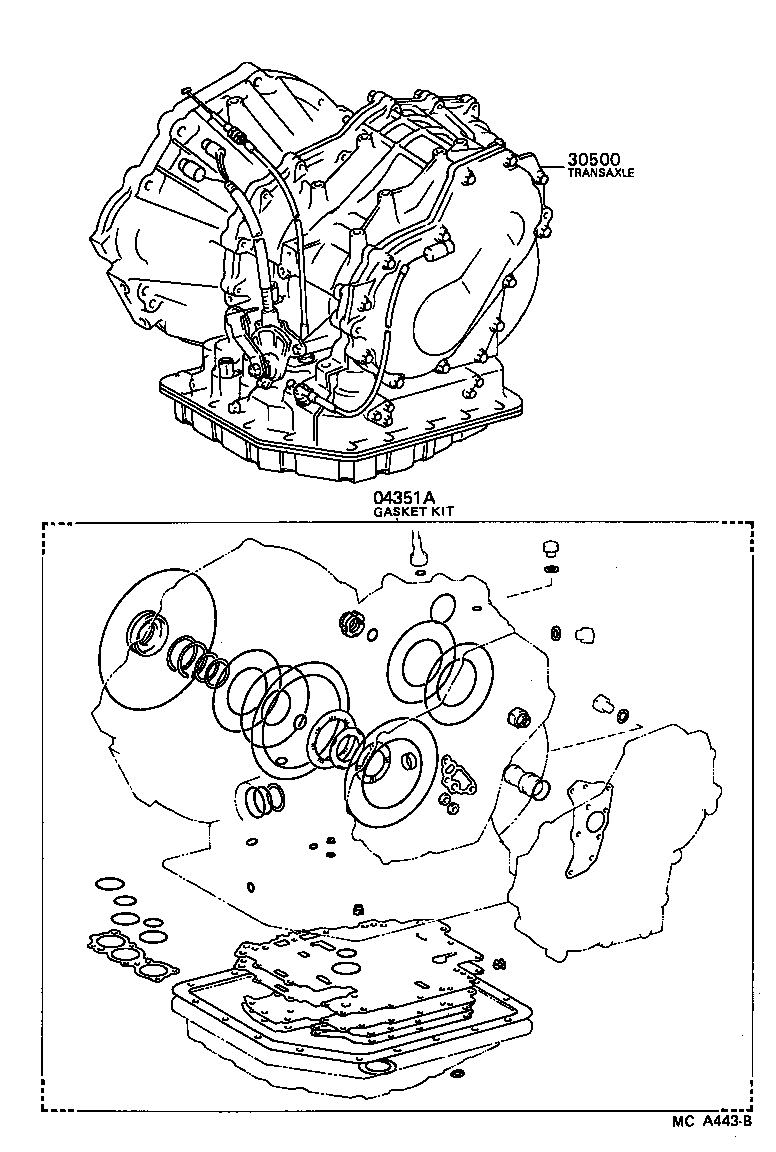

Figure MC9754C MC9754C 1983-10 → — Figure MCA443B MCA443B 1984-01 → — Figure MC9756C MC9756C 1983-10 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
