Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

7 part groups · 2 illustrations

Illustrations

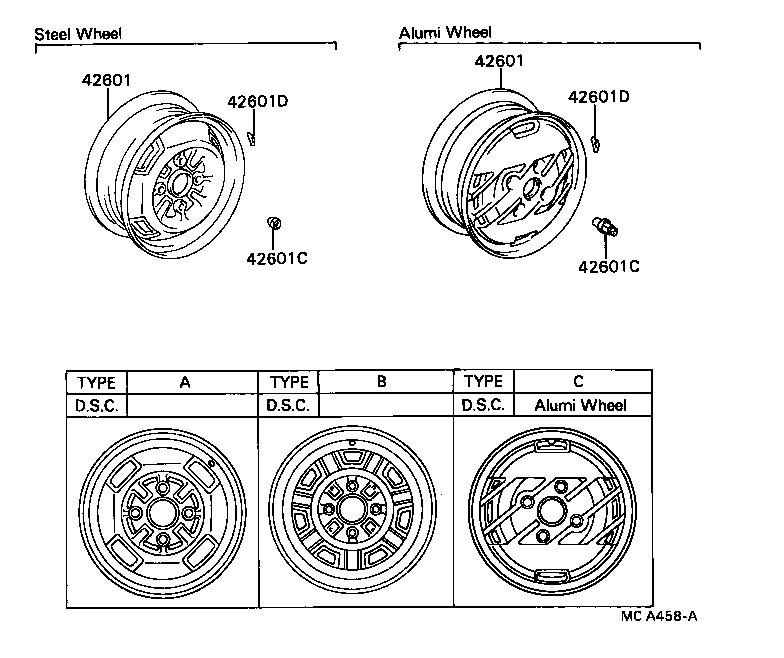

Figure MCA457A MCA457A 1983-10 → — Figure MCA458A MCA458A 1983-10 → —

Part groups

PNCDescription
42601 Wheel, Disc
42601C Nut, Hub (FOR AXLE)
42601D Weight, Balance (FOR DISC WHEEL)
42603 Ornament Sub-assy, Wheel Hub
42611A Tire Tube Set OR Tubeless Tire
42611G Valve (FOR TUBELESS TIRE)
42621 Cap, Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
