Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

18 part groups · 9 illustrations

Illustrations

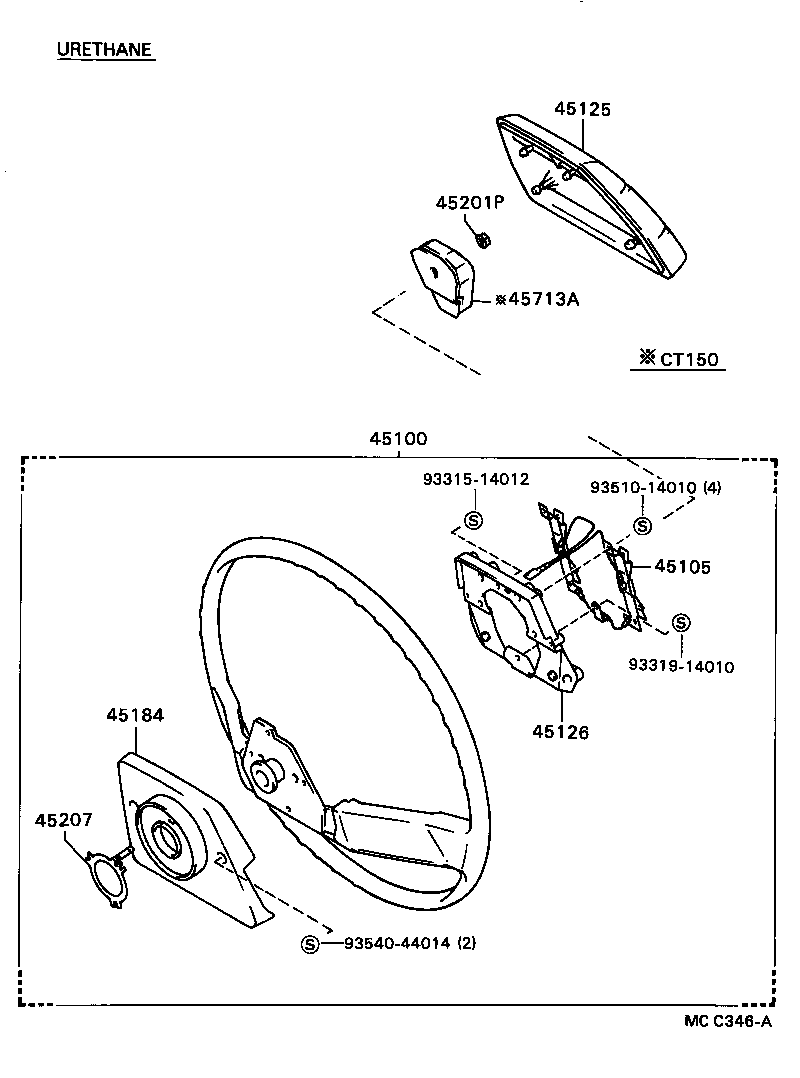

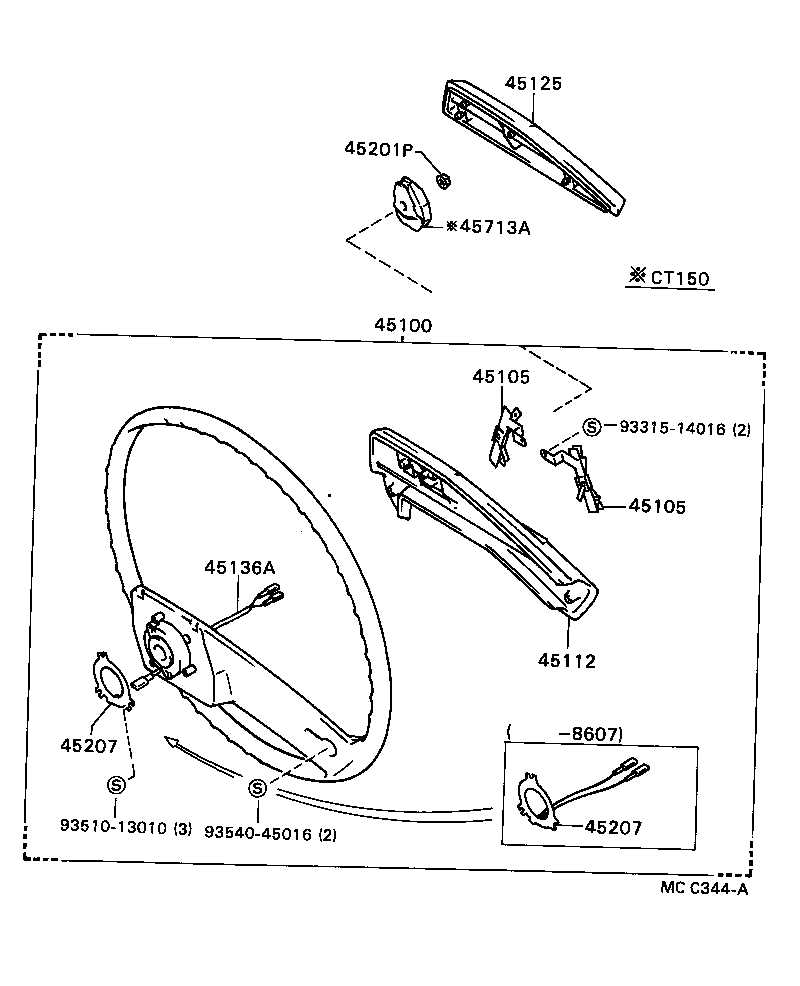

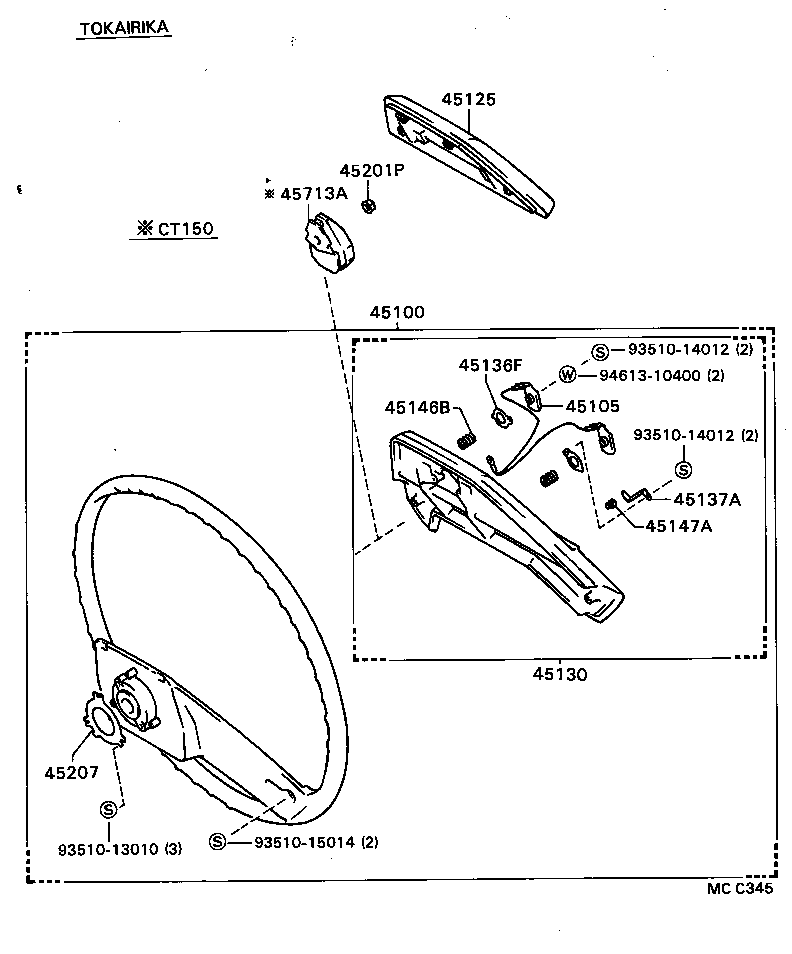

Figure MCA476 MCA476 1983-10 → 1985-08 Figure MCA476 MCA476 1985-08 → 1986-08 Figure MCA477B MCA477B 1983-10 → 1985-08 Figure MCA477B MCA477B 1985-08 → 1986-08 Figure MCC344A MCC344A 1985-08 → — Figure MCC345 MCC345 1985-08 → — Figure MCA478 MCA478 1983-10 → 1985-08 Figure MCA478 MCA478 1985-08 → 1986-08 Figure MCC346A MCC346A 1985-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45112 Pad, Steering Wheel
45125 Mark, Steering Wheel Pad
45126 Plate, Steering Wheel Pad Set
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136A Cord(FOR HORN CONTACT RING)
45136F Plate, Horn Button Contact, NO.1
45137A Plate, Horn Button Contact, NO.2
45146 Spring, Horn Button Contact
45146B Spring, Horn Button Contact, NO.1
45147A Spring, Horn Button Contact, NO.2
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
45713A Damper, Steering Shake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
