Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

19 part groups · 2 illustrations

Illustrations

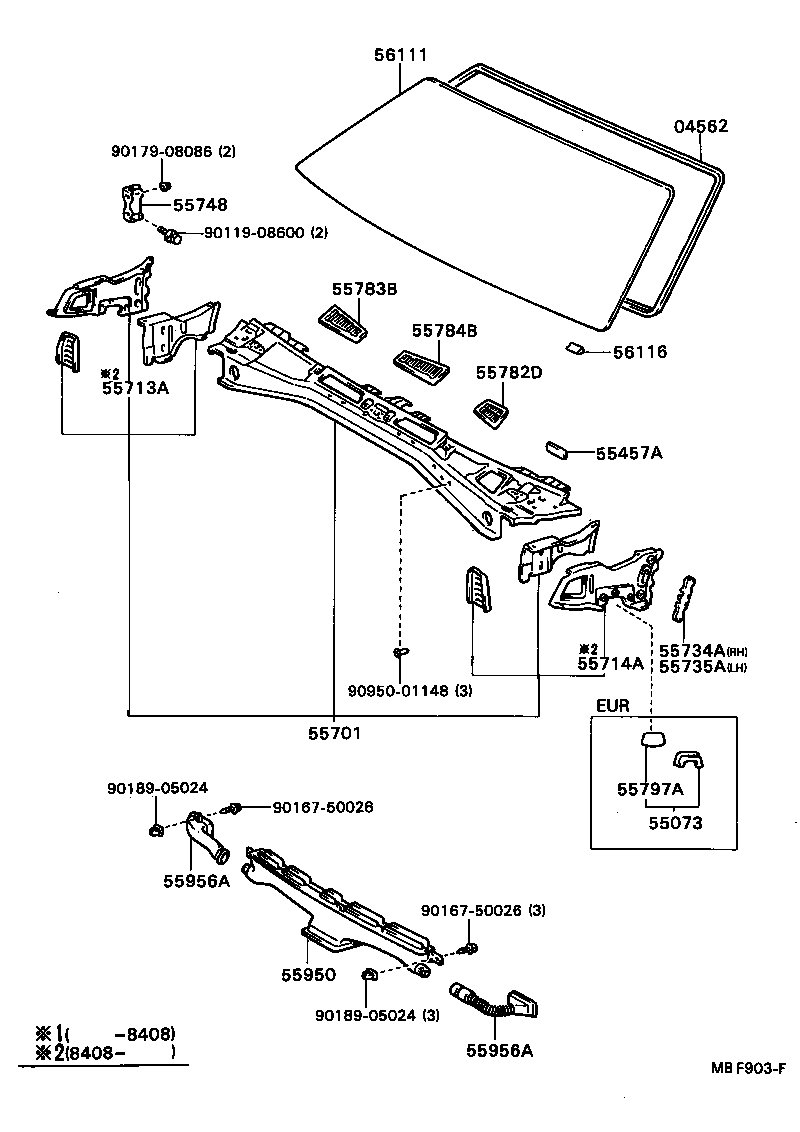

Figure MBF956F MBF956F 1983-10 → — Figure MBF903F MBF903F 1983-10 → —

Part groups

PNCDescription
04562 Dam Kit, Windshield Glass
55073 Nozzle Sub-assy, Cowl Panel Water Extract
55457A Spacer, Instrument Panel Safety Pad
55701 Panel Sub-assy, Cowl
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
55734A Plate, Water Guard, RH
55735A Plate, Water Guard, LH
55748 Brace, Cowl Top TO Pillar, RH
55749 Brace, Cowl Top TO Pillar, LH
55781D Louver, Cowl Top Ventilator, RH
55782D Louver, Cowl Top Ventilator, LH
55783B Louver, Cowl Top Ventilator, Center NO.1
55784B Louver, Cowl Top Ventilator, Center NO.2
55797A Seal, Cowl Water Extract
55950 Nozzle Assy, Defroster
55956A Duct, Side Defroster Nozzle, NO.1
56111 Glass, Windshield
56116 Spacer, Windshield Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
