Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04

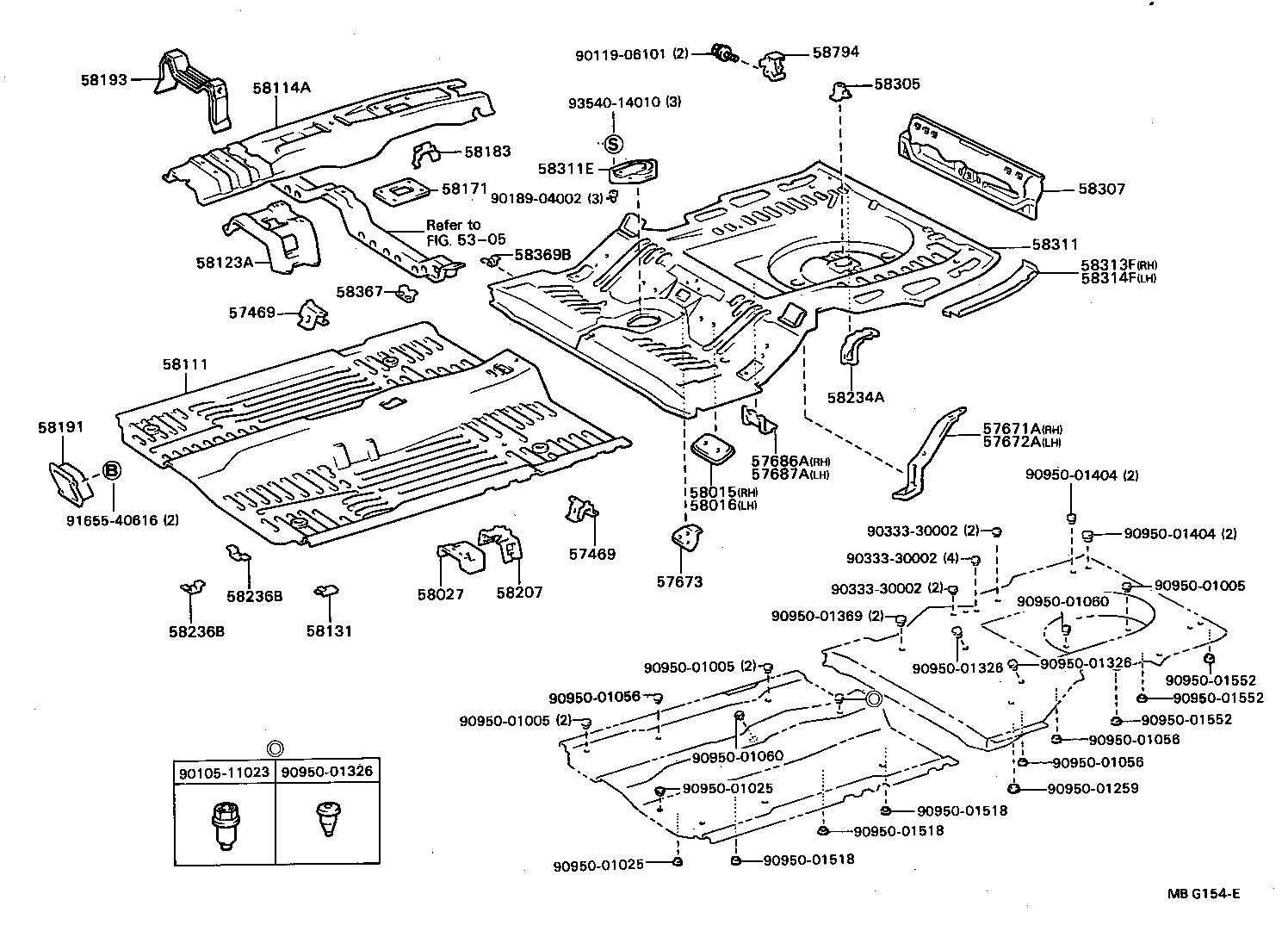

Floor Pan & Lower Back Panel

31 part groups · 2 illustrations

PNC	Description
57469	Bracket, Front Seat, Outside
57671A	Stay, Rear Floor Side Member, RH
57672A	Stay, Rear Floor Side Member, LH
57673	Bracket, Rear Seatback Hinge Mounting
57686A	Bracket, Fuel Tank Mounting, Rear RH
57687A	Bracket, Fuel Tank Mounting, Rear LH
58015	Reinforcement, Belt Anchor TO Floor Pan, RH
58016	Reinforcement, Belt Anchor TO Floor Pan, LH
58027	Reinforcement, Belt Anchor TO Floor Pan, NO.1
58111	Pan, Front Floor
58114A	Reinforcement, Front Floor Panel
58123A	Support, Shift & Select Lever
58131	Bracket, Front Floor Heat Insulator, NO.1
58171	Reinforcement, Parking Brake Base
58183	Bracket, Front Seat Mounting, Inner
58191	Footrest, Front Floor
58193	Bracket, Instrument Panel Brace Mounting
58207	Bracket Sub-assy, Parking Brake Cable, NO.1
58234A	Bracket, Exhaust Pipe Mounting, Inner
58236B	Bracket, Center Floor Heat Insulator
58305	Bracket Sub-assy, Spare Wheel Clamp
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58311E	Cover, Rear Floor Service Hole
58313F	Extension, Rear Floor Pan TO Quarter Panel, RH
58314F	Extension, Rear Floor Pan TO Quarter Panel, LH
58315E	Extension Rear Floor Side Panel, Front RH
58317C	Extension, Rear Floor Side Panel, Rear LH
58367	Bracket, Fuel Tube Clamp
58369B	Bracket, Fuel Tube, NO.3
58794	Carrier, Jack

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
