Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

27 part groups · 3 illustrations

Illustrations

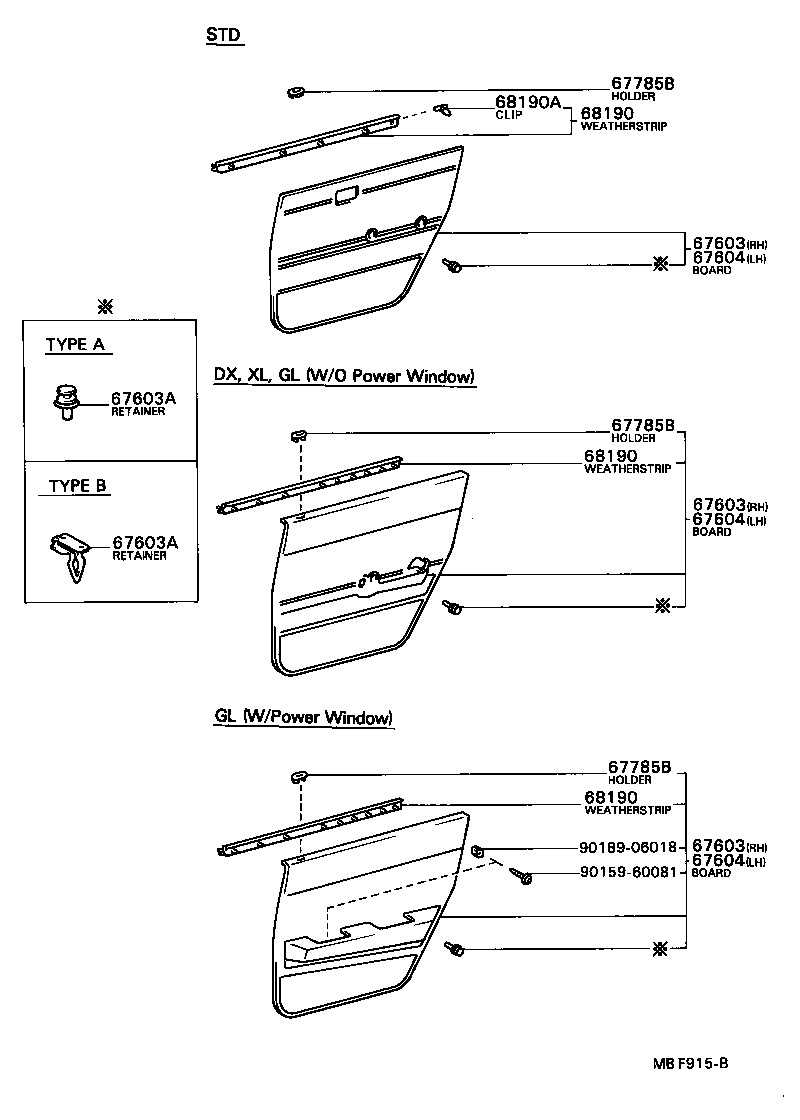

Figure MBF914A MBF914A 1983-10 → — Figure MBF915B MBF915B 1983-10 → 1985-08 Figure MBJ510B MBJ510B 1985-08 → —

Part groups

PNCDescription
67003 Panel Sub-assy, Rear Door, RH
67004 Panel Sub-assy, Rear Door, LH
67113 Panel, Rear Door, Outer RH
67114 Panel, Rear Door, Outer LH
67407D Guide Sub-assy, Rear Door Window, Rear RH
67408D Guide Sub-assy, Rear Door Window, Rear LH
67487A Garnish, Rear Door Rear Guide Bracket, RH
67488A Garnish, Rear Door Rear Guide Bracket, LH
67603 Board Sub-assy, Rear Door Trim, RH
67603A Retainer(FOR REAR DOOR TRIM BOARD)
67604 Board Sub-assy, Rear Door Trim, LH
67785B Holder, Door Locking Button Collar(FOR REAR DOOR)
67803 Cover Sub-assy, Rear Door Service Hole, RH
67804 Cover Sub-assy, Rear Door Service Hole, LH
67836 Cover, Rear Door Lock Child Protection, RH
67847B Seal, Rear Door Vent, RH NO.1
67848A Seal, Rear Door Vent, LH NO.1
67871 Weatherstrip, Rear Door, RH
67871A Retainer(FOR REAR DOOR WEATHERSTRIP)
67872 Weatherstrip, Rear Door, LH
68103 Glass Sub-assy, Rear Door, RH
68104 Glass Sub-assy, Rear Door, LH
68142 Run, Rear Door Glass
68190 Weatherstrip Assy, Rear Door Glass, Inner
68190A Clip(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
68630 Check Assy, Rear Door
68630A Pin(FOR REAR DOOR CHECK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
