Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

47 part groups · 4 illustrations

Illustrations

MBF944D 1983-10 → 1985-08

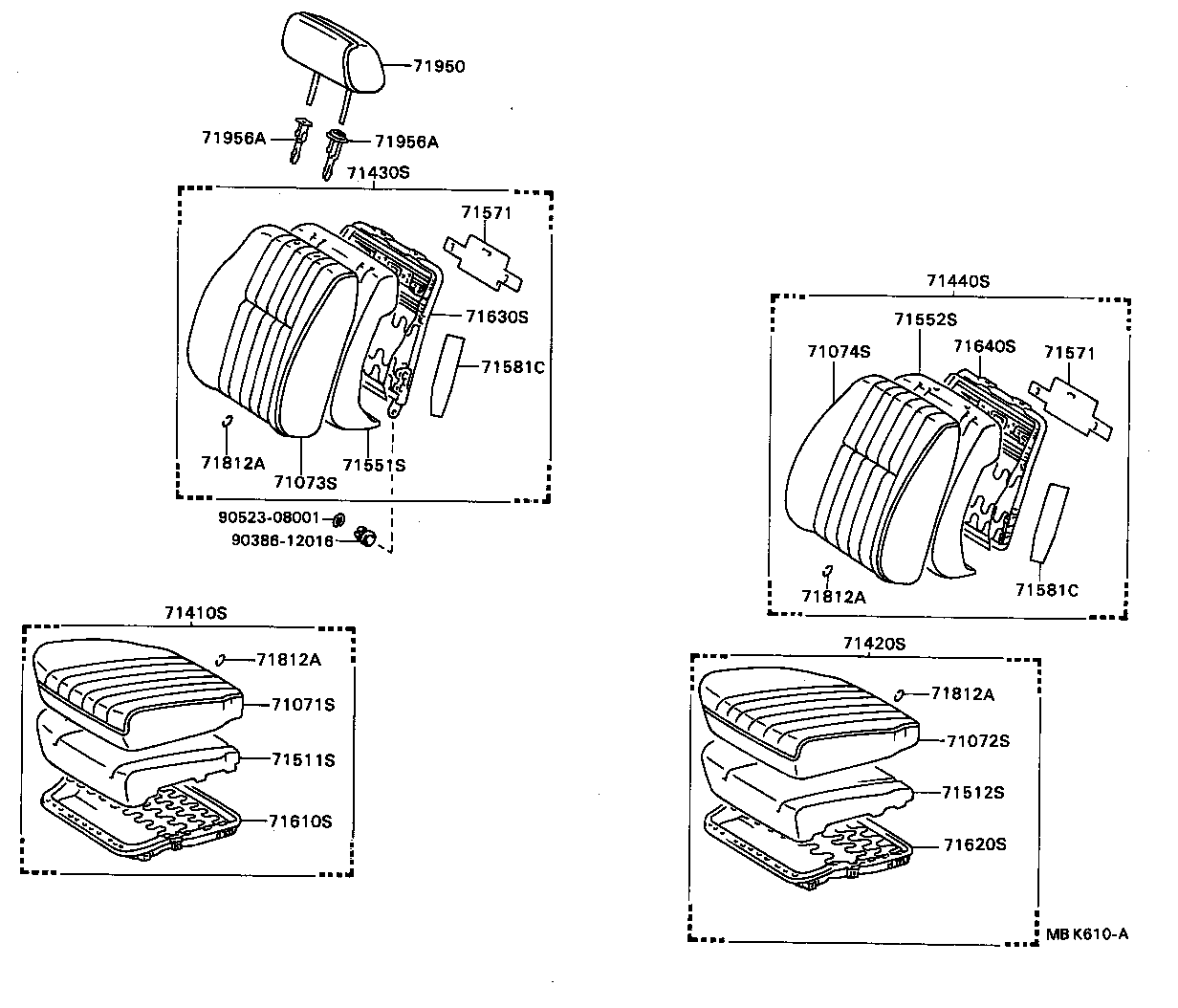

MBK610A 1985-08 → —

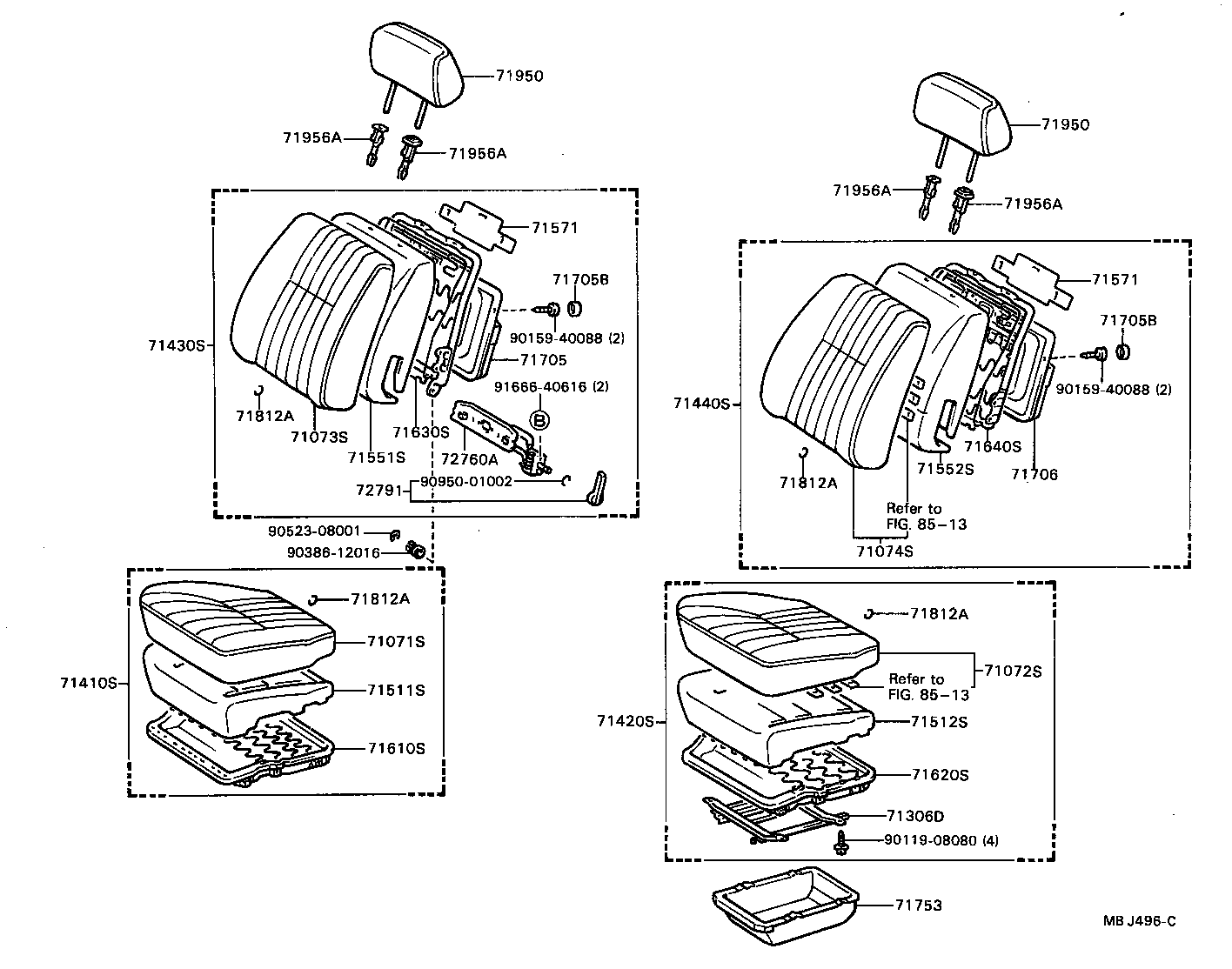

MBJ496C 1985-08 → —

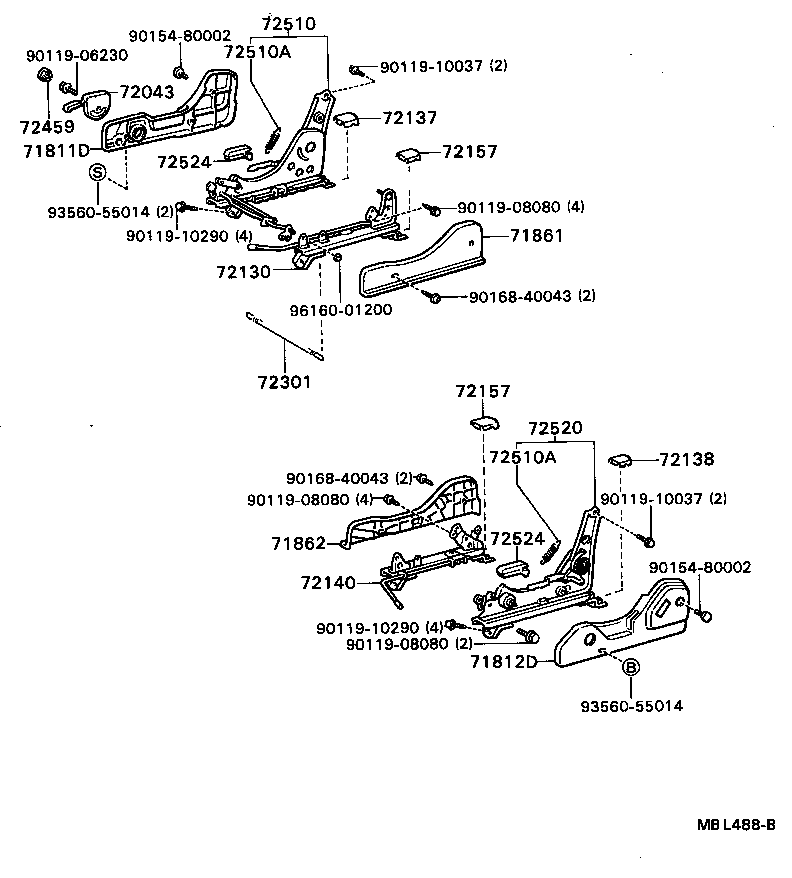

MBL488B 1985-08 → —

Part groups

PNC	Description
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071W	Wire, Front Seat Cushion Cover
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073W	Wire, Front Seatback Cover
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71306D	Bracket Sub-assy, Front Seat Set
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71571	Pad, Front Seatback Silencer, A
71581C	Pad, Front Seatback Corner, C
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71705	Board Sub-assy, Front Seatback, RH
71705B	Cap(FOR FRONT SEATBACK BOARD)
71706	Board Sub-assy, Front Seatback, LH
71753	Tray, Front Seat Under
71811D	Shield, Front Seat Cushion, RH
71812A	Ring, Hog, Small (FOR FRONT SEAT)
71812D	Shield, Front Seat Cushion, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71922A	Cover, Front Seat Headrest Under
71950	Headrest Assy, Front Seat
71956A	Support, Front Seat Headrest
72043	Lever Sub-assy, Seat Lifter
72130	Track Assy, RH Seat, Inner
72137	Cover, Seat Track, Outer RH
72138	Cover, Seat Track, Outer LH
72140	Track Assy, LH Seat, Inner
72157	Cover, Seat Track Bracket, Inner
72301	Wire Sub-assy, Seat Track Equalizing
72459	Cap, Vertical Seat Adjuster Knob
72510	Adjuster Assy, Reclining Seatback, RH
72510A	Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER)
72520	Adjuster Assy, Reclining Seatback, LH
72524	Handle, Reclining Adjuster Release
72760A	Adjuster Assy, Lumbar Support
72791	Lever, Lumbar Support

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
