Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

33 part groups · 2 illustrations

Illustrations

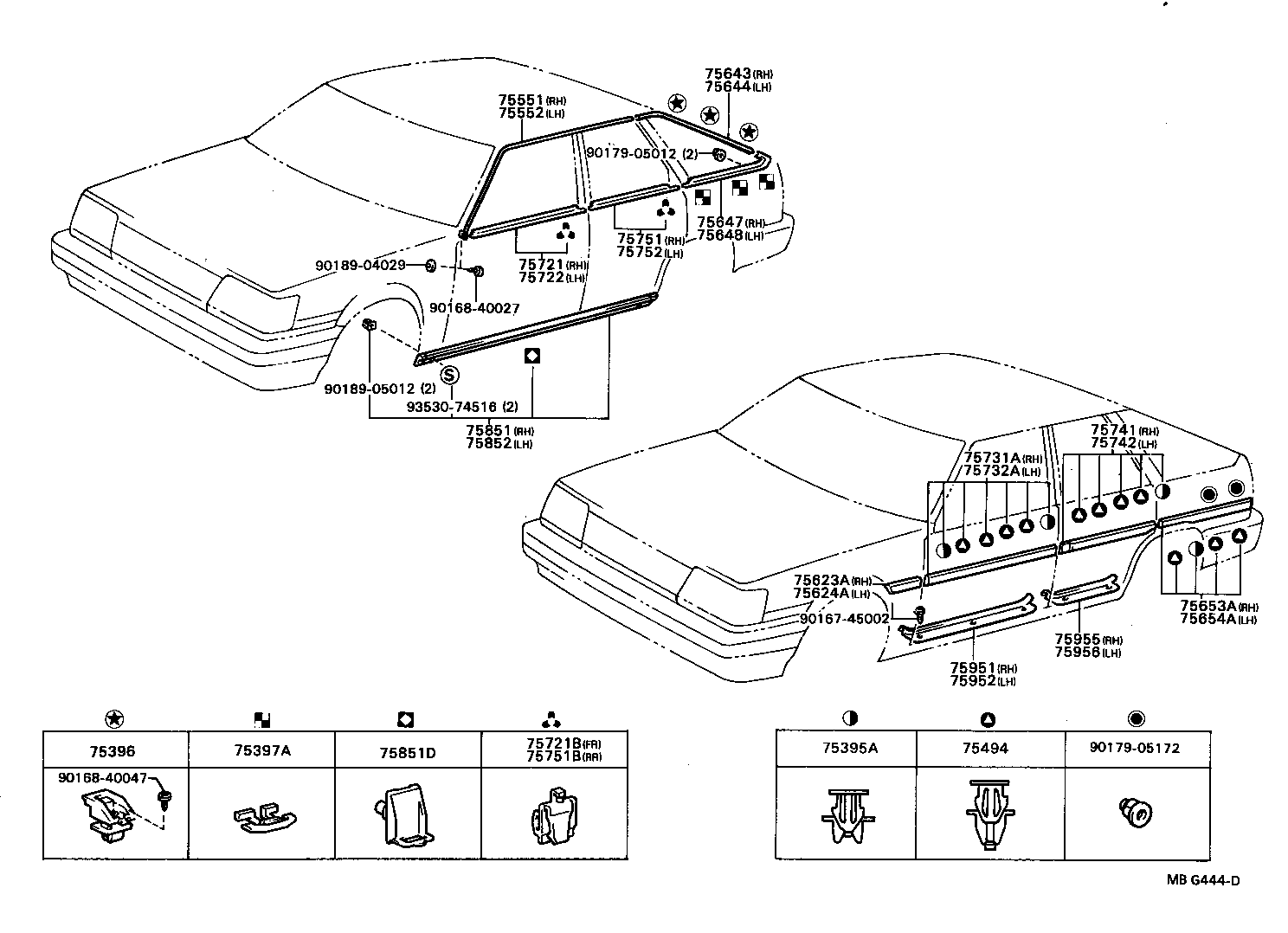

Figure MBE140E MBE140E 1983-10 → — Figure MBG444D MBG444D 1983-10 → —

Part groups

PNCDescription
75395A Clip, Outside Moulding, NO.1
75396 Clip, Outside Moulding, NO.2
75397A Clip, Outside Moulding, NO.3
75494 Clip, Outside Moulding, NO.3
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75623A Moulding, Front Fender, Outside Rear RH
75624A Moulding, Front Fender, Outside Rear LH
75641 Moulding, Quarter Window, Outside Front RH
75642 Moulding, Quarter Window, Outside Front LH
75643 Moulding, Quarter Window, Outside Upper RH
75644 Moulding, Quarter Window, Outside Upper LH
75647 Moulding, Quarter Window, Outside Lower RH
75648 Moulding, Quarter Window, Outside Lower LH
75653A Moulding, Quarter, Outside Rear RH
75654A Moulding, Quarter, Outside Rear LH
75721 Moulding, Front Door Belt, RH
75721B Clip(FOR FRONT DOOR BELT MOULDING SET)
75722 Moulding, Front Door Belt, LH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75751 Moulding, Rear Door Belt, RH
75751B Clip (FOR REAR DOOR BELT MOULDING SET)
75752 Moulding, Rear Door Belt, LH
75851 Moulding, Rocker Panel, RH
75851D Clip(FOR ROCKER PANEL MOULDING SET)
75852 Moulding, Rocker Panel, LH
75951 Plate, Front Door Scuff, Outside RH
75952 Plate, Front Door Scuff, Outside LH
75955 Plate, Rear Door Scuff, Outside RH
75956 Plate, Rear Door Scuff, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
