Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

15 part groups · 2 illustrations

Illustrations

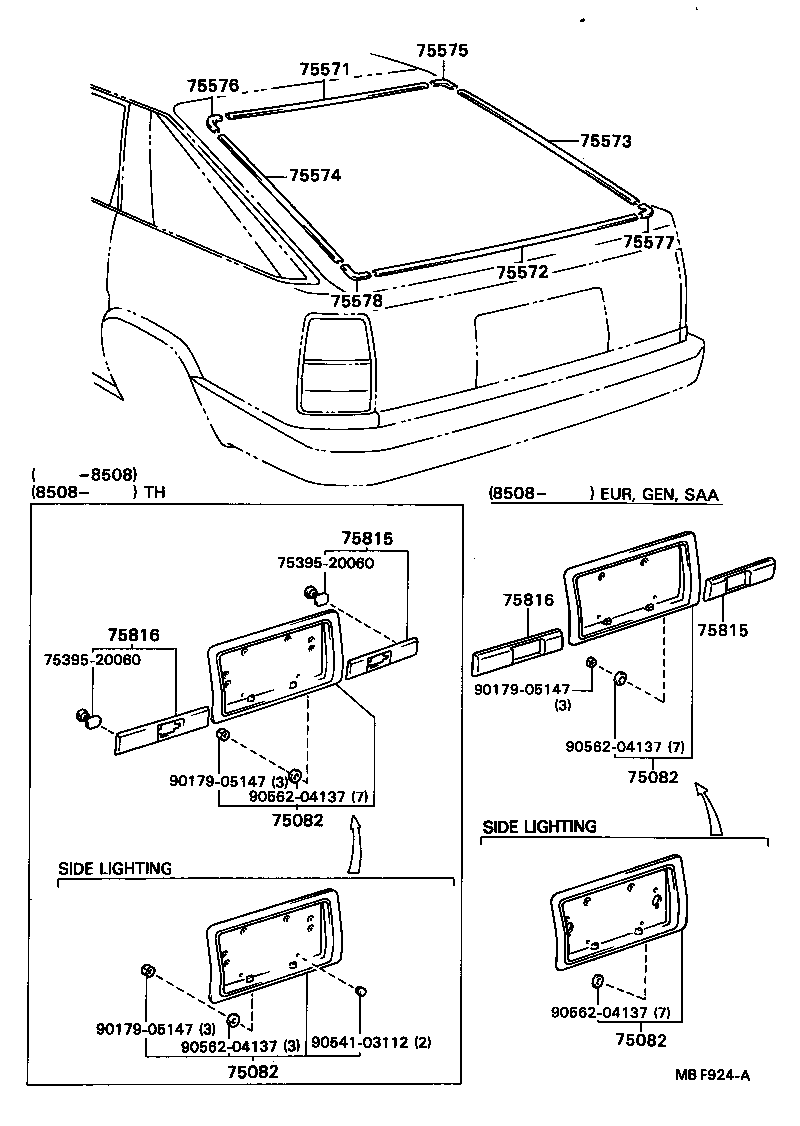

Figure MBF890C MBF890C 1983-10 → — Figure MBF924A MBF924A 1983-10 → —

Part groups

PNCDescription
75082 Panel Sub-assy, Lower Back Finish, Center
75571 Moulding, Back Window, Outside Upper
75572 Moulding, Back Window, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75577 Moulding, Back Window Corner, Lower RH
75578 Moulding, Back Window Corner, Lower LH
75815 Moulding, Back Door Outside, RH
75816 Moulding, Back Door Outside, LH
75819 Clip, Luggage Compartment Door Moulding
75821 Moulding, Luggage Compartment Door Back
76801 Garnish Sub-assy, Back Door, Outside
76817 Clip, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
