Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

67 part groups · 14 illustrations

Illustrations

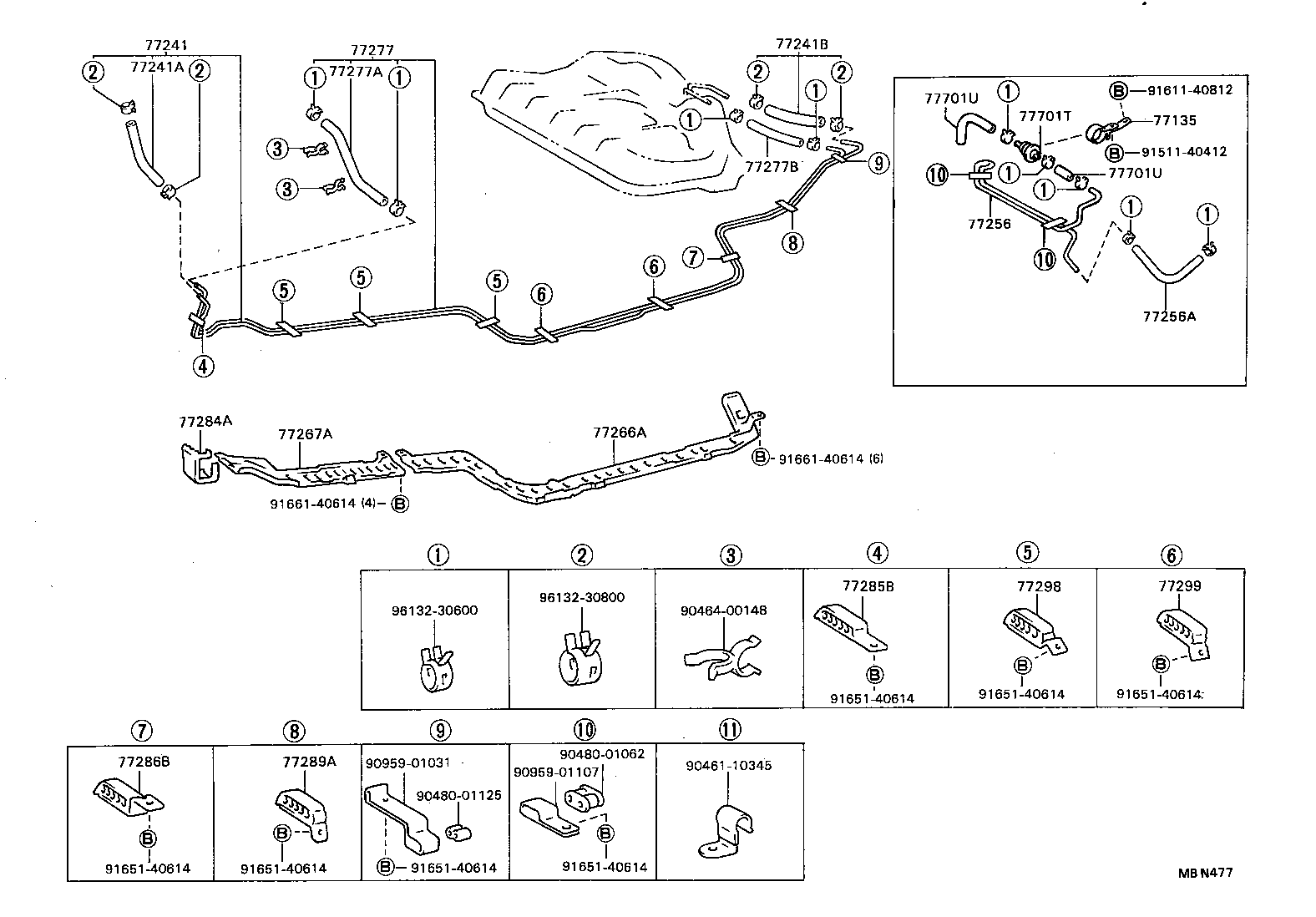

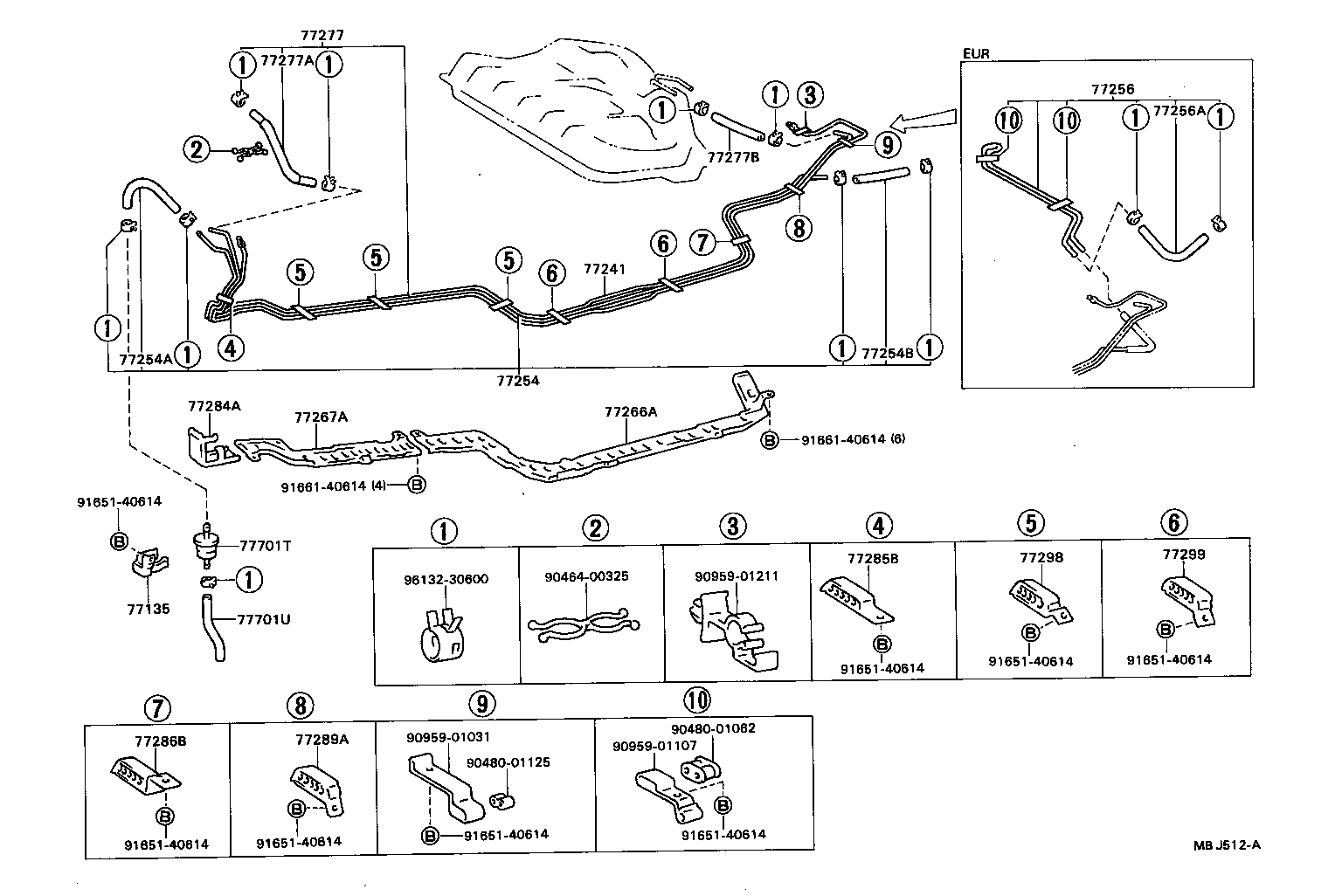

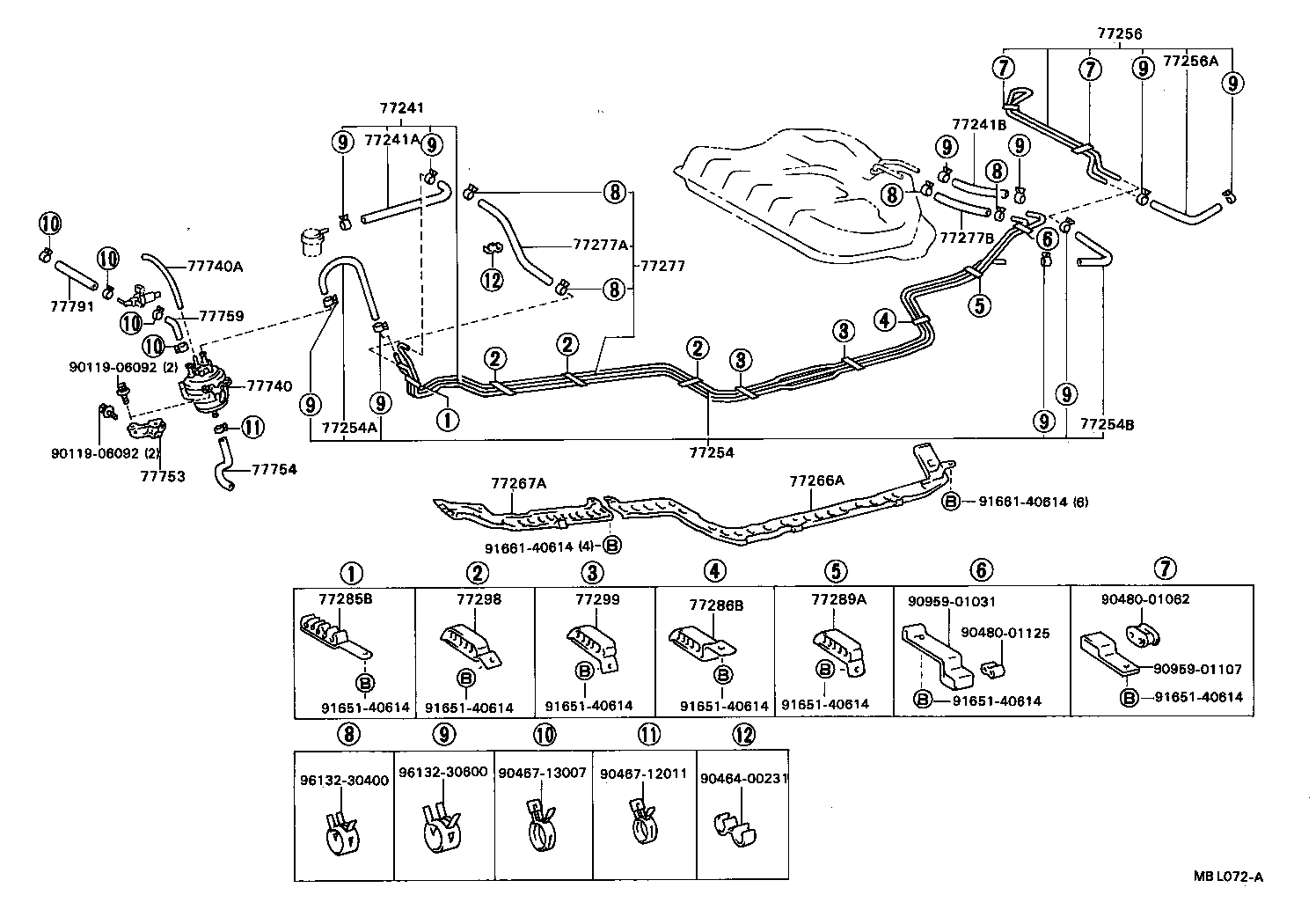

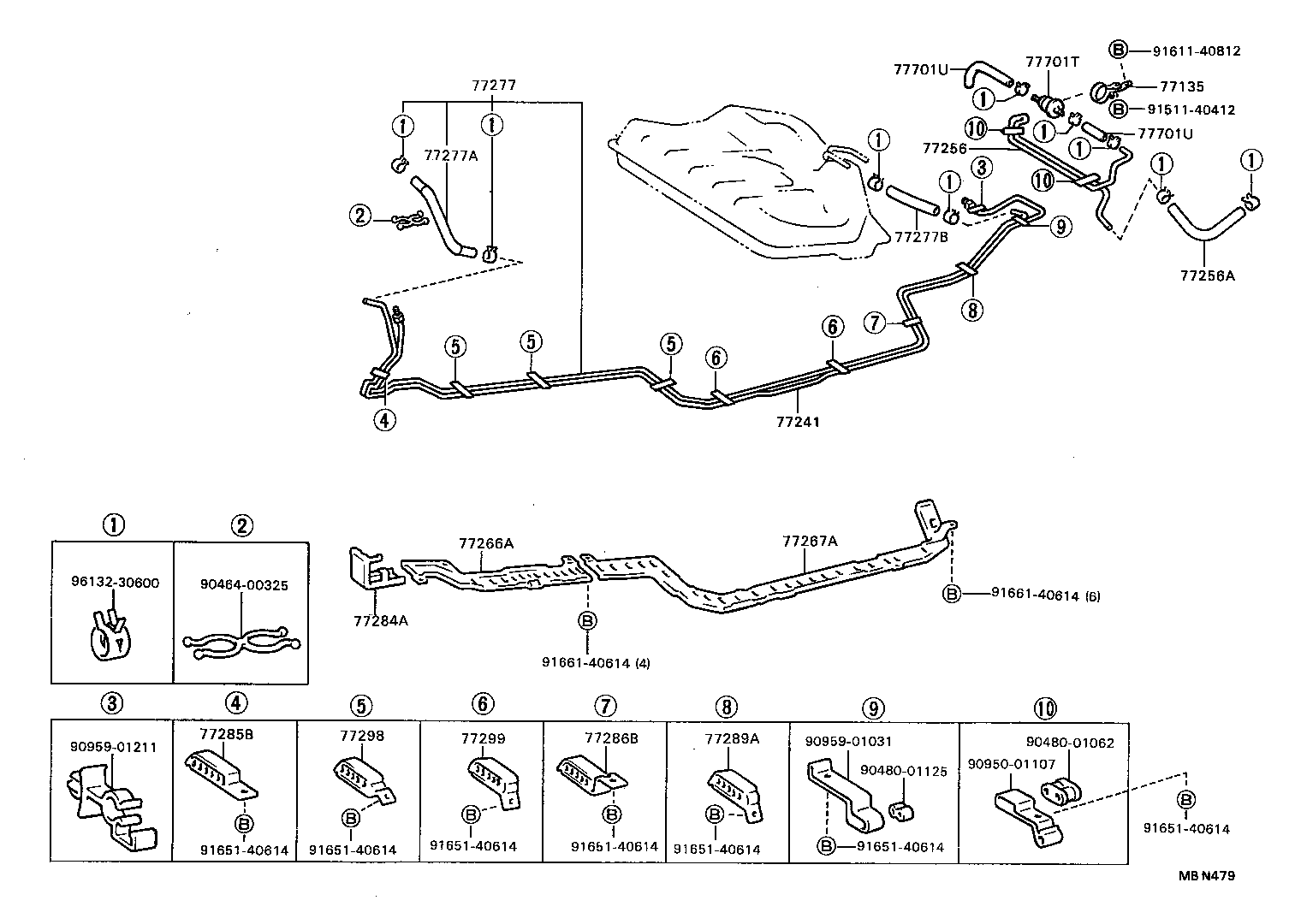

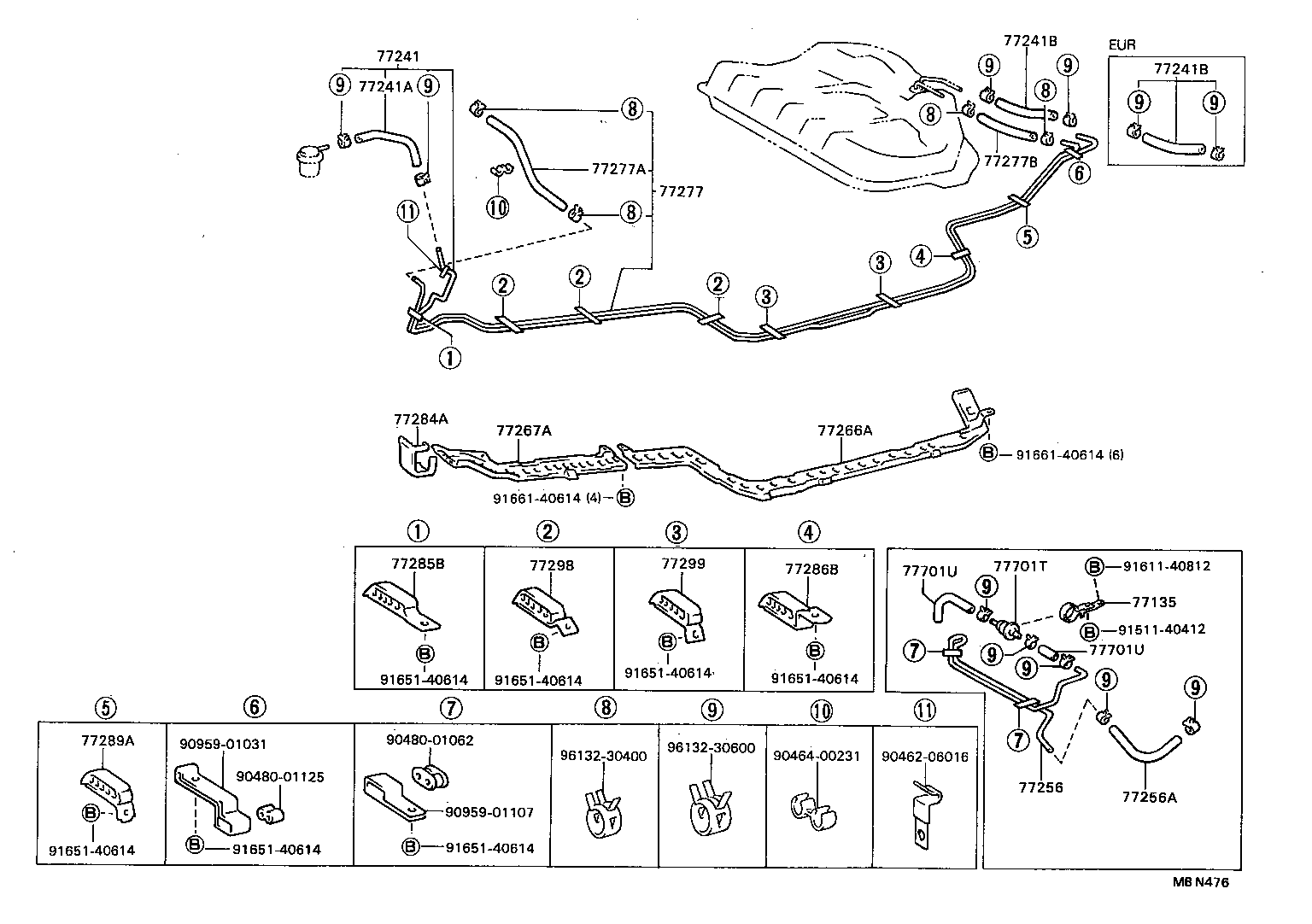

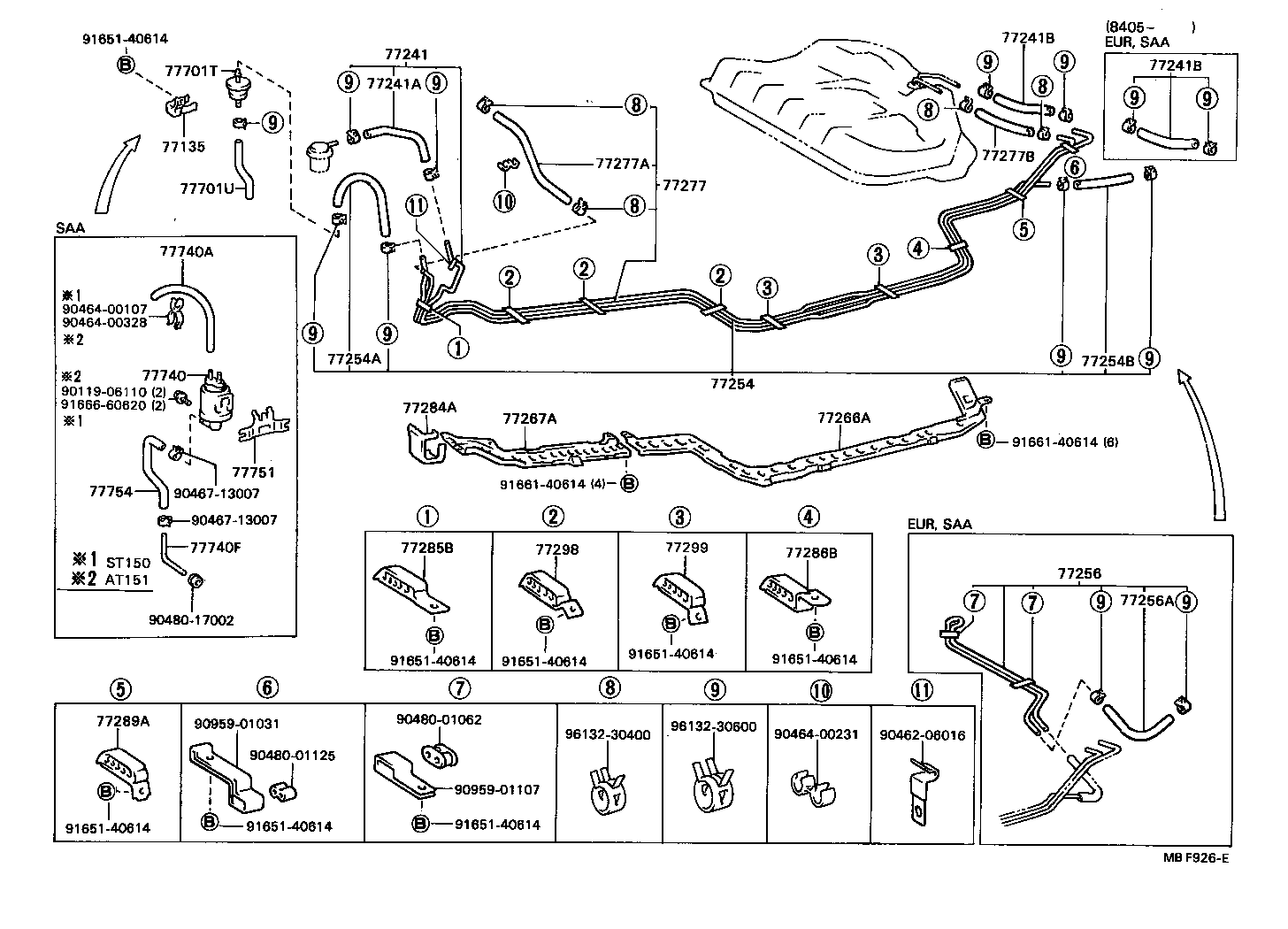

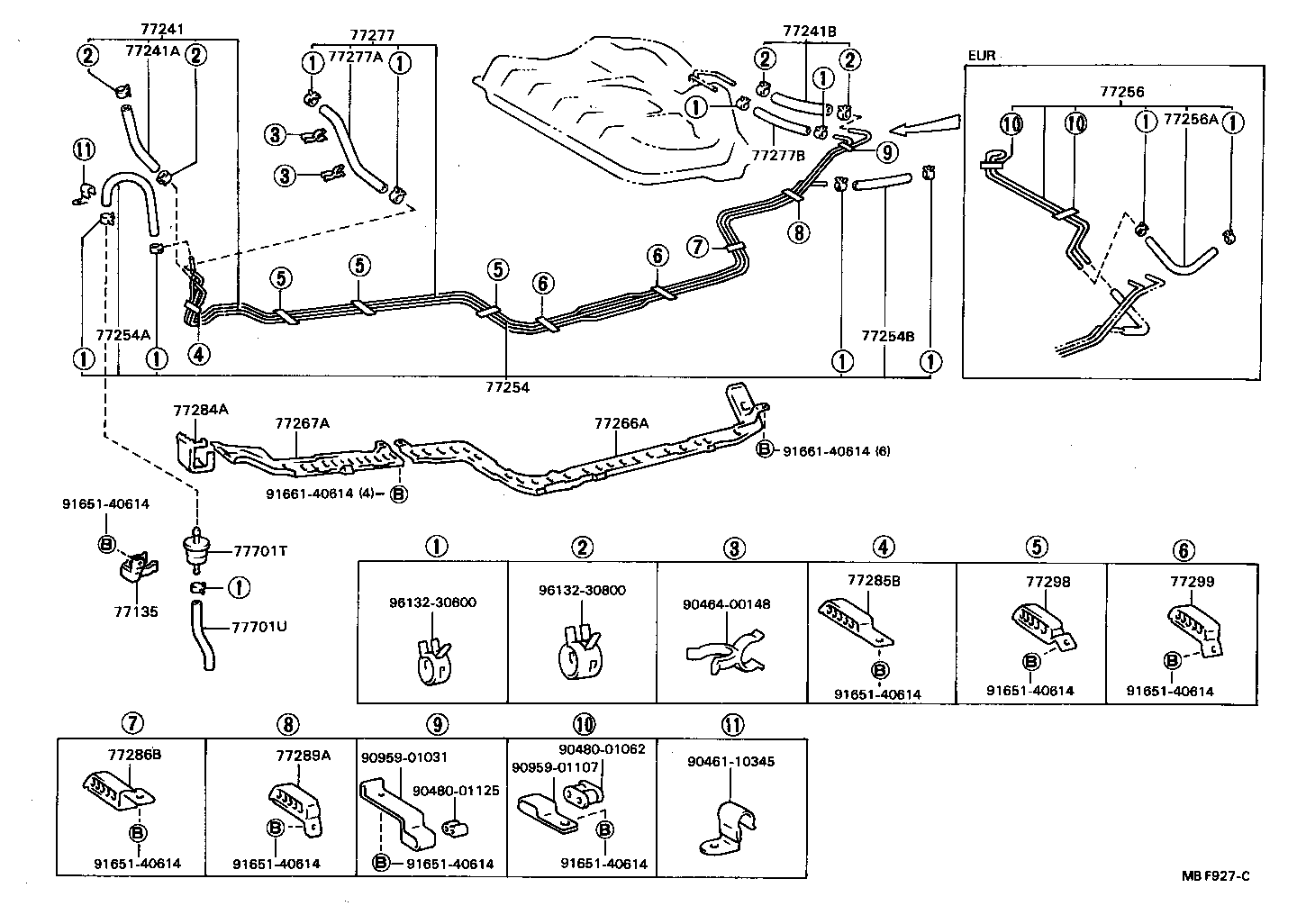

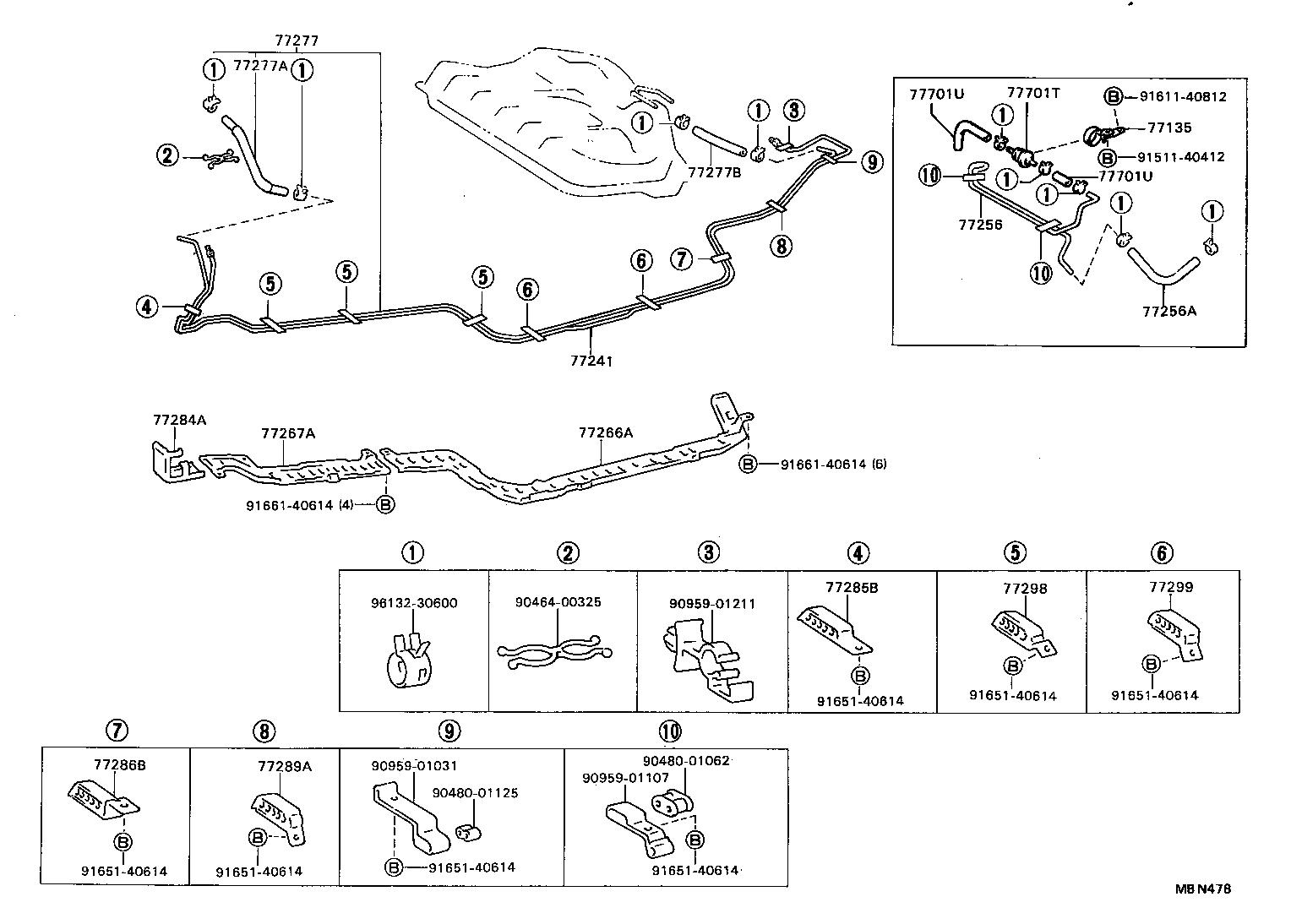

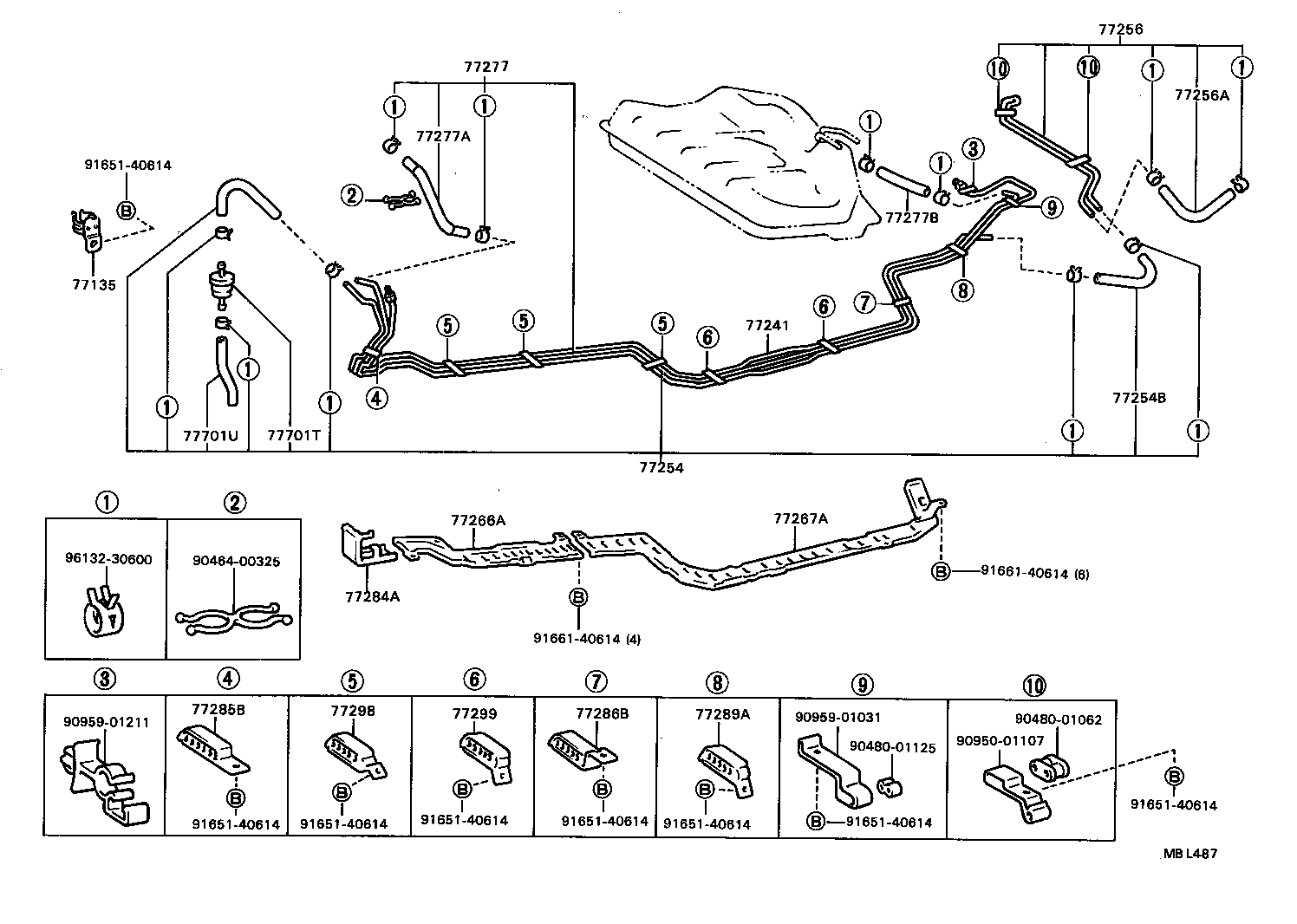

Figure MBF925G MBF925G 1983-10 → — Figure MBF926E MBF926E 1983-10 → 1985-08 Figure MBF926E MBF926E 1985-08 → 1987-03 Figure MBF926E MBF926E 1986-08 → 1987-03 Figure MBF926E MBF926E 1987-03 → — Figure MBF927C MBF927C 1983-10 → 1987-03 Figure MBJ512A MBJ512A 1985-08 → 1986-05 Figure MBJ512A MBJ512A 1985-08 → 1987-03 Figure MBL487 MBL487 1986-08 → 1987-03 Figure MBL072A MBL072A 1986-08 → — Figure MBN476 MBN476 1987-03 → — Figure MBN477 MBN477 1987-03 → — Figure MBN478 MBN478 1987-03 → — Figure MBN479 MBN479 1987-03 → —

Part groups

PNCDescription
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77022 Separator Sub-assy, Fuel Evaporative
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77033 Lock Sub-assy, Fuel Tank Cap
77035 Cable Sub-assy, Fuel Lid Lock Control
77035A Clamp (FOR FUEL LID LOCK CONTROL CABLE)
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77135 Bracket, Check Valve
77178 Gasket, Fuel Tank Filler Pipe, Lower
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77206 Tube Sub-assy, Fuel Tank Suction
77206A Gasket (FOR FUEL TANK SUCTION TUBE)
77213 Hose, Fuel Tank Sub Inlet
77217A Support, Fuel Tank Filler Pipe, NO.2
77218A Support, Fuel Tank Filler Pipe, NO.3
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77254B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
77256 Tube, Fuel Emission, NO.3
77256A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.3)
77266A Protector, Fuel Tube, NO.1
77267A Protector, Fuel Tube, NO.2
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77281A Clamp, Fuel Filler Pipe
77284A Protector, Fuel Tube, NO.3
77285B Clamp, Fuel Tube W/Grommet, NO.1
77286 Protector, Fuel Tank Inlet Pipe
77286B Clamp, Fuel Tube W/Grommet, NO.2
77289A Clamp, Fuel Tube W/Grommet, NO.3
77290 Shield Assy, Fuel Tank Filler Pipe
77295 Shield, Fuel Filler Pipe
77298 Clamp, Fuel Tube W/Grommet, NO.4
77299 Clamp, Fuel Tube W/Grommet, NO.5
77306 Lever Sub-assy, Fuel Lid Lock Open
77306A Spring, Fuel Lid Open Lever
77308 Cover Sub-assy, Fuel Inlet Box
77308A Cushion(FOR FUEL INLET BOX COVER)
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77387 Ring, Fuel Inlet Box
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77641A Protector, Fuel Tank, NO.1
77652 Cushion, Fuel Tank, NO.1
77654 Cushion, Fuel Tank, NO.2
77655 Cushion, Fuel Tank, NO.3
77701T Valve, Check (FOR MAIN FUEL TANK)
77701U Hose, Fuel (FOR CHECK VALVE)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740F Tube, Fuel, NO.1(FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
77753 Bracket, Charcoal Canister, NO.3
77754 Hose, Charcoal Canister Outlet, NO.1
77759 Hose, Charcoal Canister
77791 Hose, Outer Vent Valve TO Carburetor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
