Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

13 part groups · 3 illustrations

Illustrations

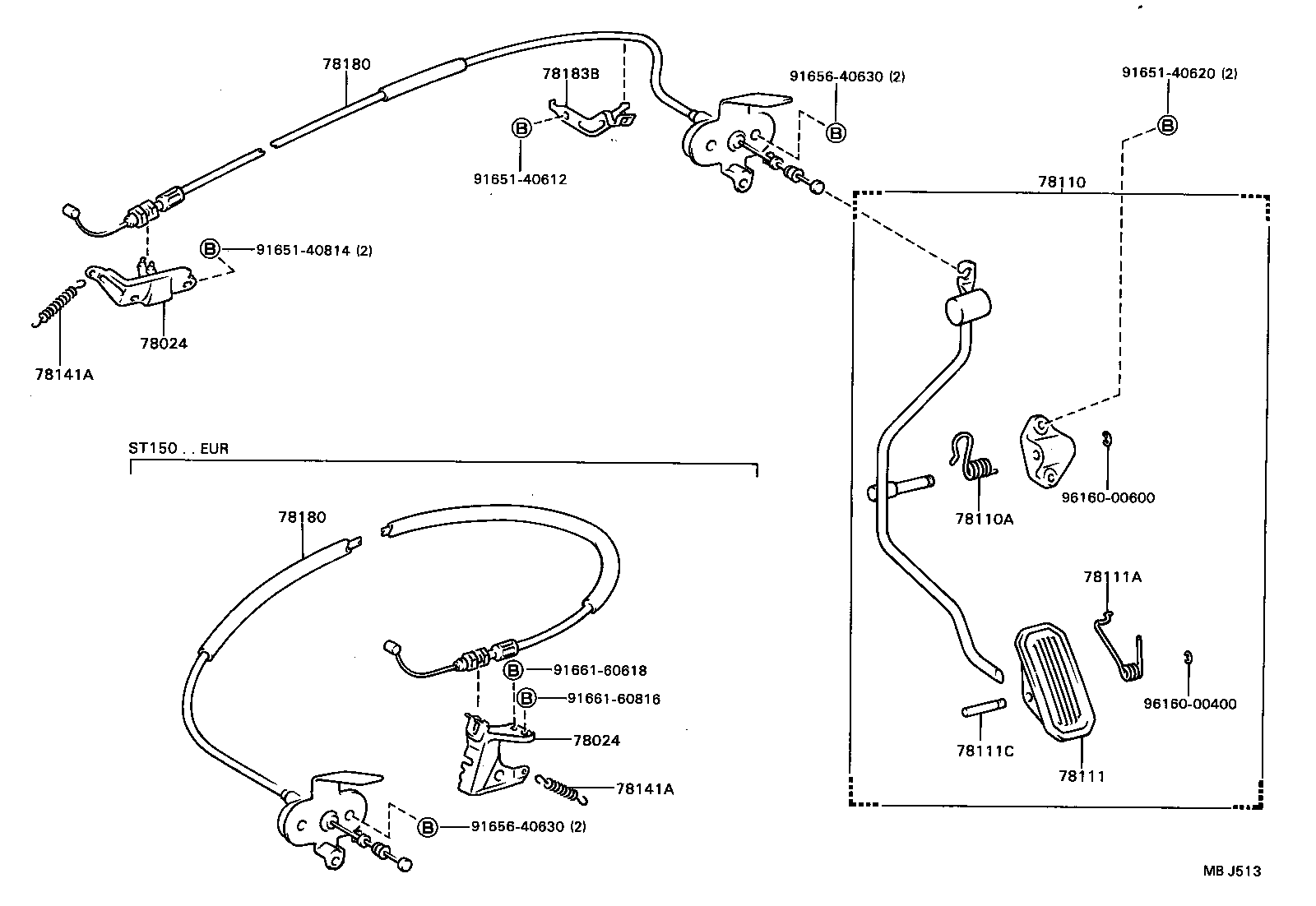

Figure MBF928D MBF928D 1983-10 → — Figure MBF928D MBF928D 1985-08 → — Figure MBJ513 MBJ513 1985-08 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78141A Spring, Tension(FOR ACCELERATOR WIRE RETURN SPRING)
78180 Wire Assy, Accelerator
78181B Stopper, Accelerator Idle Adjusting
78183B Clamp, Accelerator Control Cable
78191D Clamp, Accelerator Control Cable
78193A Support, Accelerator Control Cable, NO.3
78194A Support, Accelerator Control Cable, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
