Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

14 part groups · 5 illustrations

Illustrations

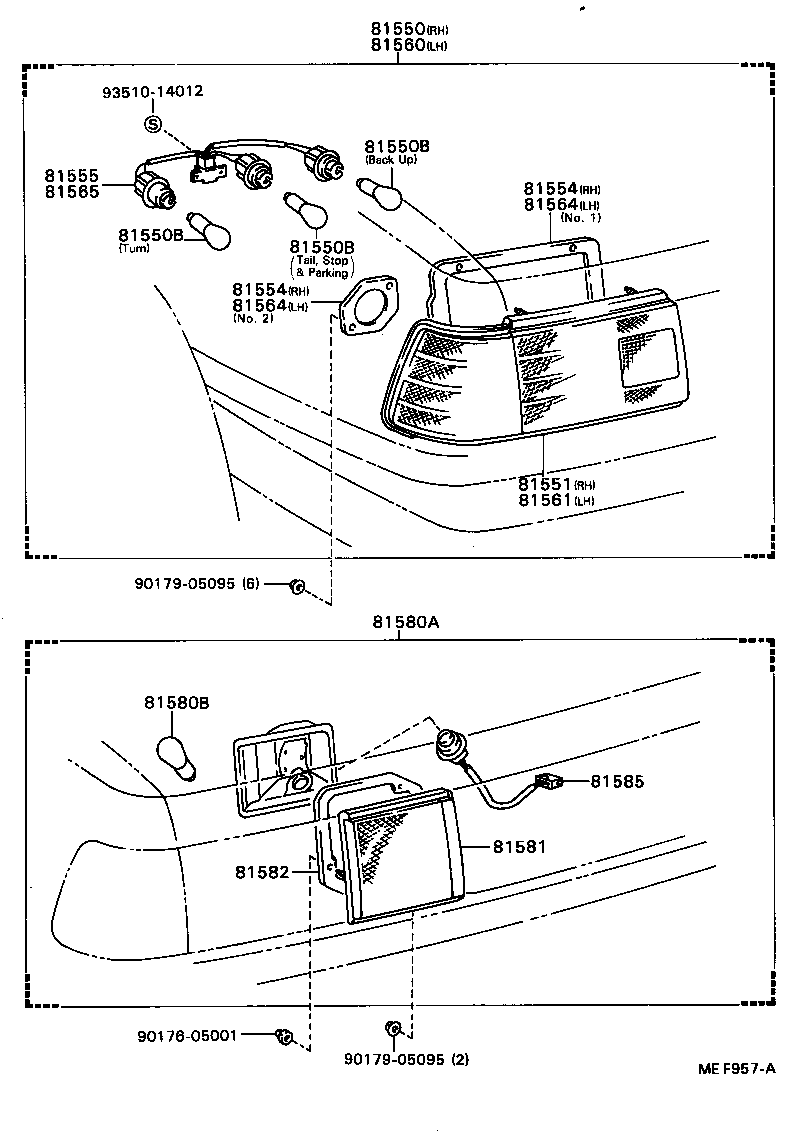

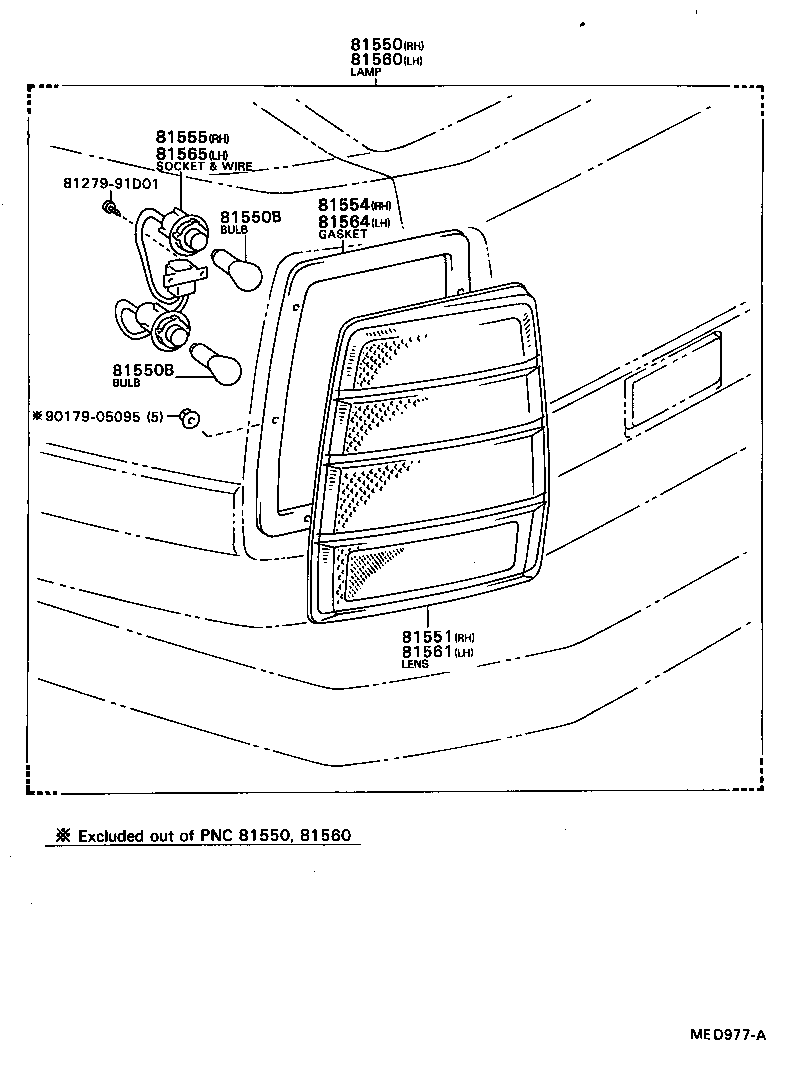

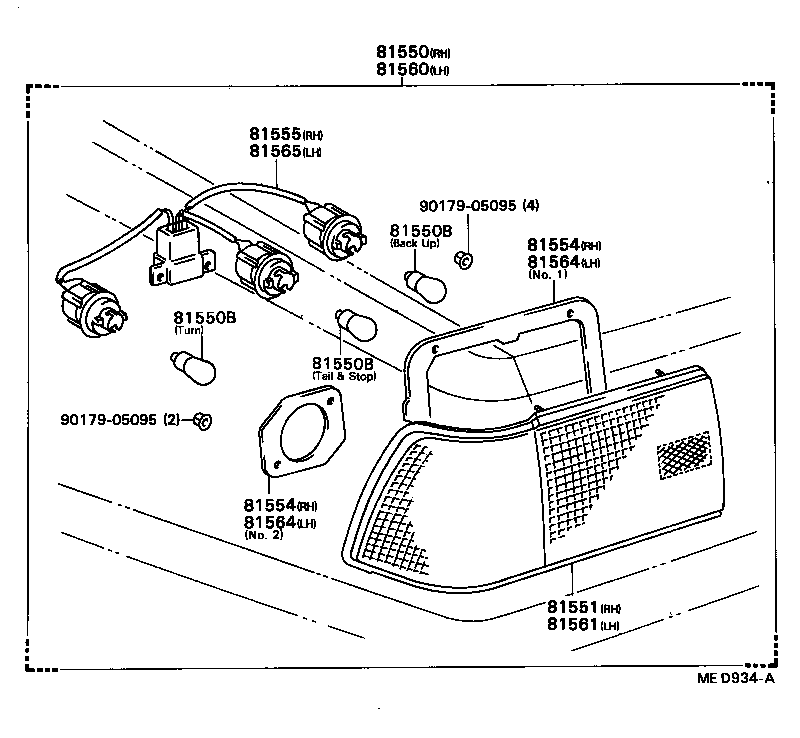

Figure MED911A MED911A 1983-10 → 1985-08 Figure MED911A MED911A 1985-08 → 1986-08 Figure MEF957A MEF957A 1985-08 → — Figure MED934A MED934A 1983-10 → 1985-08 Figure MED977A MED977A 1983-10 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580A Lamp Assy, Rear
81580B Bulb (FOR REAR LAMP)
81581 Lens, Rear Lamp
81582 Gasket, Rear Lamp
81585 Socket & Wire, Rear Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
