Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back UP Lamp

10 part groups · 4 illustrations

Illustrations

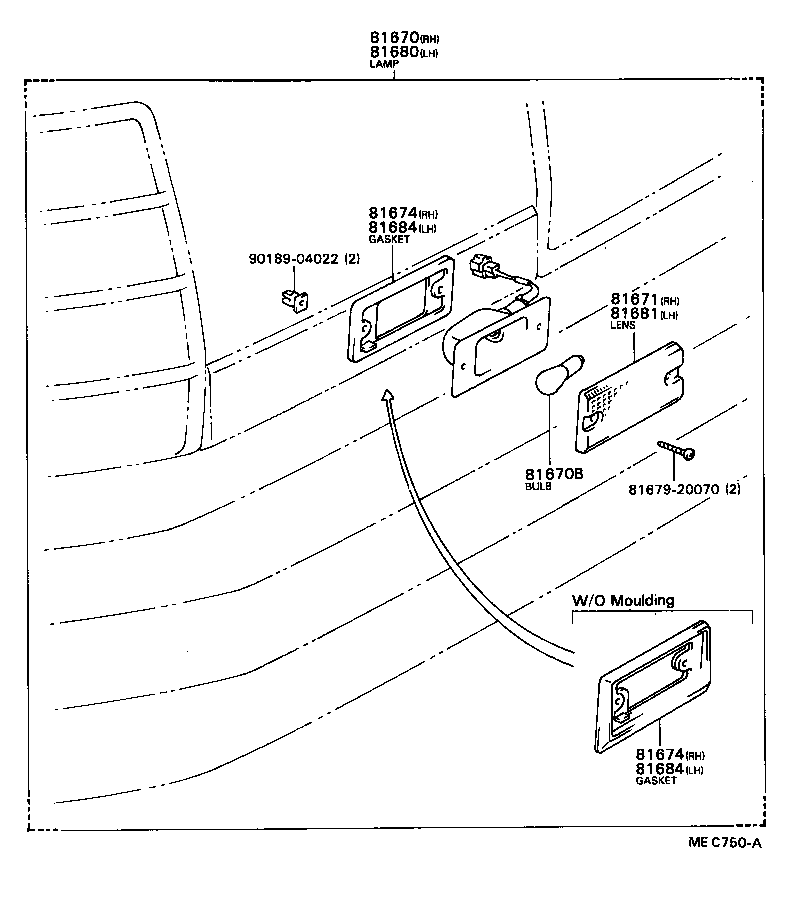

Figure MED912B MED912B 1983-10 → 1985-08 Figure MED935 MED935 1983-10 → 1985-08 Figure MED935 MED935 1985-08 → 1986-08 Figure MEC750A MEC750A 1983-10 → —

Part groups

PNCDescription
81670 Lamp Assy, Back-up, RH
81670B Bulb(FOR BACK-UP LAMP)
81671 Lens, Back-up Lamp, RH
81672 Gasket, Back-up Lamp Lens, RH
81674 Gasket, Back-up Lamp Body, RH
81675 Socket & Wire, Back-up Lamp
81680 Lamp Assy, Back UP, LH
81681 Lens, Back-up Lamp, LH
81682 Gasket, Back UP Lamp Lens, LH
81684 Gasket, Back UP Lamp Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
