Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

10 part groups · 2 illustrations

Illustrations

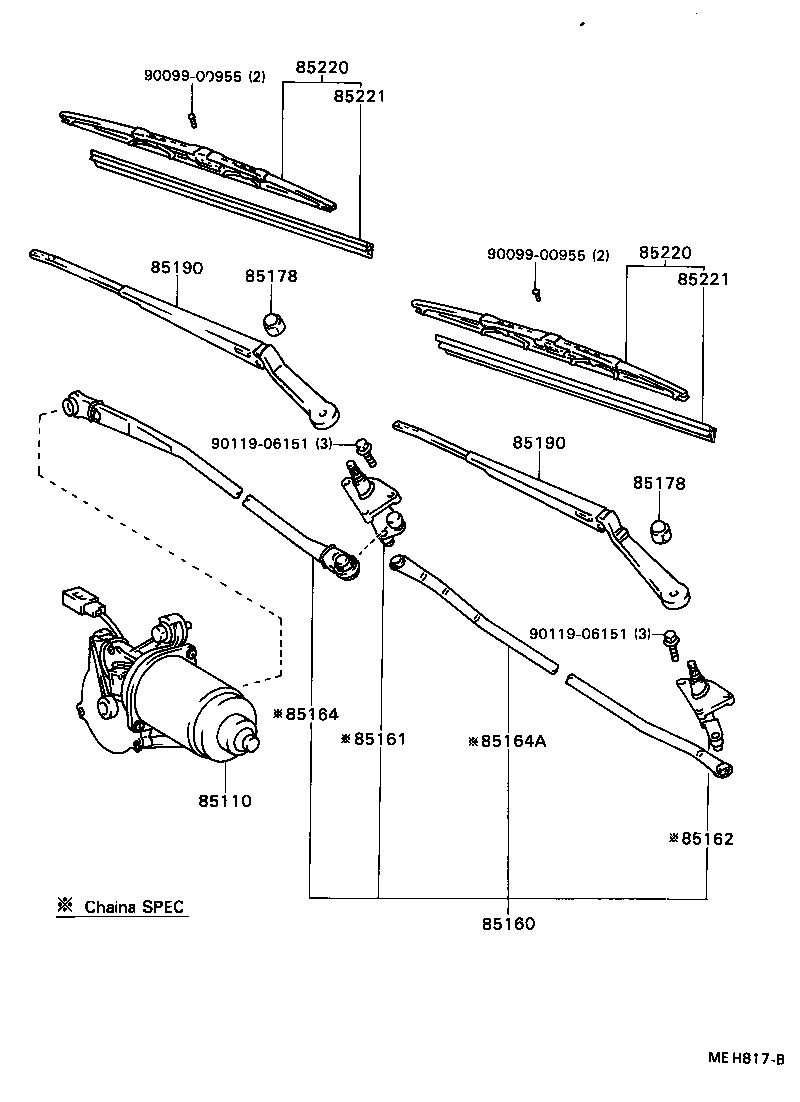

Figure MED973A MED973A 1983-10 → — Figure MEH817B MEH817B 1983-10 → —

Part groups

PNCDescription
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85161 Pivot, Windshield Wiper Link, NO.1
85162 Pivot, Windshield Wiper Link, NO.2
85164 Rod, Windshield Wiper Link, NO.1
85164A Rod, Windshield Wiper Link, NO.2
85178 Nut (FOR FRONT WIPER ARM SETTING)
85190 Arm Assy, Windshield Wiper
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
