Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

13 part groups · 3 illustrations

Illustrations

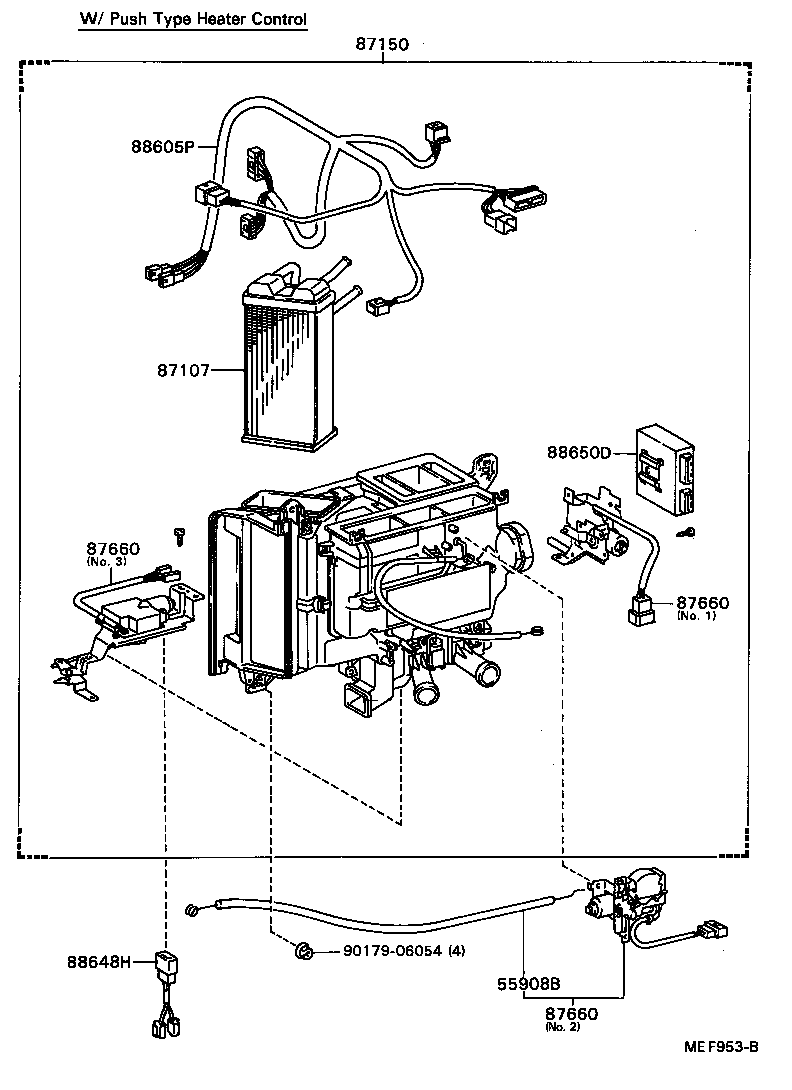

Figure MED962D MED962D 1983-10 → — Figure MEF953B MEF953B 1986-09 → — Figure MED963A MED963A 1983-10 → —

Part groups

PNCDescription
55908B Cable Sub-assy, Air Inlet Damper Control
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87130C Relay, Heater Blower Motor
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87660 Servo Assy, Air Conditioner
88605P Harness Sub-assy, Air Conditioner Wiring
88648H Wire, Air Conditioner
88650D Amplifier Assy
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
