Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

21 part groups · 5 illustrations

Illustrations

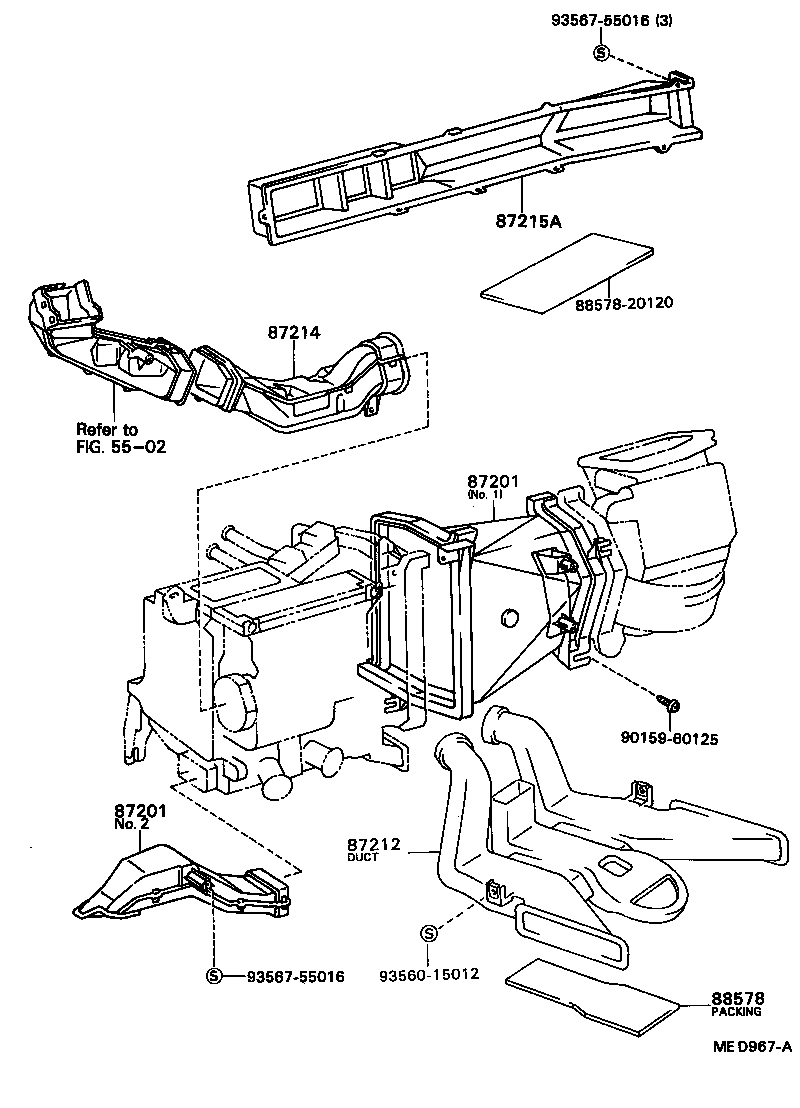

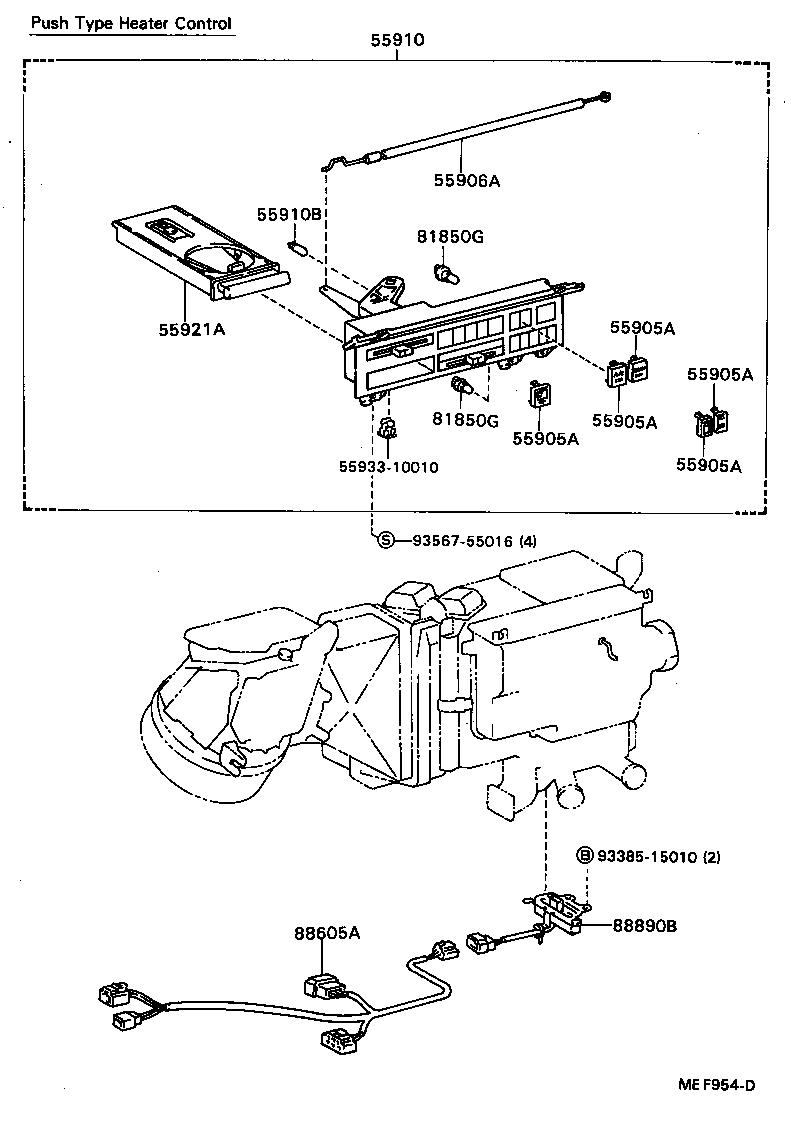

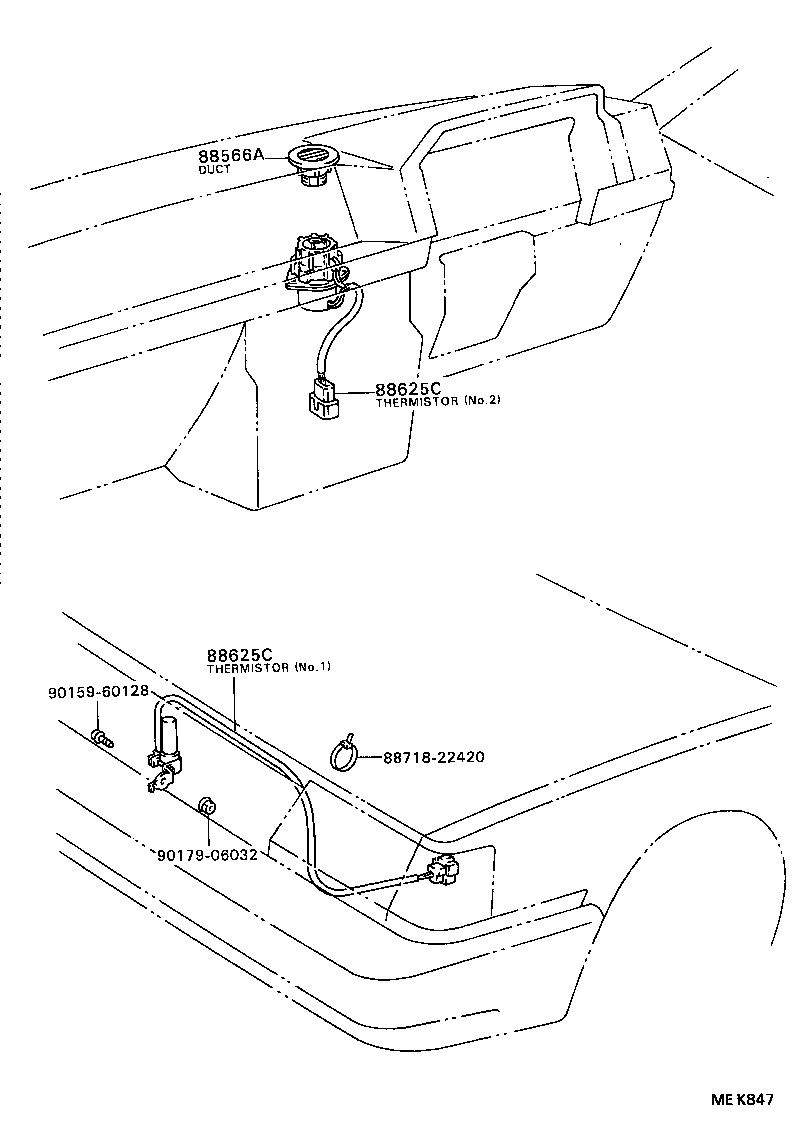

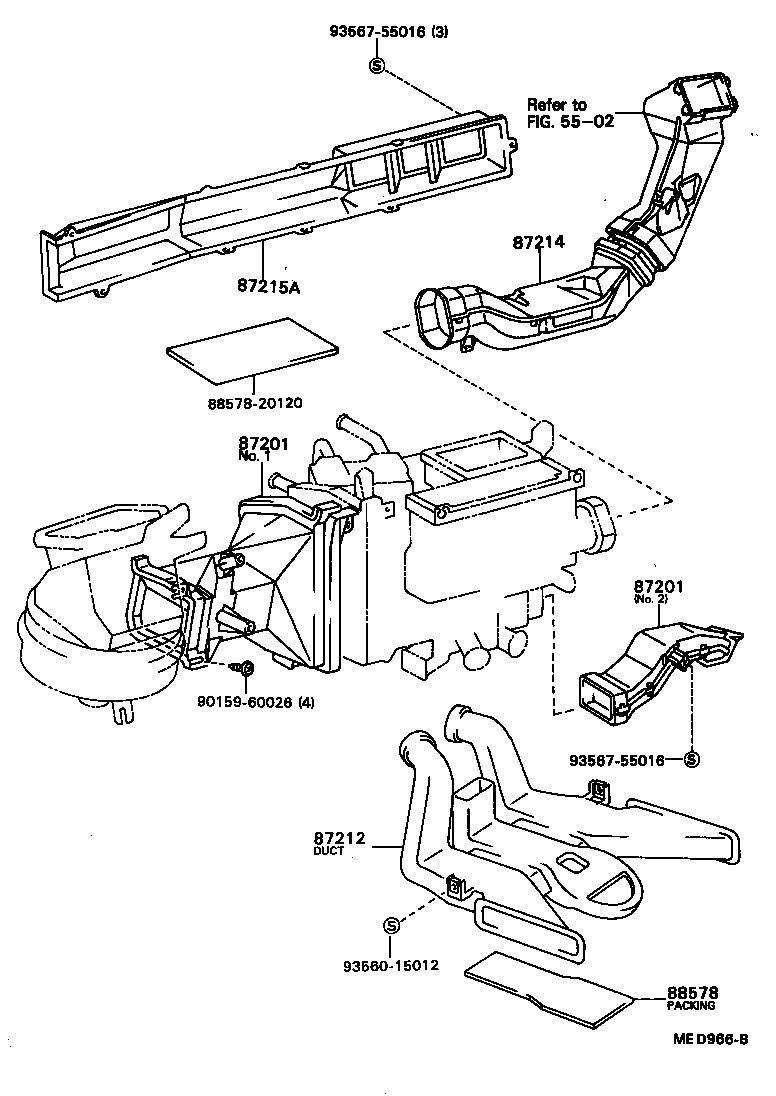

Figure MED965D MED965D 1983-10 → — Figure MEF954D MEF954D 1986-09 → — Figure MED966B MED966B 1983-10 → — Figure MED967A MED967A 1983-10 → — Figure MEK847 MEK847 1986-09 → —

Part groups

PNCDescription
55903 Lever Sub-assy, Heater Control
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910B Bulb, Heater Control
55921A Retainer, Heater Control
55941A Guide, Heater Control
81850G Lamp Assy, Indicator
87201 Duct Sub-assy, Air, NO.1
87212 Duct, Air, Rear NO.1
87214 Duct, Air, Side NO.1 RH
87215A Duct, Air, Side NO.2 LH
87284 Resistor Sub-assy, Variable
88566A Duct, Cooler Air, NO.1
88578 Paking, Cooler Air Duct
88605A Harness Sub-assy, Cooler Wiring
88625C Thermistor, Cooler
88890B Switch Assy, Thermostat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
