Toyota Corona/Carina 2

1983-10 → 1987-11 · chassis AT151,ST15#,CT150 · catalogue 271210 · Europe

Discontinued model Data version 1991-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

7 part groups · 3 illustrations

Illustrations

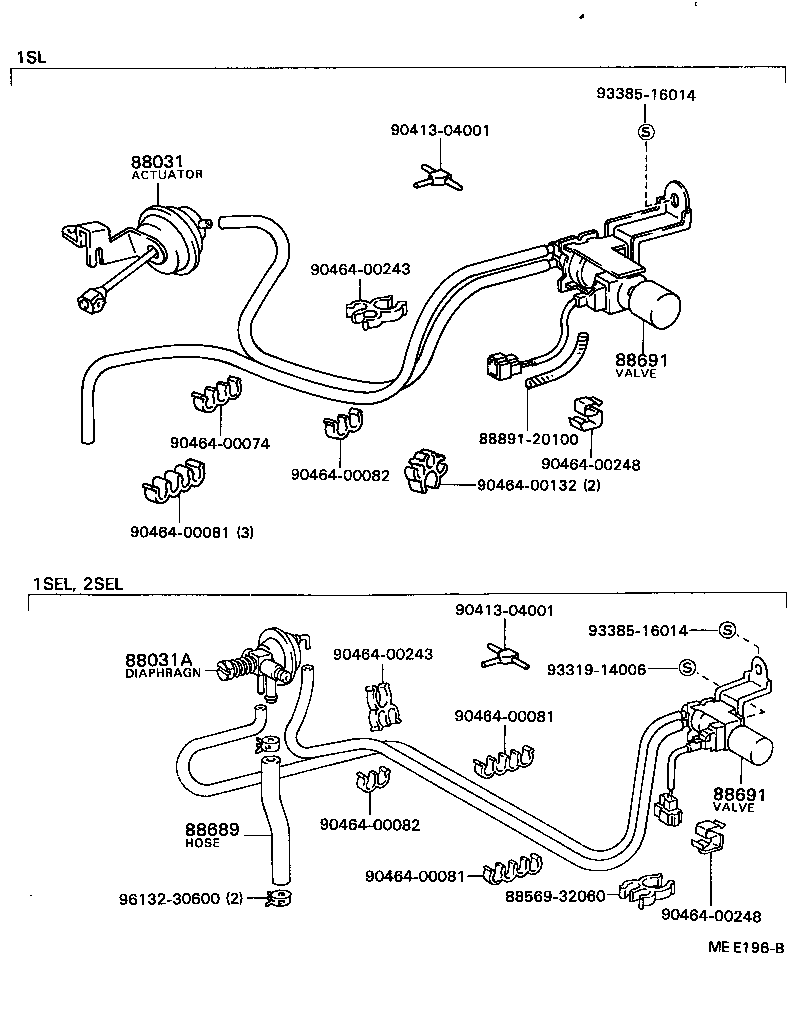

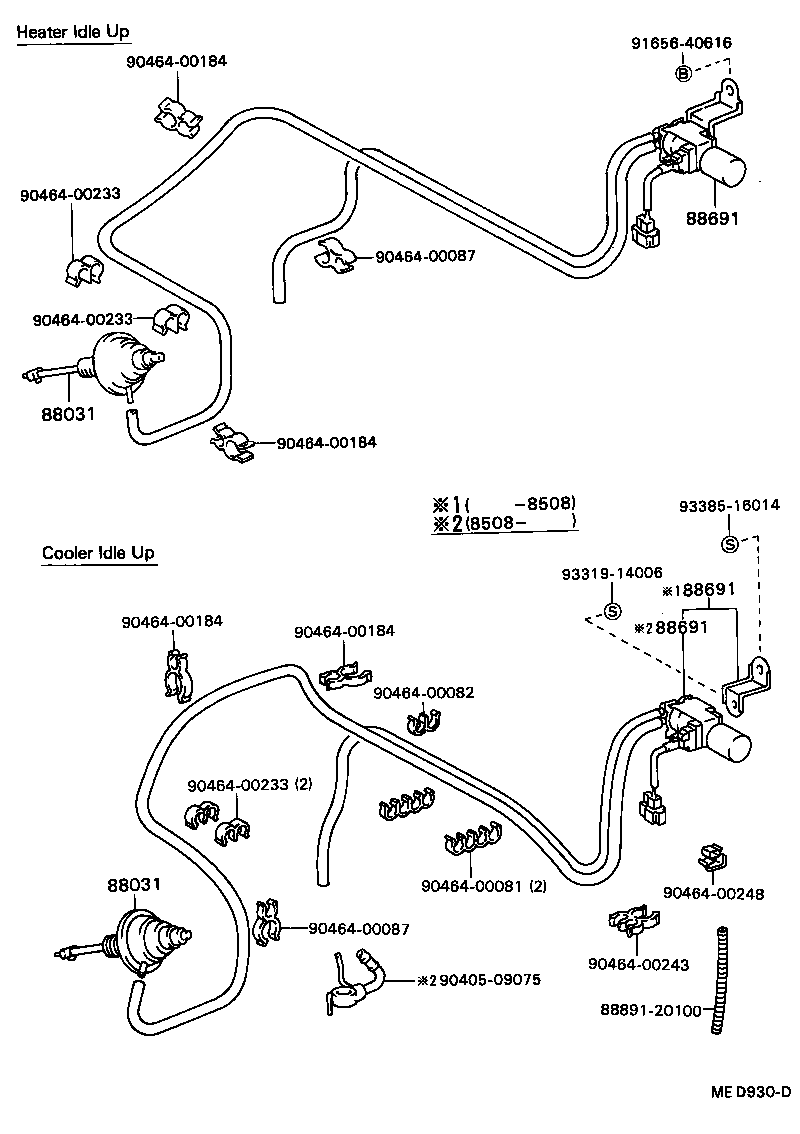

Figure MEE195D MEE195D 1983-10 → — Figure MEE196B MEE196B 1983-10 → — Figure MED930D MED930D 1983-10 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88031N Bracket, Idle-up Actuator
88689 Hose, Damper Control Diaphragm Vacuum
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691B Valve, Magnet (FOR WATER VALVE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
