Toyota Carina 2
1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe
Discontinued model
Data version 1993-08

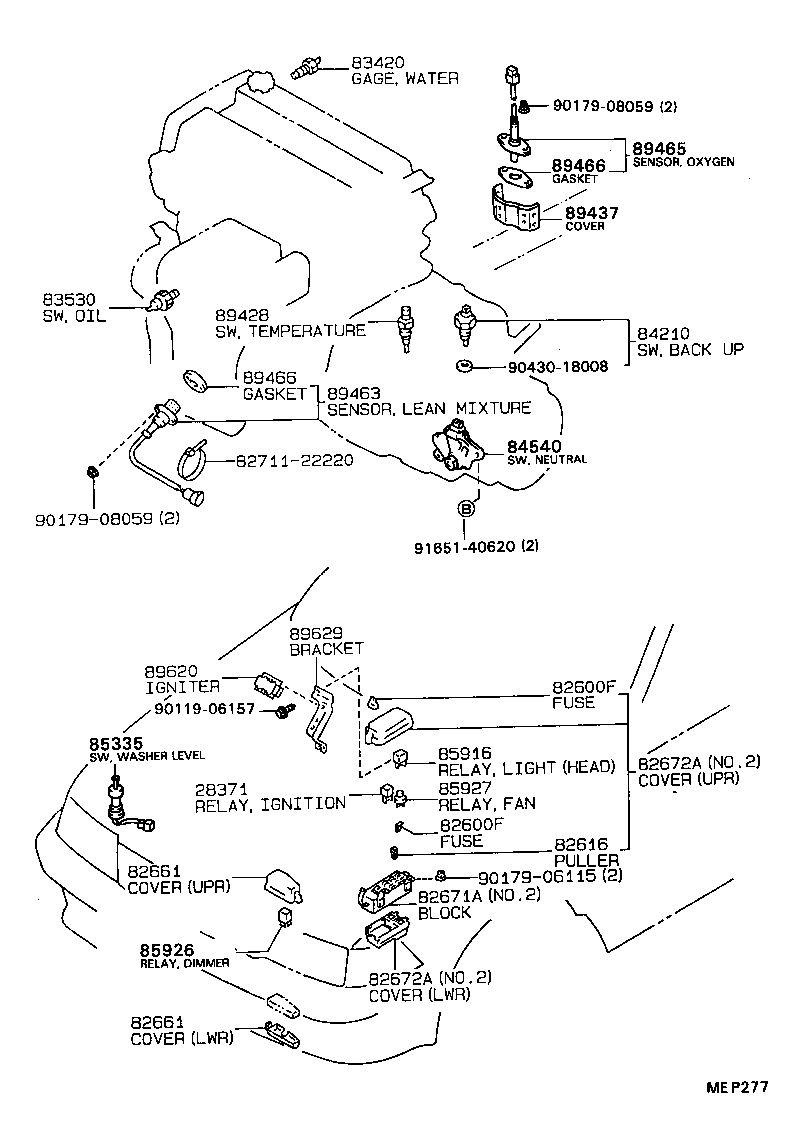

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28371 — Relay, Ignition, NO.1 | ||||
| 90987-04002 |
Relay, Ignition, NO.1
1987-12 → 1992-11
ended
|
4AF#,2C,3SFE AT171,CT170,ST171 | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-07011 note |
Fuse, Fuse Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1987-12 → 1988-02
ended
|
AT171,CT170,ST171 RHD | — | |
| 90982-09002 note |
Fuse, Fuse Block
1988-02 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1987-12 → 1988-02
ended
|
AT171,CT170,ST171 LHD | — | |
| 90982-09003 note |
Fuse, Fuse Block
1991-03 → 1992-03
ended
|
ST171 LHD 4FC W | — | |
| 90982-09003 note |
Fuse, Fuse Block
1991-07 → 1992-11
ended
|
AT171 WG EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-11 → 1991-03
ended
|
ST171 LHD 4FC W | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-11 → 1991-03
ended
|
ST171 LHD SED 5F +1 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-11 → 1991-03
ended
|
ST171 4FC G;ST171 LB +2 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1990-08 → 1991-03
ended
|
ST171 LHD LB W | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-11 → 1991-07
ended
|
AT171 WG EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-11 → 1992-03
ended
|
AT171 GL EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-11 → 1992-03
ended
|
AT171 (LB,SED) XL EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-11 → 1992-03
ended
|
ST171 SED 5F G | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-11 → 1990-08
ended
|
ST171 LHD LB W | — | |
| 90982-09003 note |
Fuse, Fuse Block
1991-03 → 1992-03
ended
|
ST171 4FC G;ST171 LB +5 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1988-02
ended
|
AT171 SED 5F XL +1 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 LHD | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1992-11
ended
|
AT171 RHD;AT171,ST171 EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1988-02 → 1992-11
ended
|
AT171,CT170,ST171 LHD | — | |
| 90982-09003 note |
Fuse, Fuse Block
1988-02 → 1992-11
ended
|
ST171 RHD;AT171,CT170 CBR,DSL | — | |
| 90982-09003 note |
Fuse, Fuse Block
1988-06 → 1989-02
ended
|
AT171 XL EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1988-02
ended
|
AT171,CT170,ST171 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1989-02
ended
|
ST171 GL G | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1989-02
ended
|
ST171 XL;AT171 XL G +1 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1989-02
ended
|
AT171 LB 4FC G | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1989-02
ended
|
AT171 SED GL G +6 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1988-02 → 1989-02
ended
|
ST171 LHD GL | — | |
| 90982-09003 note |
Fuse, Fuse Block
1988-02 → 1989-02
ended
|
AT171 GL EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1988-02 → 1989-02
ended
|
ST171 XL | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-08 → 1989-11
ended
|
AT171 XL EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-02 → 1989-08
ended
|
AT171 GL EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-02 → 1989-08
ended
|
ST171 XL | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-02 → 1989-08
ended
|
AT171 XL EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-02 → 1989-11
ended
|
ST171 GL G | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-02 → 1989-11
ended
|
AT171 GL G CBR | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-02 → 1989-11
ended
|
ST171 XL;AT171 XL G +1 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-02 → 1989-11
ended
|
ST171 LHD GL | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-08 → 1989-11
ended
|
AT171 GL EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-08 → 1989-11
ended
|
ST171 XL | — | |
| 90982-09004 note |
Fuse, Fuse Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1988-02 → 1992-11
ended
|
AT171,CT170,ST171 LHD | — | |
| 90982-09005 note |
Fuse, Fuse Block
1987-12 → 1988-02
ended
|
AT171,CT170,ST171 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1988-02 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 90982-09005 note |
Fuse, Fuse Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1989-11 → 1990-08
ended
|
ST171 LHD LB W | — | |
| 82616 — Puller, Fuse | ||||
| 82616-12010 |
Puller, Fuse
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 82661 — Cover, Relay Block, NO.1 | ||||
| 82661-20080 note |
Cover, Relay Block, NO.1
1987-12 → 1992-11
ended
|
CT170,ST171 RHD | — | |
| 82661-20090 note |
Cover, Relay Block, NO.1
1987-12 → 1988-02
ended
|
CT170,ST171 RHD | — | |
| 82661-20090 note |
Cover, Relay Block, NO.1
1987-12 → 1988-02
ended
|
AT171,CT170,ST171 LHD (DSL,EFI) | — | |
| 82661-20110 note |
Cover, Relay Block, NO.1
1987-12 → 1992-03
ended
|
ST171 LHD GL | — | |
| 82672-20380 note |
Cover, Relay Block, NO.1
1987-12 → 1992-03
ended
|
ST171 RHD | — | |
| 82672-20380 note |
Cover, Relay Block, NO.1
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 LHD (DSL,EFI) | — | |
| 82672-20380 note |
Cover, Relay Block, NO.1
1987-12 → 1992-11
ended
|
CT170 RHD | — | |
| 82672-20390 note |
Cover, Relay Block, NO.1
1987-12 → 1992-03
ended
|
ST171 RHD | — | |
| 82672-20400 note |
Cover, Relay Block, NO.1
1987-12 → 1988-02
ended
|
ST171 RHD | — | |
| 82672-20400 note |
Cover, Relay Block, NO.1
1987-12 → 1988-02
ended
|
ST171 LHD GL | — | |
| 82672-20401 note |
Cover, Relay Block, NO.1
1988-02 → 1992-03
ended
|
ST171 LHD GL | — | |
| 82672-20401 note |
Cover, Relay Block, NO.1
1988-02 → 1992-03
ended
|
ST171 RHD | — | |
| 82672-20401 note |
Cover, Relay Block, NO.1
1989-11 → 1992-03
ended
|
AT171 GL EFI | — | |
| 82672-20470 note |
Cover, Relay Block, NO.1
1988-02 → 1989-11
ended
|
CT170,ST171 RHD | — | |
| 82672-20470 note |
Cover, Relay Block, NO.1
1988-02 → 1992-11
ended
|
AT171,CT170,ST171 LHD (DSL,EFI) | — | |
| 82672-20470 note |
Cover, Relay Block, NO.1
1990-09 → 1992-11
ended
|
CT170,ST171 RHD | — | |
| 82671A — Block, Junction | ||||
| 82671-20090 note |
Block, Junction
1989-11 → 1990-08
ended
|
ST171 LHD LB W | — | |
| 82671-20090 note |
Block, Junction
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 82671-20100 note |
Block, Junction
1987-12 → 1989-02
ended
|
CT170 LHD;AT171 SED 4FC +6 | — | |
| 82671-20100 note |
Block, Junction
1988-06 → 1989-02
ended
|
AT171 XL EFI | — | |
| 82671-20100 note |
Block, Junction
1988-06 → 1989-02
ended
|
ST171 5F XL | — | |
| 82671-20100 note |
Block, Junction
1987-12 → 1989-02
ended
|
ST171 4FC XL;AT171 XL +2 | — | |
| 82671-20100 note |
Block, Junction
1987-12 → 1989-02
ended
|
CT170 RHD;AT171 RHD XL;AT171,ST171 +5 | — | |
| 82671-20100 note |
Block, Junction
1989-02 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 82671-20110 note |
Block, Junction
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 82671-20110 note |
Block, Junction
1989-11 → 1990-08
ended
|
ST171 LHD LB W | — | |
| 82671-20120 note |
Block, Junction
1989-08 → 1989-11
ended
|
AT171 SED 4FC XL +5 | — | |
| 82671-20120 note |
Block, Junction
1989-08 → 1989-11
ended
|
AT171 LB XL G +1 | — | |
| 82671-20120 note |
Block, Junction
1989-08 → 1989-11
ended
|
ST171 XL;AT171 (SED,WG) XL +2 | — | |
| 82671-20120 note |
Block, Junction
1989-08 → 1989-11
ended
|
AT171,CT170 LHD XL (DSL,EFI) | — | |
| 82671-20120 note |
Block, Junction
1991-07 → 1992-11
ended
|
AT171 WG EFI | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1991-03
ended
|
ST171 LHD 4FC W | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1991-03
ended
|
ST171 LHD LB W | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1991-03
ended
|
ST171 LHD SED 5F +1 | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1991-03
ended
|
ST171 4FC G;ST171 LB +2 | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1991-07
ended
|
AT171 WG EFI | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-03
ended
|
AT171 LHD SED XL +1 | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-03
ended
|
AT171 GL EFI | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-03
ended
|
AT171 LHD SED GL +1 | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-03
ended
|
ST171 SED 5F G | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-03
ended
|
AT171 LHD 4FC GL | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-03
ended
|
AT171 LHD LB 5F +2 | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-03
ended
|
CT170 LHD (LB,SED);AT171 LHD +3 | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-03
ended
|
AT171 (LB,SED) XL EFI | — | |
| 82671-20120 note |
Block, Junction
1991-03 → 1992-03
ended
|
ST171 4FC G;ST171 LB +5 | — | |
| 82671-20120 note |
Block, Junction
1991-03 → 1992-03
ended
|
ST171 LHD 4FC W | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-11
ended
|
AT171,CT170 LHD WG (CBR,DSL) | — | |
| 82671-20120 note |
Block, Junction
1989-02 → 1989-11
ended
|
ST171 LHD GL | — | |
| 82671-20120 note |
Block, Junction
1988-02 → 1989-02
ended
|
AT171 SED 4FC XL +8 | — | |
| 82671-20120 note |
Block, Junction
1988-02 → 1989-02
ended
|
ST171 XL;AT171 XL G +1 | — | |
| 82671-20120 note |
Block, Junction
1988-02 → 1989-02
ended
|
AT171 SED 5F XL +1 | — | |
| 82671-20120 note |
Block, Junction
1988-02 → 1989-02
ended
|
AT171 LHD GL | — | |
| 82671-20120 note |
Block, Junction
1988-02 → 1989-02
ended
|
ST171 LHD GL | — | |
| 82671-20120 note |
Block, Junction
1989-02 → 1989-08
ended
|
AT171 GL G | — | |
| 82671-20120 note |
Block, Junction
1987-12 → 1988-02
ended
|
AT171 SED 5F XL +1 | — | |
| 82671-20120 note |
Block, Junction
1989-02 → 1989-08
ended
|
ST171 XL;AT171 XL G +1 | — | |
| 82671-20120 note |
Block, Junction
1989-02 → 1989-08
ended
|
AT171 SED 4FC XL +8 | — | |
| 82671-20120 note |
Block, Junction
1987-12 → 1988-02
ended
|
CT170,ST171 171 LHD;AT171 LHD +12 | — | |
| 82671-20120 note |
Block, Junction
1989-08 → 1989-11
ended
|
AT171 GL G | — | |
| 82671-20120 note |
Block, Junction
1989-02 → 1989-11
ended
|
AT171 LHD GL W | — | |
| 82671-20120 note |
Block, Junction
1989-02 → 1989-11
ended
|
AT171 SED 5F XL +1 | — | |
| 82671-20140 note |
Block, Junction
1989-11 → 1992-11
ended
|
CT170 LHD WG | — | |
| 82671-20140 note |
Block, Junction
1989-11 → 1992-11
ended
|
AT171 WG EFI | — | |
| 82671-20140 note |
Block, Junction
1991-05 → 1992-11
ended
|
AT171 LHD WG CBR | — | |
| 82671-20140 note |
Block, Junction
1989-02 → 1992-11
ended
|
AT171,CT170,ST171 LHD | — | |
| 82671-20140 note |
Block, Junction
1987-12 → 1988-02
ended
|
AT171 SED 5F XL +1 | — | |
| 82671-20140 note |
Block, Junction
1989-11 → 1992-03
ended
|
AT171,ST171 LHD LB GL | — | |
| 82671-20140 note |
Block, Junction
1989-11 → 1992-03
ended
|
CT170 LHD (LB,SED) | — | |
| 82671-20140 note |
Block, Junction
1989-11 → 1992-03
ended
|
AT171,ST171 LHD SED GL | — | |
| 82671-20140 note |
Block, Junction
1988-02 → 1989-02
ended
|
AT171 SED 5F XL +1 | — | |
| 82671-20140 note |
Block, Junction
1988-02 → 1989-02
ended
|
ST171 4FC XL;AT171 XL +2 | — | |
| 82671-20140 note |
Block, Junction
1988-02 → 1989-02
ended
|
AT171,ST171 LHD GL;AT171 SED +3 | — | |
| 82671-20140 note |
Block, Junction
1988-06 → 1989-02
ended
|
ST171 5F XL | — | |
| 82671-20140 note |
Block, Junction
1988-06 → 1989-02
ended
|
AT171 XL EFI | — | |
| 82671-20140 note |
Block, Junction
1989-02 → 1989-04
ended
|
AT171 SED 5F XL +1 | — | |
| 82671-20140 note |
Block, Junction
1989-02 → 1989-04
ended
|
AT171 WG 5F G +1 | — | |
| 82671-20140 note |
Block, Junction
1989-11 → 1991-05
ended
|
AT171 LHD WG CBR | — | |
| 82671-20140 note |
Block, Junction
1989-02 → 1989-04
ended
|
AT171 SED 4FC XL +5 | — | |
| 82671-20140 note |
Block, Junction
1989-02 → 1989-04
ended
|
AT171,CT170 LHD XL (DSL,EFI) | — | |
| 82671-20140 note |
Block, Junction
1989-02 → 1989-04
ended
|
ST171 XL;AT171 4FC XL +6 | — | |
| 82671-20140 note |
Block, Junction
1988-02 → 1989-02
ended
|
CT170 LHD;AT171 SED 4FC +6 | — | |
| 82671-20160 note |
Block, Junction
1990-08 → 1992-11
ended
|
AT171,ST171 EFI | — | |
| 82671-20160 note |
Block, Junction
1987-12 → 1990-08
ended
|
AT171,ST171 EFI | — | |
| 82671-20160 note |
Block, Junction
1989-11 → 1990-08
ended
|
AT171 5F EFI | — | |
| 82671-20170 note |
Block, Junction
1987-12 → 1990-08
ended
|
AT171,ST171 EFI | — | |
| 82671-20170 note |
Block, Junction
1989-11 → 1990-08
ended
|
AT171 5F EFI | — | |
| 82671-20170 |
Block, Junction
1990-08 → 1992-11
ended
|
CT170 | — | |
| 82671-20170 note |
Block, Junction
1990-08 → 1992-11
ended
|
AT171,ST171 EFI | — | |
| 82671-20170 note |
Block, Junction
1987-12 → 1990-08
ended
|
CT170 | — | |
| 82671-32030 note |
Block, Junction
1989-11 → 1992-11
ended
|
AT171 CBR | — | |
| 82671-32030 note |
Block, Junction
1987-12 → 1989-11
ended
|
AT171 CBR | — | |
| 82672A — Cover, Junction Block | ||||
| 82672-20200 note |
Cover, Junction Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 DSL,EFI | — | |
| 82672-20280 note |
Cover, Junction Block
1987-12 → 1988-02
ended
|
CT170 RHD | — | |
| 82672-20280 note |
Cover, Junction Block
1987-12 → 1988-02
ended
|
CT170 LHD | — | |
| 82672-20281 note |
Cover, Junction Block
1988-02 → 1989-11
ended
|
CT170 RHD | — | |
| 82672-20281 note |
Cover, Junction Block
1988-02 → 1989-11
ended
|
CT170 LHD | — | |
| 82672-20290 note |
Cover, Junction Block
1987-12 → 1988-02
ended
|
AT171,ST171 LHD EFI | — | |
| 82672-20290 note |
Cover, Junction Block
1987-12 → 1988-02
ended
|
ST171 RHD | — | |
| 82672-20291 note |
Cover, Junction Block
1988-02 → 1989-11
ended
|
ST171 RHD | — | |
| 82672-20291 note |
Cover, Junction Block
1988-02 → 1989-11
ended
|
AT171,ST171 LHD EFI | — | |
| 82672-20310 note |
Cover, Junction Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 82672-20310 note |
Cover, Junction Block
1989-11 → 1990-08
ended
|
ST171 LHD LB W | — | |
| 82672-20320 note |
Cover, Junction Block
1989-11 → 1990-08
ended
|
ST171 LHD LB W | — | |
| 82672-20320 note |
Cover, Junction Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 LHD | — | |
| 82672-20330 note |
Cover, Junction Block
1987-12 → 1988-02
ended
|
AT171,CT170,ST171 RHD | — | |
| 82672-20340 note |
Cover, Junction Block
1989-11 → 1990-08
ended
|
ST171 LHD LB W | — | |
| 82672-20340 note |
Cover, Junction Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 LHD | — | |
| 82672-20410 note |
Cover, Junction Block
1987-12 → 1989-11
ended
|
ST171 RHD | — | |
| 82672-20420 note |
Cover, Junction Block
1987-12 → 1989-11
ended
|
CT170 RHD | — | |
| 82672-20440 note |
Cover, Junction Block
1987-12 → 1988-02
ended
|
AT171 RHD | — | |
| 82672-20440 note |
Cover, Junction Block
1987-12 → 1988-02
ended
|
AT171 LHD CBR | — | |
| 82672-20441 note |
Cover, Junction Block
1988-02 → 1989-11
ended
|
AT171 LHD CBR | — | |
| 82672-20441 note |
Cover, Junction Block
1988-02 → 1989-11
ended
|
AT171 RHD | — | |
| 82672-20450 note |
Cover, Junction Block
1987-12 → 1989-11
ended
|
AT171 RHD | — | |
| 82672-20460 note |
Cover, Junction Block
1989-11 → 1990-08
ended
|
ST171 LHD LB W | — | |
| 82672-20460 note |
Cover, Junction Block
1988-02 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 82672-20630 note |
Cover, Junction Block
1989-11 → 1992-11
ended
|
AT171 LHD CBR | — | |
| 82672-20630 note |
Cover, Junction Block
1989-11 → 1992-11
ended
|
AT171 RHD | — | |
| 82672-20640 note |
Cover, Junction Block
1989-11 → 1992-11
ended
|
AT171 RHD | — | |
| 82672-20670 note |
Cover, Junction Block
1989-11 → 1992-03
ended
|
ST171 RHD | — | |
| 82672-20670 note |
Cover, Junction Block
1989-11 → 1992-11
ended
|
AT171,ST171 LHD EFI | — | |
| 82672-20680 note |
Cover, Junction Block
1989-11 → 1992-03
ended
|
ST171 RHD | — | |
| 82672-20700 note |
Cover, Junction Block
1989-11 → 1992-11
ended
|
AT171 5F EFI | — | |
| 82672-20710 note |
Cover, Junction Block
1989-11 → 1992-11
ended
|
CT170 RHD | — | |
| 82672-20710 note |
Cover, Junction Block
1989-11 → 1992-11
ended
|
CT170 LHD | — | |
| 82672-20720 note |
Cover, Junction Block
1989-11 → 1992-11
ended
|
CT170 RHD | — | |
| 83420 — Gage Assy, Water Temperature Sender | ||||
| 83420-16020 |
Gage Assy, Water Temperature Sender
1987-12 → 1992-11
ended
|
AT171,ST171 | — | |
| 83420-20020 |
Gage Assy, Water Temperature Sender
1987-12 → 1992-11
ended
|
CT170 | — | |
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-30050 |
Switch Assy, Oil Pressure (FOR ENGINE)
1987-12 → 1989-11
ended
|
AT171 | — | |
| 83530-30050 |
Switch Assy, Oil Pressure (FOR ENGINE)
1989-11 → 1990-03
ended
|
AT171 | — | |
| 83530-30051 |
Switch Assy, Oil Pressure (FOR ENGINE)
1990-03 → 1992-11
ended
|
AT171 | — | |
| 83530-30060 |
Switch Assy, Oil Pressure (FOR ENGINE)
1987-12 → 1992-11
ended
|
CT170 | — | |
| 83530-30080 |
Switch Assy, Oil Pressure (FOR ENGINE)
1987-12 → 1992-03
ended
|
ST171 | — | |
| 84210 — Switch Assy, Back-up Lamp | ||||
| 84210-12040 |
Switch Assy, Back-up Lamp
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 5F | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-16030 |
Switch Assy, Neutral Start
1987-12 → 1992-03
ended
|
AT171,ST171 4FC | — | |
| 85335 — Switch Assy, Washer Level Warning | ||||
| 85397-20250 |
Switch Assy, Washer Level Warning
1989-11 → 1992-03
ended
|
AT171 LB GL EFI | — | |
| 85397-20250 |
Switch Assy, Washer Level Warning
1990-11 → 1992-03
ended
|
AT171,CT170 LHD SED 5F +2 | — | |
| 85397-20250 |
Switch Assy, Washer Level Warning
1990-11 → 1992-11
ended
|
ST171;AT171 AT171,CT170 4FC LHD +10 | — | |
| 85397-20250 |
Switch Assy, Washer Level Warning
1989-11 → 1990-11
ended
|
AT171,CT170,ST171 | — | |
| 85916 — Relay, Light Control | ||||
| 90987-02002 note |
Relay, Light Control
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90987-02002 note |
Relay, Light Control
1989-11 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90987-02004 note |
Relay, Light Control
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90987-02004 note |
Relay, Light Control
1989-11 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90987-02006 note |
Relay, Light Control
1987-12 → 1990-08
ended
|
AT171,CT170,ST171 | — | |
| 90987-02006 |
Relay, Light Control
1990-08 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 85926 — Relay, Headlamp Dimmer | ||||
| 85926-30020 |
Relay, Headlamp Dimmer
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 85926-30020 |
Relay, Headlamp Dimmer
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 LHD | — | |
| 85927 — Relay, Cooling Fan | ||||
| 90987-03001 |
Relay, Cooling Fan
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 89428 — Switch, Temperature Detect, NO.2 | ||||
| 89428-15011 note |
Switch, Temperature Detect, NO.2
1987-12 → 1992-11
ended
|
AT171 | — | |
| 89428-15011 |
Switch, Temperature Detect, NO.2
1992-02 → 1992-11
ended
|
ST171 | — | |
| 89428-15030 |
Switch, Temperature Detect, NO.2
1987-12 → 1992-11
ended
|
CT170 | — | |
| 89428-20060 note |
Switch, Temperature Detect, NO.2
1987-12 → 1989-11
ended
|
ST171 RHD | — | |
| 89428-20060 note |
Switch, Temperature Detect, NO.2
1987-12 → 1989-11
ended
|
ST171 LHD | — | |
| 89428-20060 |
Switch, Temperature Detect, NO.2
1989-11 → 1992-03
ended
|
ST171 | — | |
| 89437 — Cover, Sensor | ||||
| 89437-32020 |
Cover, Sensor
1987-12 → 1989-11
ended
|
ST171 G;AT171 G CBR | — | |
| 89437-32020 |
Cover, Sensor
1989-11 → 1992-11
ended
|
AT171,ST171 G | — | |
| 89463 — Sensor, Lean Mixture | ||||
| 89463-29025 |
Sensor, Lean Mixture
1987-12 → 1989-11
ended
|
AT171 EFI | — | |
| 89463-29035 |
Sensor, Lean Mixture
1989-11 → 1992-11
ended
|
AT171 5F EFI | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-29245 |
Sensor, Oxygen
1987-12 → 1988-10
ended
|
ST171 G;AT171 G CBR | — | |
| 89465-29295 |
Sensor, Oxygen
1988-06 → 1988-10
ended
|
ST171 5F XL | — | |
| 89465-29295 |
Sensor, Oxygen
1988-10 → 1992-03
ended
|
ST171 G;AT171 G CBR | — | |
| 89465-29375 |
Sensor, Oxygen
1989-11 → 1992-11
ended
|
AT171 EFI | — | |
| 89466 — Gasket, Oxygen Sensor | ||||
| 89466-20020 |
Gasket, Oxygen Sensor
1988-06 → 1988-10
ended
|
ST171 5F XL | — | |
| 89466-20020 |
Gasket, Oxygen Sensor
1988-10 → 1992-11
ended
|
AT171,ST171 G | — | |
| 89466-30010 |
Gasket, Oxygen Sensor
1987-12 → 1988-10
ended
|
AT171,ST171 G | — | |
| 89620 — Igniter Assy | ||||
| 89621-30010 |
Igniter Assy
1987-12 → 1992-11
ended
|
ST171;AT171 5F EFI | — | |
| 89629 — Bracket, Igniter Assy | ||||
| 89629-20090 |
Bracket, Igniter Assy
1987-12 → 1992-11
ended
|
ST171;AT171 5F EFI | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
