Toyota Carina 2
1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe
Discontinued model
Data version 1993-08

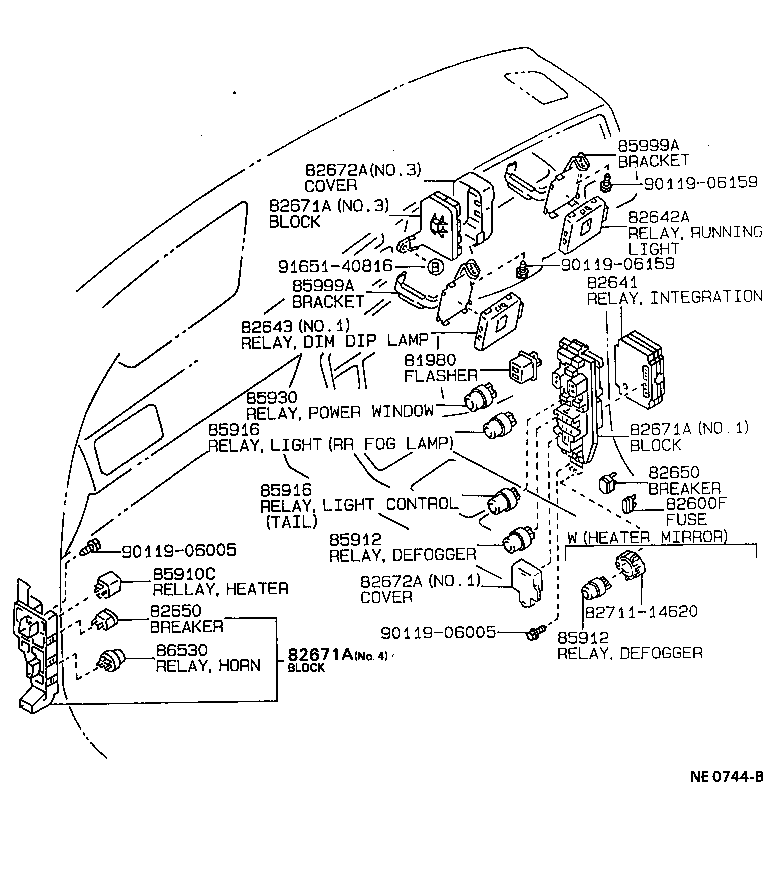

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81980 — Flasher Assy, Turn Signal | ||||
| 81980-12070 |
Flasher Assy, Turn Signal
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-07011 note |
Fuse, Fuse Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1987-12 → 1988-02
ended
|
AT171,CT170,ST171 RHD | — | |
| 90982-09002 note |
Fuse, Fuse Block
1987-12 → 1988-02
ended
|
AT171,CT170,ST171 LHD | — | |
| 90982-09002 note |
Fuse, Fuse Block
1988-02 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-08 → 1989-11
ended
|
AT171 XL EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1991-07 → 1992-11
ended
|
AT171 WG EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-11 → 1990-08
ended
|
ST171 LHD LB W | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-11 → 1991-03
ended
|
ST171 LHD 4FC W | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-11 → 1991-03
ended
|
ST171 LHD SED 5F +1 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-11 → 1991-03
ended
|
ST171 4FC G;ST171 LB +2 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1990-08 → 1991-03
ended
|
ST171 LHD LB W | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-11 → 1991-07
ended
|
AT171 WG EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-11 → 1992-03
ended
|
AT171 GL EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-11 → 1992-03
ended
|
AT171 (LB,SED) XL EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-11 → 1992-03
ended
|
ST171 SED 5F G | — | |
| 90982-09003 note |
Fuse, Fuse Block
1991-03 → 1992-03
ended
|
ST171 LHD 4FC W | — | |
| 90982-09003 note |
Fuse, Fuse Block
1991-03 → 1992-03
ended
|
ST171 4FC G;ST171 LB +5 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 LHD | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1992-11
ended
|
AT171 RHD;AT171,ST171 EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1988-02 → 1992-11
ended
|
AT171,CT170,ST171 LHD | — | |
| 90982-09003 note |
Fuse, Fuse Block
1988-02 → 1992-11
ended
|
ST171 RHD;AT171,CT170 CBR,DSL | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-08 → 1989-11
ended
|
AT171 GL EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-08 → 1989-11
ended
|
ST171 XL | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1988-02
ended
|
AT171 SED 5F XL +1 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1988-02
ended
|
AT171,CT170,ST171 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1989-02
ended
|
ST171 GL G | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1989-02
ended
|
ST171 XL;AT171 XL G +1 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1989-02
ended
|
AT171 LB 4FC G | — | |
| 90982-09003 note |
Fuse, Fuse Block
1987-12 → 1989-02
ended
|
AT171 SED GL G +6 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1988-02 → 1989-02
ended
|
ST171 LHD GL | — | |
| 90982-09003 note |
Fuse, Fuse Block
1988-02 → 1989-02
ended
|
AT171 GL EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1988-02 → 1989-02
ended
|
ST171 XL | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-02 → 1989-08
ended
|
AT171 GL EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-02 → 1989-08
ended
|
ST171 XL | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-02 → 1989-08
ended
|
AT171 XL EFI | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-02 → 1989-11
ended
|
ST171 GL G | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-02 → 1989-11
ended
|
AT171 GL G CBR | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-02 → 1989-11
ended
|
ST171 XL;AT171 XL G +1 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-02 → 1989-11
ended
|
ST171 LHD GL | — | |
| 90982-09003 note |
Fuse, Fuse Block
1988-06 → 1989-02
ended
|
AT171 XL EFI | — | |
| 90982-09004 note |
Fuse, Fuse Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1987-12 → 1988-02
ended
|
AT171,CT170,ST171 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1988-02 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 90982-09005 note |
Fuse, Fuse Block
1988-02 → 1992-11
ended
|
AT171,CT170,ST171 LHD | — | |
| 90982-09005 note |
Fuse, Fuse Block
1989-11 → 1990-08
ended
|
ST171 LHD LB W | — | |
| 82641 — Relay, Integration NO.1 | ||||
| 82641-20110 |
Relay, Integration NO.1
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 82642A — Relay, Running Light | ||||
| 82642-12030 |
Relay, Running Light
1989-11 → 1991-03
ended
|
ST171 XL G;AT171 EFI +10 | — | |
| 82642-12030 |
Relay, Running Light
1991-03 → 1992-11
ended
|
ST171 G) LHD;AT171 XL +11 | — | |
| 82642-32030 |
Relay, Running Light
1987-12 → 1989-11
ended
|
ST171 G;AT171 G CBR | — | |
| 82643 — Relay, Dim-dip Lamp | ||||
| 82643-12010 note |
Relay, Dim-dip Lamp
1987-12 → 1989-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 82643-12020 note |
Relay, Dim-dip Lamp
1989-11 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 90987-02006 note |
Relay, Dim-dip Lamp
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 90987-04002 note |
Relay, Dim-dip Lamp
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 82650 — Breaker Assy, Wiring Circuit, NO.1 | ||||
| 82650-20011 note |
Breaker Assy, Wiring Circuit, NO.1
1988-02 → 1988-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 82650-20011 note |
Breaker Assy, Wiring Circuit, NO.1
1992-03 → 1992-11
ended
|
AT171,CT170 RHD | — | |
| 82650-20011 note |
Breaker Assy, Wiring Circuit, NO.1
1988-11 → 1989-11
ended
|
AT171,CT170,ST171 | — | |
| 82650-20011 note |
Breaker Assy, Wiring Circuit, NO.1
1989-11 → 1992-03
ended
|
AT171,CT170,ST171 | — | |
| 82650-20011 note |
Breaker Assy, Wiring Circuit, NO.1
1992-03 → 1992-11
ended
|
AT171,CT170 LHD | — | |
| 82650-20020 note |
Breaker Assy, Wiring Circuit, NO.1
1988-11 → 1989-11
ended
|
AT171,CT170,ST171 | — | |
| 82650-20020 note |
Breaker Assy, Wiring Circuit, NO.1
1988-02 → 1988-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 82650-20020 note |
Breaker Assy, Wiring Circuit, NO.1
1989-11 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 82671A — Block, Junction | ||||
| 82671-20090 note |
Block, Junction
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 82671-20090 note |
Block, Junction
1989-11 → 1990-08
ended
|
ST171 LHD LB W | — | |
| 82671-20100 note |
Block, Junction
1989-02 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 82671-20100 note |
Block, Junction
1987-12 → 1989-02
ended
|
CT170 LHD;AT171 SED 4FC +6 | — | |
| 82671-20100 note |
Block, Junction
1987-12 → 1989-02
ended
|
CT170 RHD;AT171 RHD XL;AT171,ST171 +5 | — | |
| 82671-20100 note |
Block, Junction
1987-12 → 1989-02
ended
|
ST171 4FC XL;AT171 XL +2 | — | |
| 82671-20100 note |
Block, Junction
1988-06 → 1989-02
ended
|
AT171 XL EFI | — | |
| 82671-20100 note |
Block, Junction
1988-06 → 1989-02
ended
|
ST171 5F XL | — | |
| 82671-20110 note |
Block, Junction
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 82671-20110 note |
Block, Junction
1989-11 → 1990-08
ended
|
ST171 LHD LB W | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1991-03
ended
|
ST171 LHD SED 5F +1 | — | |
| 82671-20120 note |
Block, Junction
1989-08 → 1989-11
ended
|
AT171 GL G | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1991-03
ended
|
ST171 LHD LB W | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1991-03
ended
|
ST171 LHD 4FC W | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-11
ended
|
AT171,CT170 LHD WG (CBR,DSL) | — | |
| 82671-20120 note |
Block, Junction
1989-08 → 1989-11
ended
|
AT171,CT170 LHD XL (DSL,EFI) | — | |
| 82671-20120 note |
Block, Junction
1989-08 → 1989-11
ended
|
ST171 XL;AT171 (SED,WG) XL +2 | — | |
| 82671-20120 note |
Block, Junction
1989-08 → 1989-11
ended
|
AT171 LB XL G +1 | — | |
| 82671-20120 note |
Block, Junction
1989-08 → 1989-11
ended
|
AT171 SED 4FC XL +5 | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1991-03
ended
|
ST171 4FC G;ST171 LB +2 | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1991-07
ended
|
AT171 WG EFI | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-03
ended
|
AT171 LHD SED XL +1 | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-03
ended
|
AT171 GL EFI | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-03
ended
|
AT171 LHD SED GL +1 | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-03
ended
|
ST171 SED 5F G | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-03
ended
|
AT171 LHD 4FC GL | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-03
ended
|
AT171 LHD LB 5F +2 | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-03
ended
|
CT170 LHD (LB,SED);AT171 LHD +3 | — | |
| 82671-20120 note |
Block, Junction
1989-11 → 1992-03
ended
|
AT171 (LB,SED) XL EFI | — | |
| 82671-20120 note |
Block, Junction
1991-03 → 1992-03
ended
|
ST171 4FC G;ST171 LB +5 | — | |
| 82671-20120 note |
Block, Junction
1991-03 → 1992-03
ended
|
ST171 LHD 4FC W | — | |
| 82671-20120 note |
Block, Junction
1989-02 → 1989-11
ended
|
AT171 SED 5F XL +1 | — | |
| 82671-20120 note |
Block, Junction
1989-02 → 1989-11
ended
|
AT171 LHD GL W | — | |
| 82671-20120 note |
Block, Junction
1991-07 → 1992-11
ended
|
AT171 WG EFI | — | |
| 82671-20120 note |
Block, Junction
1989-02 → 1989-08
ended
|
AT171 SED 4FC XL +8 | — | |
| 82671-20120 note |
Block, Junction
1989-02 → 1989-08
ended
|
ST171 XL;AT171 XL G +1 | — | |
| 82671-20120 note |
Block, Junction
1987-12 → 1988-02
ended
|
CT170,ST171 171 LHD;AT171 LHD +12 | — | |
| 82671-20120 note |
Block, Junction
1989-02 → 1989-08
ended
|
AT171 GL G | — | |
| 82671-20120 note |
Block, Junction
1987-12 → 1988-02
ended
|
AT171 SED 5F XL +1 | — | |
| 82671-20120 note |
Block, Junction
1988-02 → 1989-02
ended
|
AT171 SED 4FC XL +8 | — | |
| 82671-20120 note |
Block, Junction
1988-02 → 1989-02
ended
|
ST171 LHD GL | — | |
| 82671-20120 note |
Block, Junction
1988-02 → 1989-02
ended
|
AT171 LHD GL | — | |
| 82671-20120 note |
Block, Junction
1989-02 → 1989-11
ended
|
ST171 LHD GL | — | |
| 82671-20120 note |
Block, Junction
1988-02 → 1989-02
ended
|
ST171 XL;AT171 XL G +1 | — | |
| 82671-20120 note |
Block, Junction
1988-02 → 1989-02
ended
|
AT171 SED 5F XL +1 | — | |
| 82671-20140 note |
Block, Junction
1988-02 → 1989-02
ended
|
AT171 SED 5F XL +1 | — | |
| 82671-20140 note |
Block, Junction
1988-06 → 1989-02
ended
|
ST171 5F XL | — | |
| 82671-20140 note |
Block, Junction
1989-11 → 1992-03
ended
|
CT170 LHD (LB,SED) | — | |
| 82671-20140 note |
Block, Junction
1989-11 → 1992-03
ended
|
AT171,ST171 LHD SED GL | — | |
| 82671-20140 note |
Block, Junction
1989-11 → 1992-03
ended
|
AT171,ST171 LHD LB GL | — | |
| 82671-20140 note |
Block, Junction
1987-12 → 1988-02
ended
|
AT171 SED 5F XL +1 | — | |
| 82671-20140 note |
Block, Junction
1989-02 → 1992-11
ended
|
AT171,CT170,ST171 LHD | — | |
| 82671-20140 note |
Block, Junction
1988-02 → 1989-02
ended
|
CT170 LHD;AT171 SED 4FC +6 | — | |
| 82671-20140 note |
Block, Junction
1988-02 → 1989-02
ended
|
ST171 4FC XL;AT171 XL +2 | — | |
| 82671-20140 note |
Block, Junction
1988-02 → 1989-02
ended
|
AT171,ST171 LHD GL;AT171 SED +3 | — | |
| 82671-20140 note |
Block, Junction
1988-06 → 1989-02
ended
|
AT171 XL EFI | — | |
| 82671-20140 note |
Block, Junction
1989-11 → 1991-05
ended
|
AT171 LHD WG CBR | — | |
| 82671-20140 note |
Block, Junction
1989-02 → 1989-04
ended
|
AT171 SED 5F XL +1 | — | |
| 82671-20140 note |
Block, Junction
1989-02 → 1989-04
ended
|
AT171 WG 5F G +1 | — | |
| 82671-20140 note |
Block, Junction
1989-02 → 1989-04
ended
|
AT171 SED 4FC XL +5 | — | |
| 82671-20140 note |
Block, Junction
1989-02 → 1989-04
ended
|
AT171,CT170 LHD XL (DSL,EFI) | — | |
| 82671-20140 note |
Block, Junction
1989-11 → 1992-11
ended
|
CT170 LHD WG | — | |
| 82671-20140 note |
Block, Junction
1989-11 → 1992-11
ended
|
AT171 WG EFI | — | |
| 82671-20140 note |
Block, Junction
1989-02 → 1989-04
ended
|
ST171 XL;AT171 4FC XL +6 | — | |
| 82671-20140 note |
Block, Junction
1991-05 → 1992-11
ended
|
AT171 LHD WG CBR | — | |
| 82671-20160 note |
Block, Junction
1990-08 → 1992-11
ended
|
AT171,ST171 EFI | — | |
| 82671-20160 note |
Block, Junction
1987-12 → 1990-08
ended
|
AT171,ST171 EFI | — | |
| 82671-20160 note |
Block, Junction
1989-11 → 1990-08
ended
|
AT171 5F EFI | — | |
| 82671-20170 note |
Block, Junction
1987-12 → 1990-08
ended
|
AT171,ST171 EFI | — | |
| 82671-20170 |
Block, Junction
1990-08 → 1992-11
ended
|
CT170 | — | |
| 82671-20170 note |
Block, Junction
1990-08 → 1992-11
ended
|
AT171,ST171 EFI | — | |
| 82671-20170 note |
Block, Junction
1987-12 → 1990-08
ended
|
CT170 | — | |
| 82671-20170 note |
Block, Junction
1989-11 → 1990-08
ended
|
AT171 5F EFI | — | |
| 82671-32030 note |
Block, Junction
1989-11 → 1992-11
ended
|
AT171 CBR | — | |
| 82671-32030 note |
Block, Junction
1987-12 → 1989-11
ended
|
AT171 CBR | — | |
| 82672A — Cover, Junction Block | ||||
| 82672-20200 note |
Cover, Junction Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 DSL,EFI | — | |
| 82672-20280 note |
Cover, Junction Block
1987-12 → 1988-02
ended
|
CT170 RHD | — | |
| 82672-20280 note |
Cover, Junction Block
1987-12 → 1988-02
ended
|
CT170 LHD | — | |
| 82672-20281 note |
Cover, Junction Block
1988-02 → 1989-11
ended
|
CT170 RHD | — | |
| 82672-20281 note |
Cover, Junction Block
1988-02 → 1989-11
ended
|
CT170 LHD | — | |
| 82672-20290 note |
Cover, Junction Block
1987-12 → 1988-02
ended
|
AT171,ST171 LHD EFI | — | |
| 82672-20290 note |
Cover, Junction Block
1987-12 → 1988-02
ended
|
ST171 RHD | — | |
| 82672-20291 note |
Cover, Junction Block
1988-02 → 1989-11
ended
|
ST171 RHD | — | |
| 82672-20291 note |
Cover, Junction Block
1988-02 → 1989-11
ended
|
AT171,ST171 LHD EFI | — | |
| 82672-20310 note |
Cover, Junction Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 82672-20310 note |
Cover, Junction Block
1989-11 → 1990-08
ended
|
ST171 LHD LB W | — | |
| 82672-20320 note |
Cover, Junction Block
1989-11 → 1990-08
ended
|
ST171 LHD LB W | — | |
| 82672-20320 note |
Cover, Junction Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 LHD | — | |
| 82672-20330 note |
Cover, Junction Block
1987-12 → 1988-02
ended
|
AT171,CT170,ST171 RHD | — | |
| 82672-20340 note |
Cover, Junction Block
1989-11 → 1990-08
ended
|
ST171 LHD LB W | — | |
| 82672-20340 note |
Cover, Junction Block
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 LHD | — | |
| 82672-20410 note |
Cover, Junction Block
1987-12 → 1989-11
ended
|
ST171 RHD | — | |
| 82672-20420 note |
Cover, Junction Block
1987-12 → 1989-11
ended
|
CT170 RHD | — | |
| 82672-20440 note |
Cover, Junction Block
1987-12 → 1988-02
ended
|
AT171 RHD | — | |
| 82672-20440 note |
Cover, Junction Block
1987-12 → 1988-02
ended
|
AT171 LHD CBR | — | |
| 82672-20441 note |
Cover, Junction Block
1988-02 → 1989-11
ended
|
AT171 LHD CBR | — | |
| 82672-20441 note |
Cover, Junction Block
1988-02 → 1989-11
ended
|
AT171 RHD | — | |
| 82672-20450 note |
Cover, Junction Block
1987-12 → 1989-11
ended
|
AT171 RHD | — | |
| 82672-20460 note |
Cover, Junction Block
1988-02 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 82672-20460 note |
Cover, Junction Block
1989-11 → 1990-08
ended
|
ST171 LHD LB W | — | |
| 82672-20630 note |
Cover, Junction Block
1989-11 → 1992-11
ended
|
AT171 LHD CBR | — | |
| 82672-20630 note |
Cover, Junction Block
1989-11 → 1992-11
ended
|
AT171 RHD | — | |
| 82672-20640 note |
Cover, Junction Block
1989-11 → 1992-11
ended
|
AT171 RHD | — | |
| 82672-20670 note |
Cover, Junction Block
1989-11 → 1992-03
ended
|
ST171 RHD | — | |
| 82672-20670 note |
Cover, Junction Block
1989-11 → 1992-11
ended
|
AT171,ST171 LHD EFI | — | |
| 82672-20680 note |
Cover, Junction Block
1989-11 → 1992-03
ended
|
ST171 RHD | — | |
| 82672-20700 note |
Cover, Junction Block
1989-11 → 1992-11
ended
|
AT171 5F EFI | — | |
| 82672-20710 note |
Cover, Junction Block
1989-11 → 1992-11
ended
|
CT170 LHD | — | |
| 82672-20710 note |
Cover, Junction Block
1989-11 → 1992-11
ended
|
CT170 RHD | — | |
| 82672-20720 note |
Cover, Junction Block
1989-11 → 1992-11
ended
|
CT170 RHD | — | |
| 85910C — Relay Assy (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 note |
Relay Assy (FOR HEATER BLOWER MOTOR)
1987-12 → 1990-08
ended
|
AT171,CT170,ST171 | — | |
| 90987-04002 |
Relay Assy (FOR HEATER BLOWER MOTOR)
1990-08 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 85912 — Relay, Defogger | ||||
| 90987-02002 note |
Relay, Defogger
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90987-02004 |
Relay, Defogger
1990-08 → 1992-11
ended
|
AT171,CT170,ST171 LHD | — | |
| 90987-02004 |
Relay, Defogger
1990-08 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 90987-02004 note |
Relay, Defogger
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90987-02004 note |
Relay, Defogger
1989-11 → 1990-08
ended
|
AT171,CT170,ST171 RHD | — | |
| 90987-02004 note |
Relay, Defogger
1987-12 → 1989-11
ended
|
AT171 XL EFI;AT171,CT170,ST171 RHD | — | |
| 90987-02004 note |
Relay, Defogger
1987-12 → 1989-11
ended
|
AT171 LHD XL CBR;CT170,ST171 +2 | — | |
| 90987-02004 note |
Relay, Defogger
1987-12 → 1989-11
ended
|
ST171 LHD GL;AT171 LHD +2 | — | |
| 90987-02004 note |
Relay, Defogger
1987-12 → 1989-11
ended
|
AT171 GL EFI | — | |
| 90987-02004 note |
Relay, Defogger
1989-11 → 1990-08
ended
|
AT171,CT170,ST171 LHD | — | |
| 85916 — Relay, Light Control | ||||
| 90987-02002 note |
Relay, Light Control
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90987-02002 note |
Relay, Light Control
1989-11 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90987-02004 note |
Relay, Light Control
1989-11 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90987-02004 note |
Relay, Light Control
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90987-02006 note |
Relay, Light Control
1987-12 → 1990-08
ended
|
AT171,CT170,ST171 | — | |
| 90987-02006 |
Relay, Light Control
1990-08 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 85930 — Relay Assy, Power Window | ||||
| 90987-02002 note |
Relay Assy, Power Window
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90987-02004 note |
Relay Assy, Power Window
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 85999A — Bracket, Relay, NO.2 | ||||
| 85999-20260 note |
Bracket, Relay, NO.2
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 RHD | — | |
| 85999-20310 |
Bracket, Relay, NO.2
1987-12 → 1989-11
ended
|
ST171 G;AT171 G CBR | — | |
| 85999-20310 |
Bracket, Relay, NO.2
1989-11 → 1991-03
ended
|
ST171 XL G;AT171 EFI +10 | — | |
| 85999-20310 |
Bracket, Relay, NO.2
1991-03 → 1992-11
ended
|
ST171 G) LHD;AT171 XL +11 | — | |
| 86530 — Relay Assy, Horn | ||||
| 90987-02002 note |
Relay Assy, Horn
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 90987-02004 note |
Relay Assy, Horn
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
