Toyota Carina 2
1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe
Discontinued model
Data version 1993-08

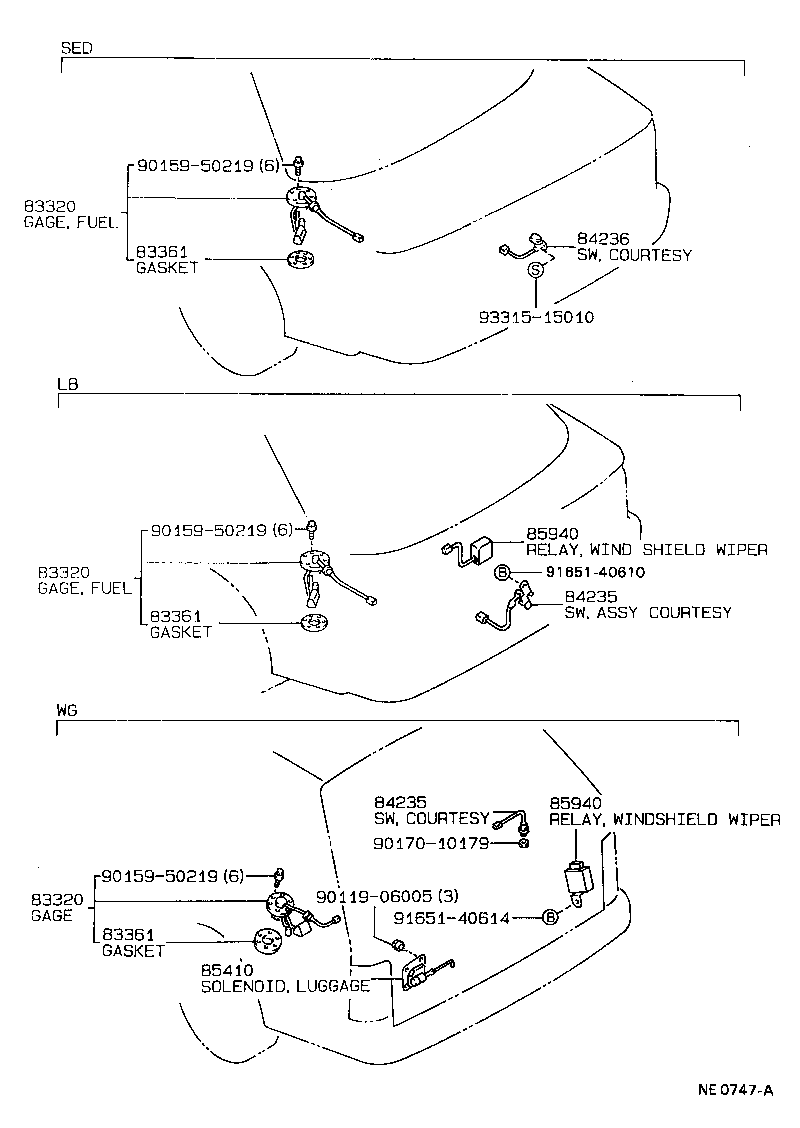

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-80097 |
Gage Assy, Fuel Sender
1987-12 → 1992-11
ended
|
AT171,ST171 | — | |
| 83320-80099 |
Gage Assy, Fuel Sender
1987-12 → 1992-11
ended
|
CT170 | — | |
| 83361 — Gasket, Fuel Sender Gage | ||||
| 83361-32020 |
Gasket, Fuel Sender Gage
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 | — | |
| 84235 — Switch Assy, Courtesy Lamp(FOR BACK DOOR) | ||||
| 84230-20150 |
Switch Assy, Courtesy Lamp(FOR BACK DOOR)
1991-12 → 1992-11
ended
|
AT171,CT170 WG | — | |
| 84230-91701 |
Switch Assy, Courtesy Lamp(FOR BACK DOOR)
1987-12 → 1991-12
ended
|
AT171,CT170,ST171 WG | — | |
| 84231-20140 |
Switch Assy, Courtesy Lamp(FOR BACK DOOR)
1987-12 → 1989-11
ended
|
AT171,CT170,ST171 LB | — | |
| 84231-20250 |
Switch Assy, Courtesy Lamp(FOR BACK DOOR)
1989-11 → 1992-03
ended
|
AT171,CT170,ST171 LB | — | |
| 84236 — Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) | ||||
| 84231-20110 |
Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
1987-12 → 1989-11
ended
|
AT171,CT170,ST171 SED | — | |
| 84231-20240 |
Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
1989-11 → 1992-03
ended
|
AT171,CT170,ST171 SED | — | |
| 85410 — Solenoid Assy, Luggage Door Lock | ||||
| 85410-95500 |
Solenoid Assy, Luggage Door Lock
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 WG | — | |
| 85940 — Relay Assy, Windshield Wiper | ||||
| 85940-20090 |
Relay Assy, Windshield Wiper
1987-12 → 1992-03
ended
|
AT171,CT170,ST171 LB | — | |
| 85940-20100 |
Relay Assy, Windshield Wiper
1987-12 → 1992-11
ended
|
AT171,CT170,ST171 WG | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
