Toyota Carina 2

1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe

Discontinued model Data version 1993-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

15 part groups · 3 illustrations

Illustrations

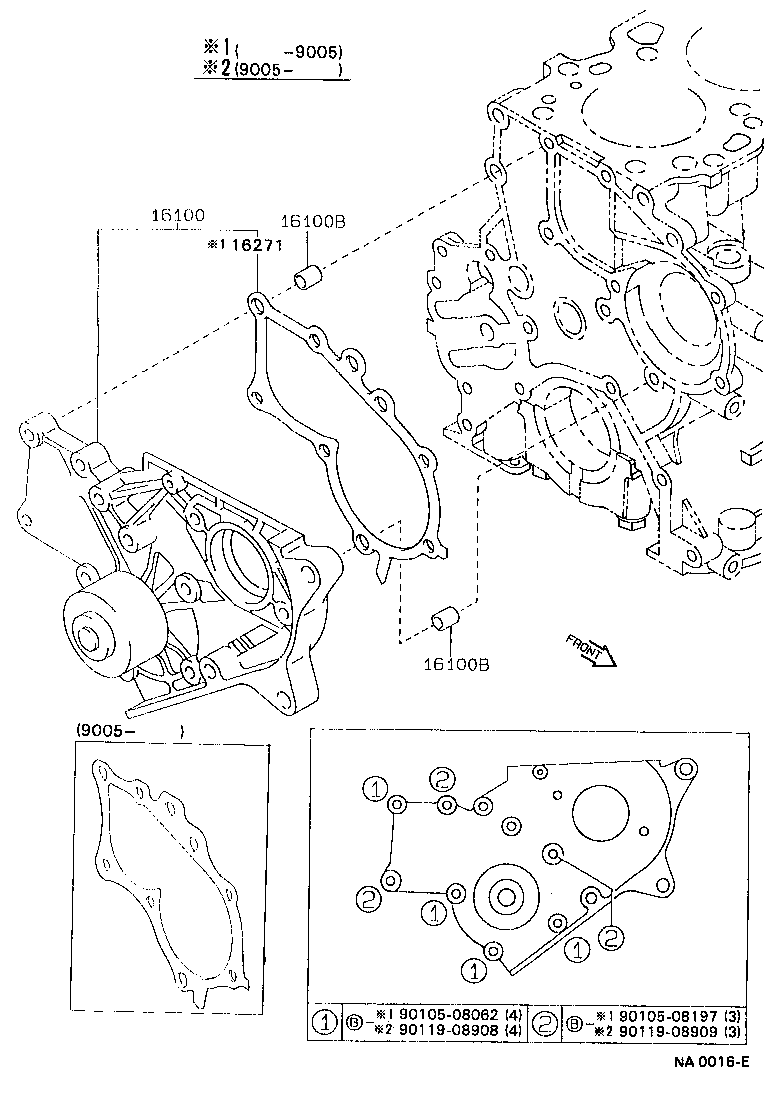

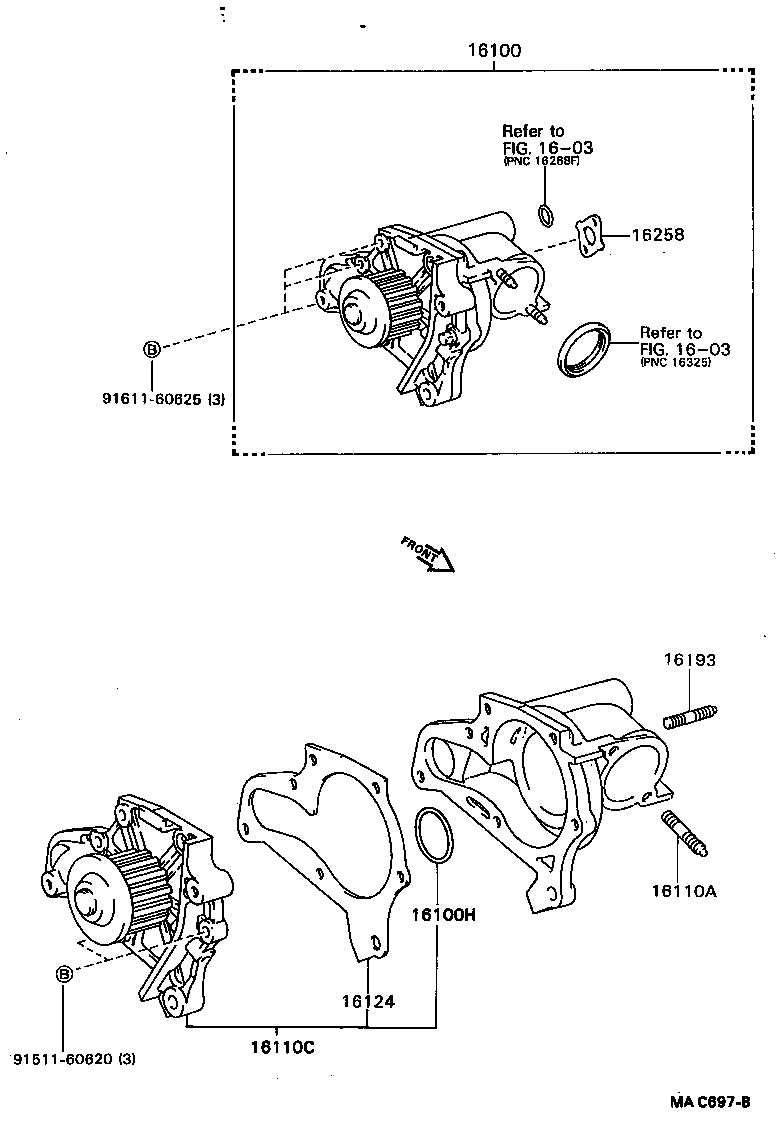

Figure MAD073B MAD073B 1987-12 → — Figure NA0016E NA0016E 1987-12 → — Figure MAC697B MAC697B 1987-12 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100B Pin, Ring(FOR WATER PUMP SET)
16100H Ring, O(FOR WATER PUMP)
16104 Seal Set, Water Pump
16110 Pump Assy, Water, W/O Coupling
16110A Bolt, Stud(FOR WATER OUTLET SETTING)
16110C Pump Assy, Water, W/O Cover
16124 Gasket, Water Pump Cover
16131 Rotor, Water Pump
16131A Bearing, Water Pump
16171 Seat, Water Pump Pulley
16193 Bolt, Stud(FOR WATER PUMP COVER)
16258 Gasket(FOR HEATER RETURN)
16271 Gasket, Water Pump
16371 Pulley, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
