Toyota Carina 2

1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe

Discontinued model Data version 1993-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

23 part groups · 7 illustrations

Illustrations

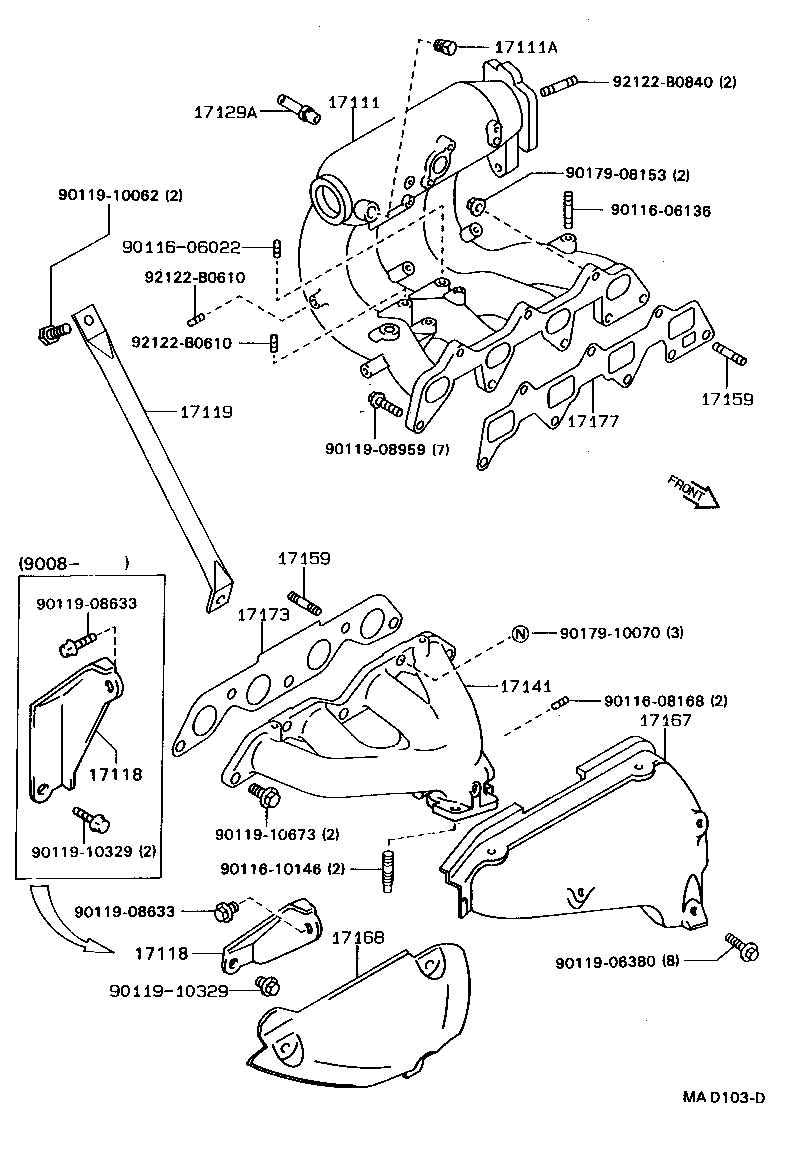

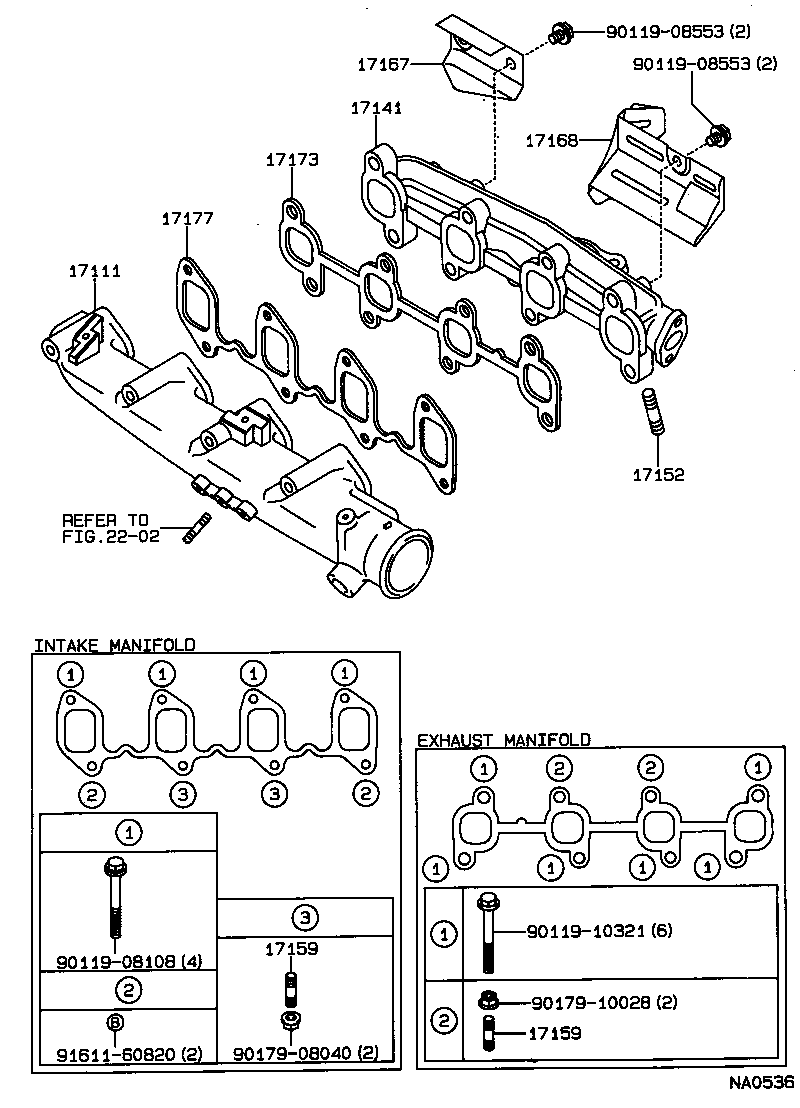

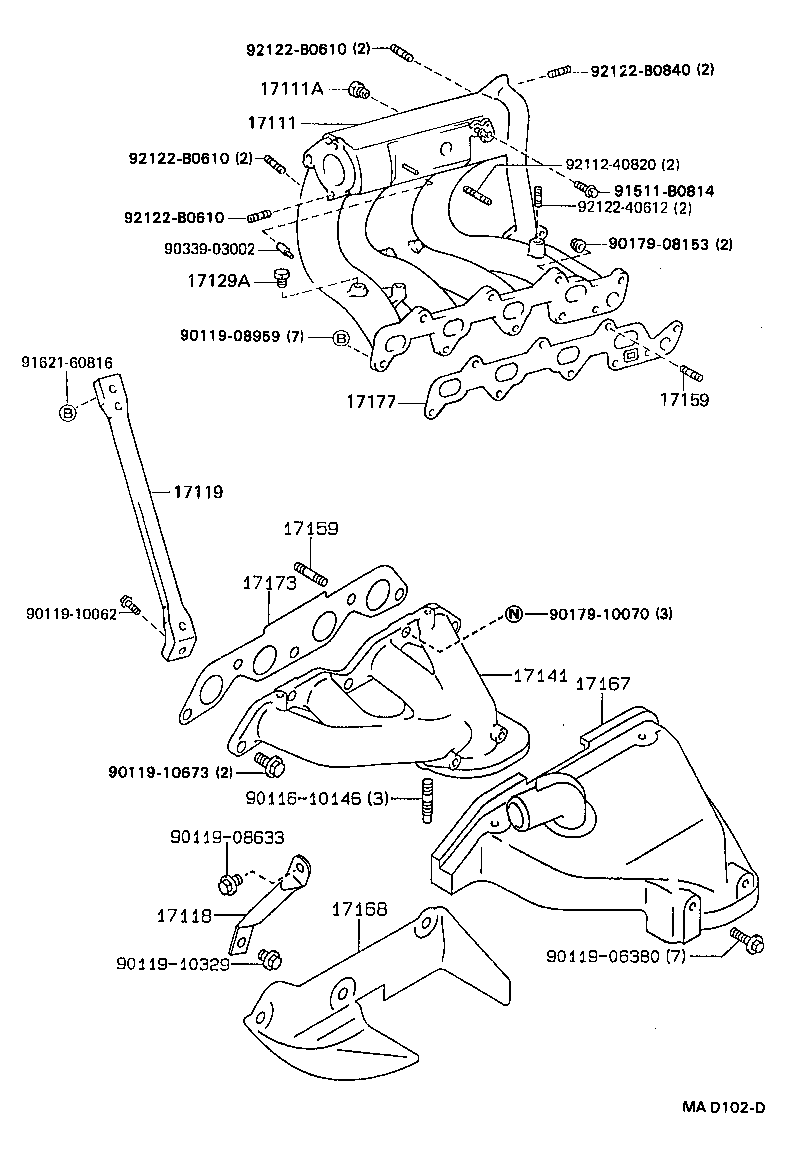

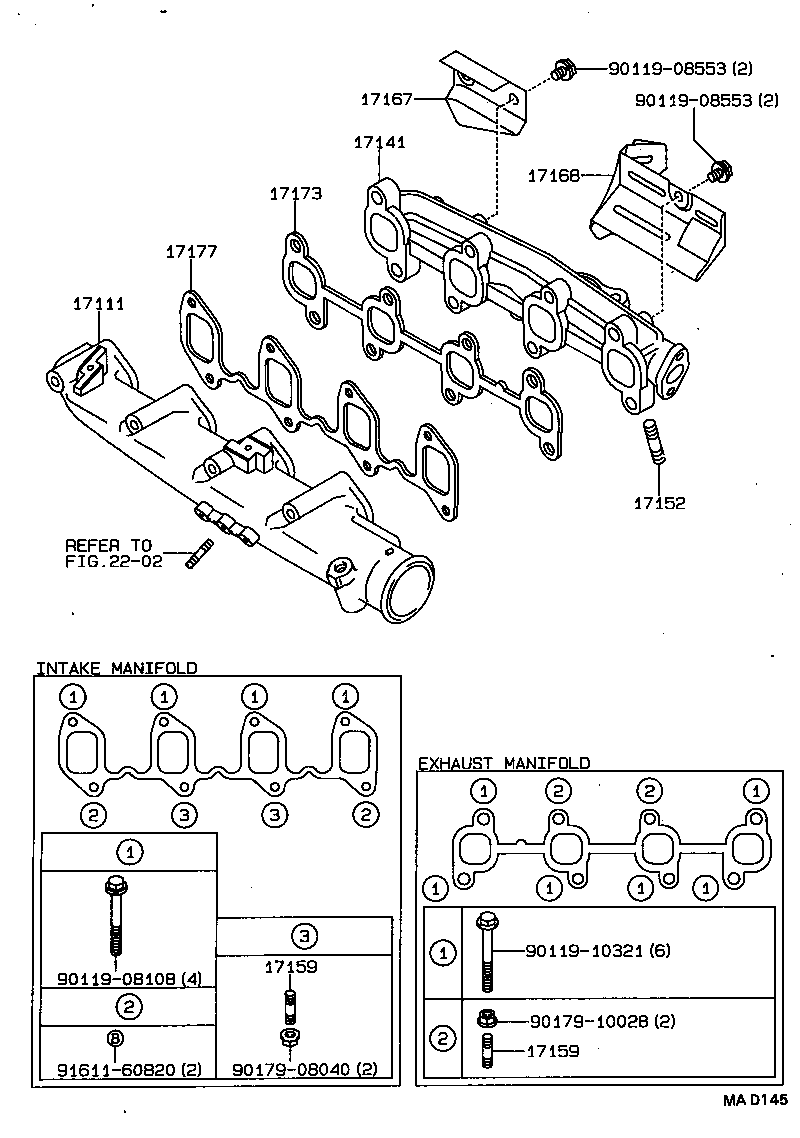

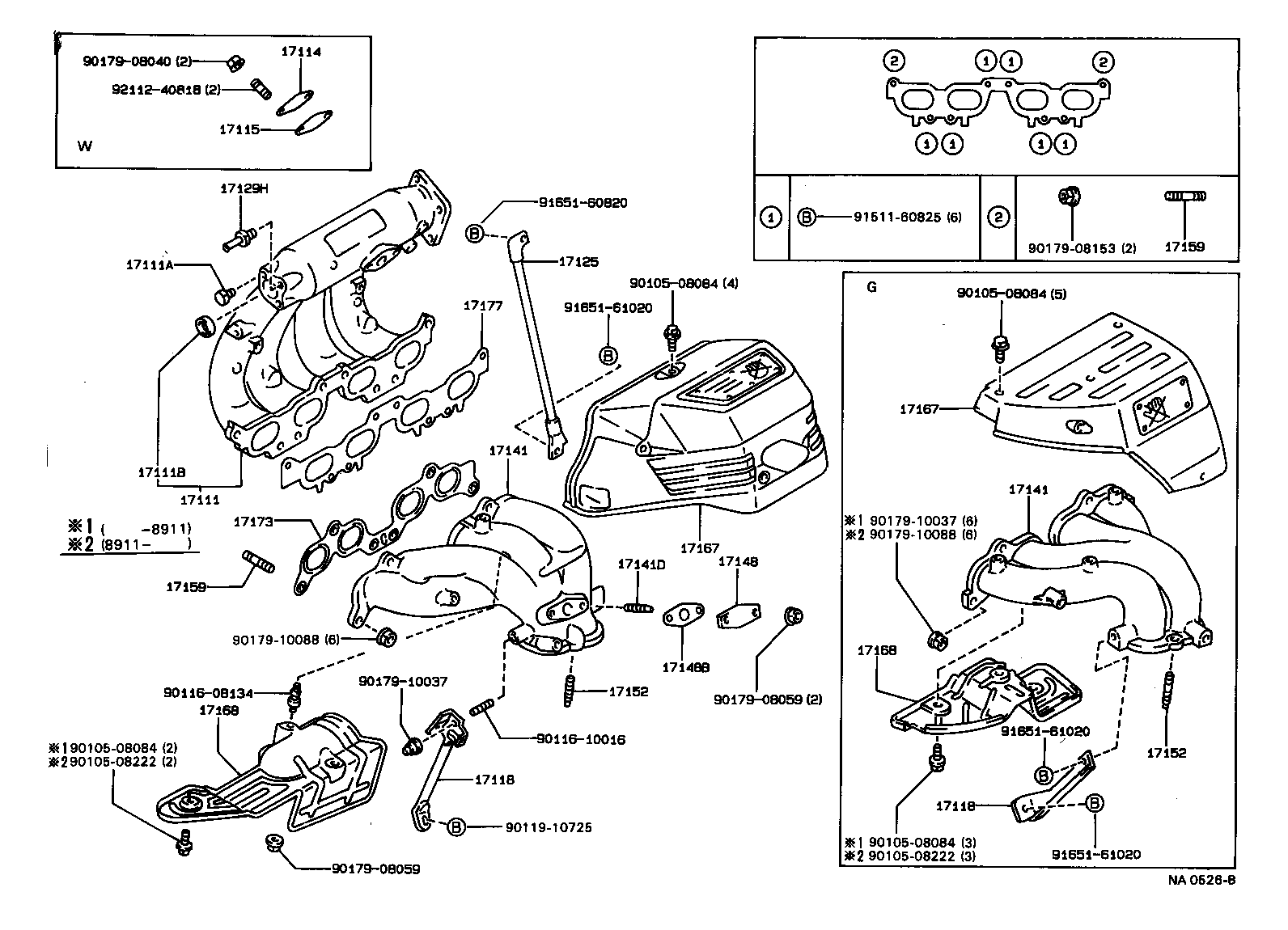

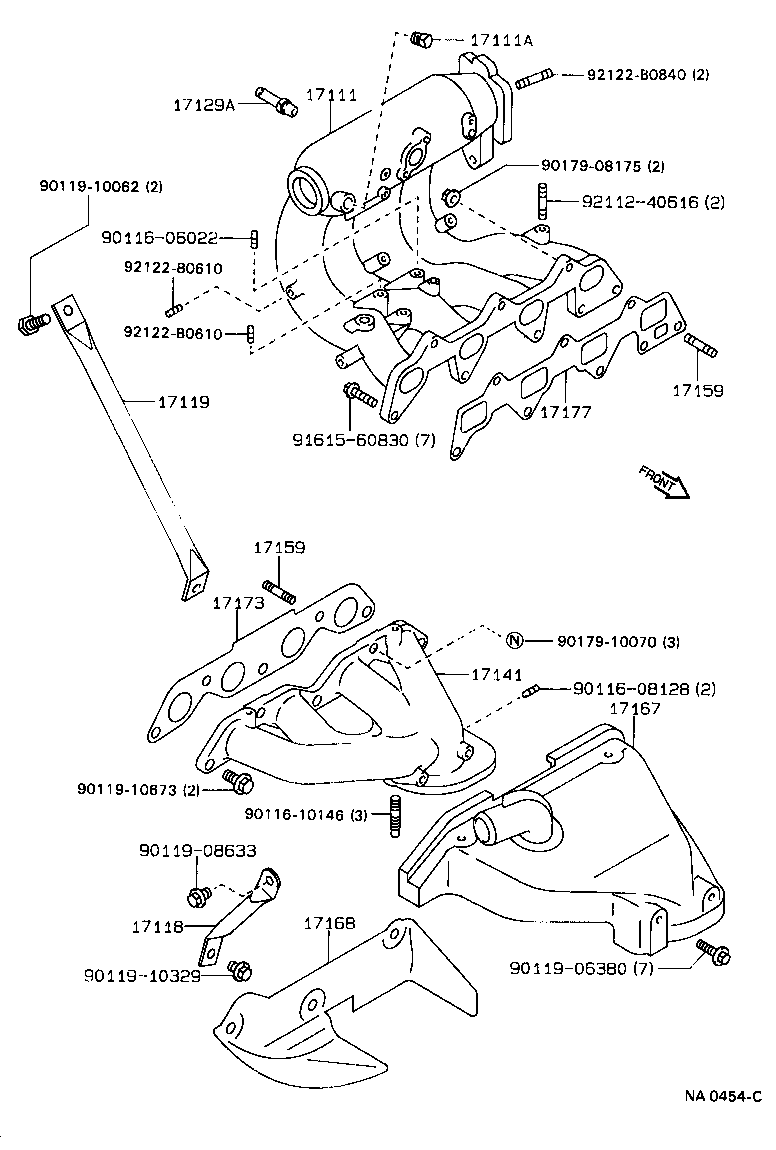

Figure NA0453F NA0453F 1987-12 → — Figure NA0454C NA0454C 1987-12 → 1989-11 Figure MAD102D MAD102D 1989-11 → — Figure MAD103D MAD103D 1989-11 → — Figure NA0536 NA0536 1987-12 → 1989-11 Figure MAD145 MAD145 1989-11 → — Figure NA0526B NA0526B 1987-12 → —

Part groups

PNCDescription
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17114 Plate, Intake Manifold Hole Cover
17115 Gasket, Intake Manifold Hole Cover
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17129A Union, NO.1
17129H Union, NO.4
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17148B Gasket, Egr Inlet
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
