Toyota Carina 2

1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe

Discontinued model Data version 1993-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

18 part groups · 6 illustrations

Illustrations

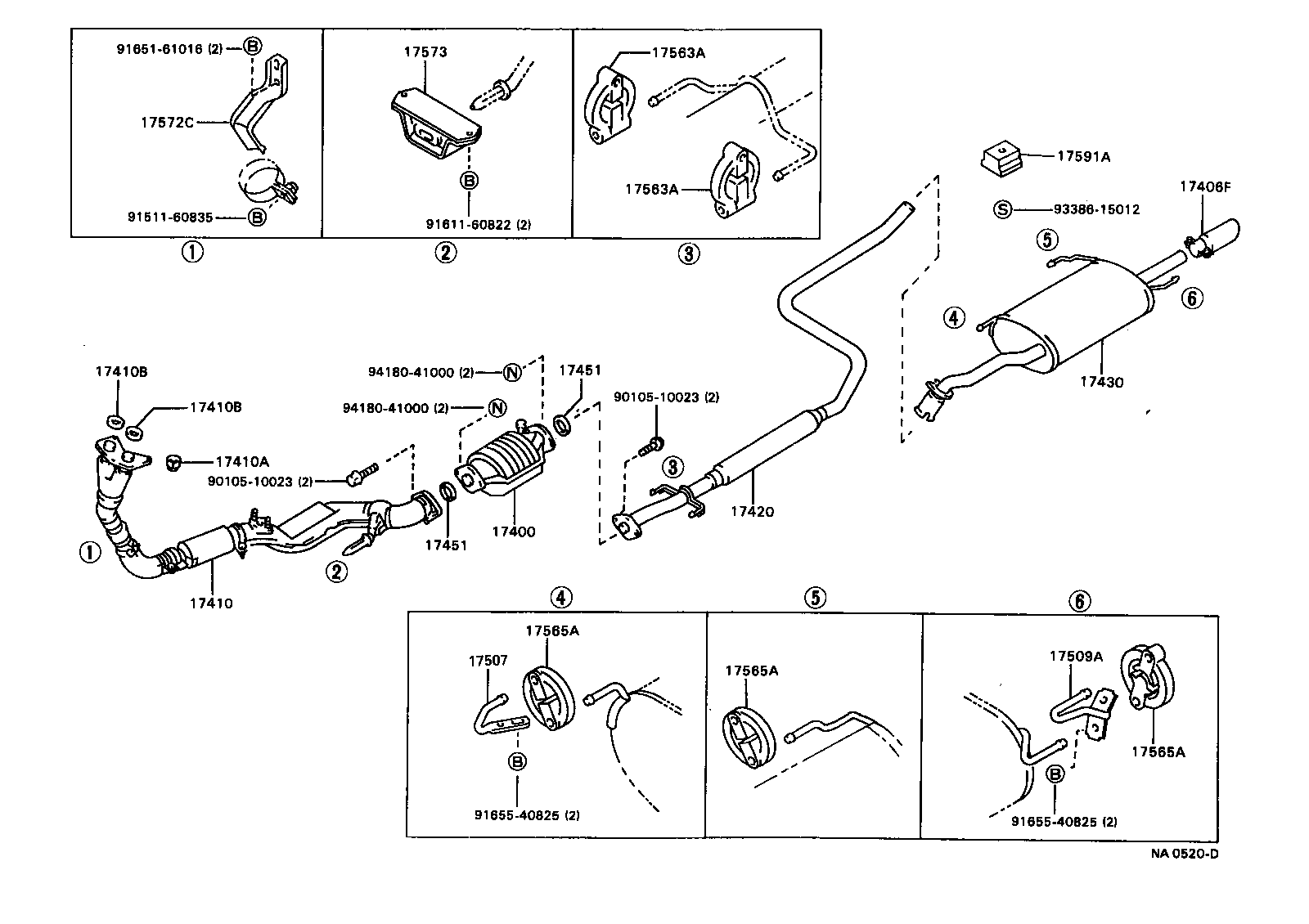

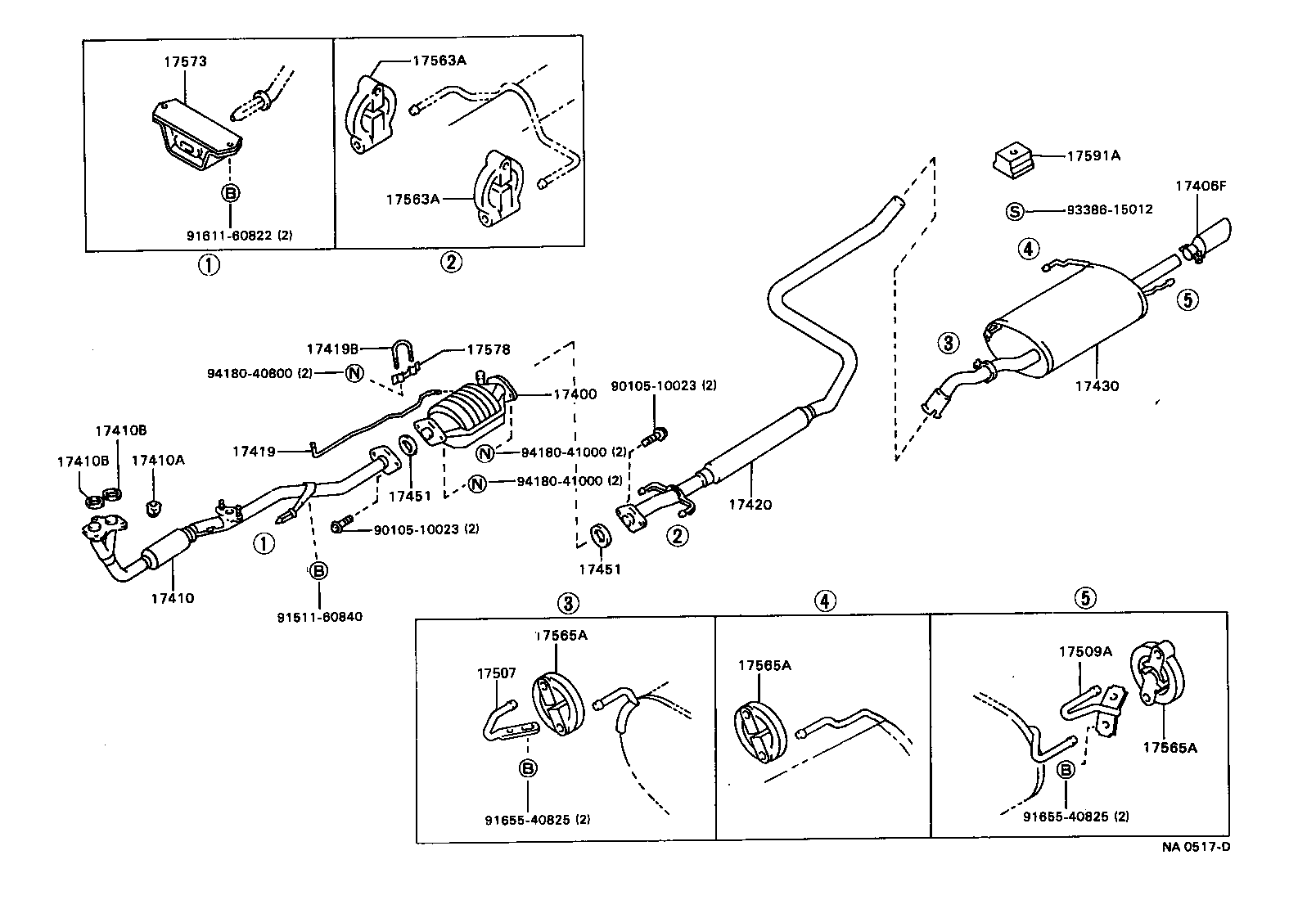

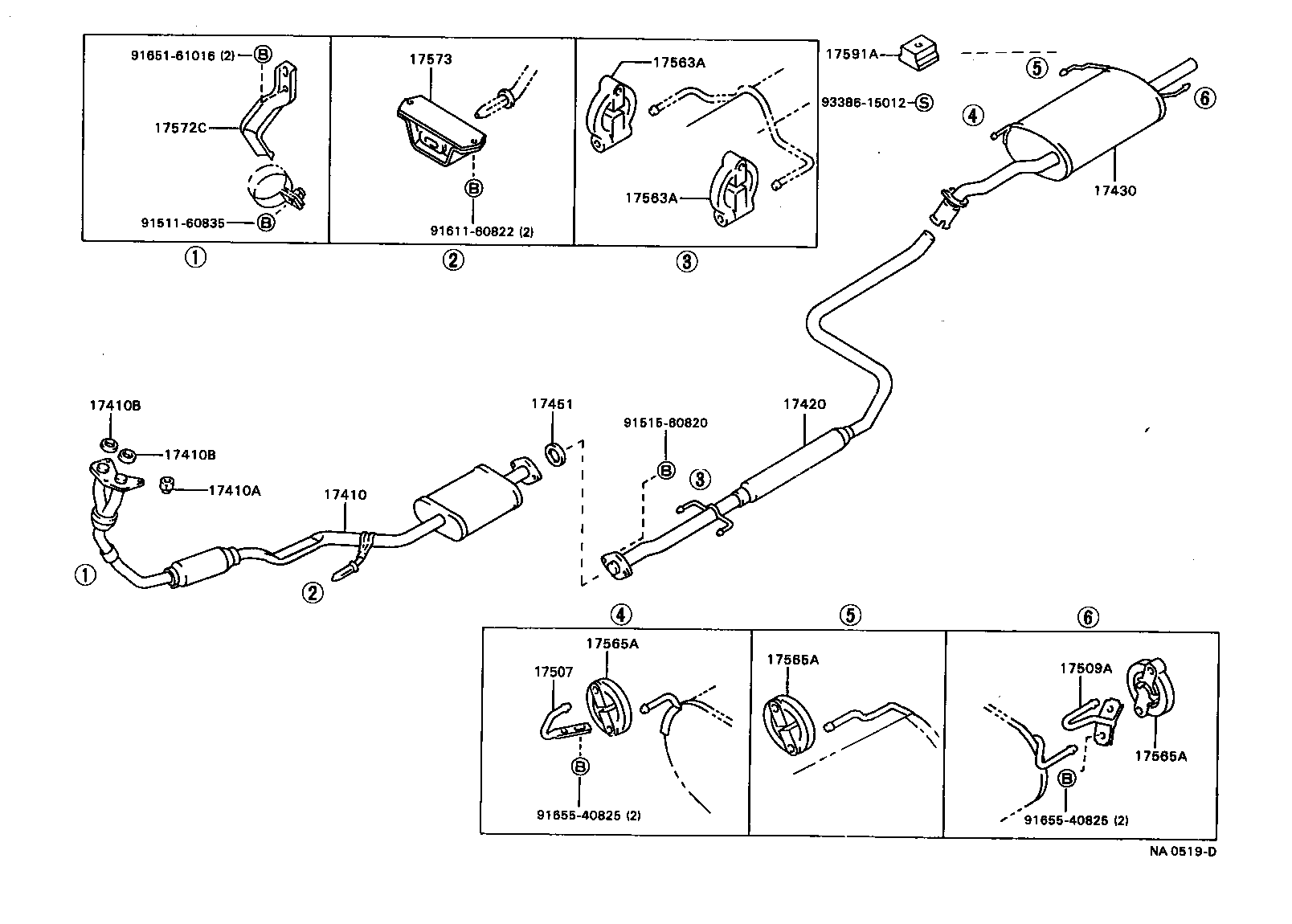

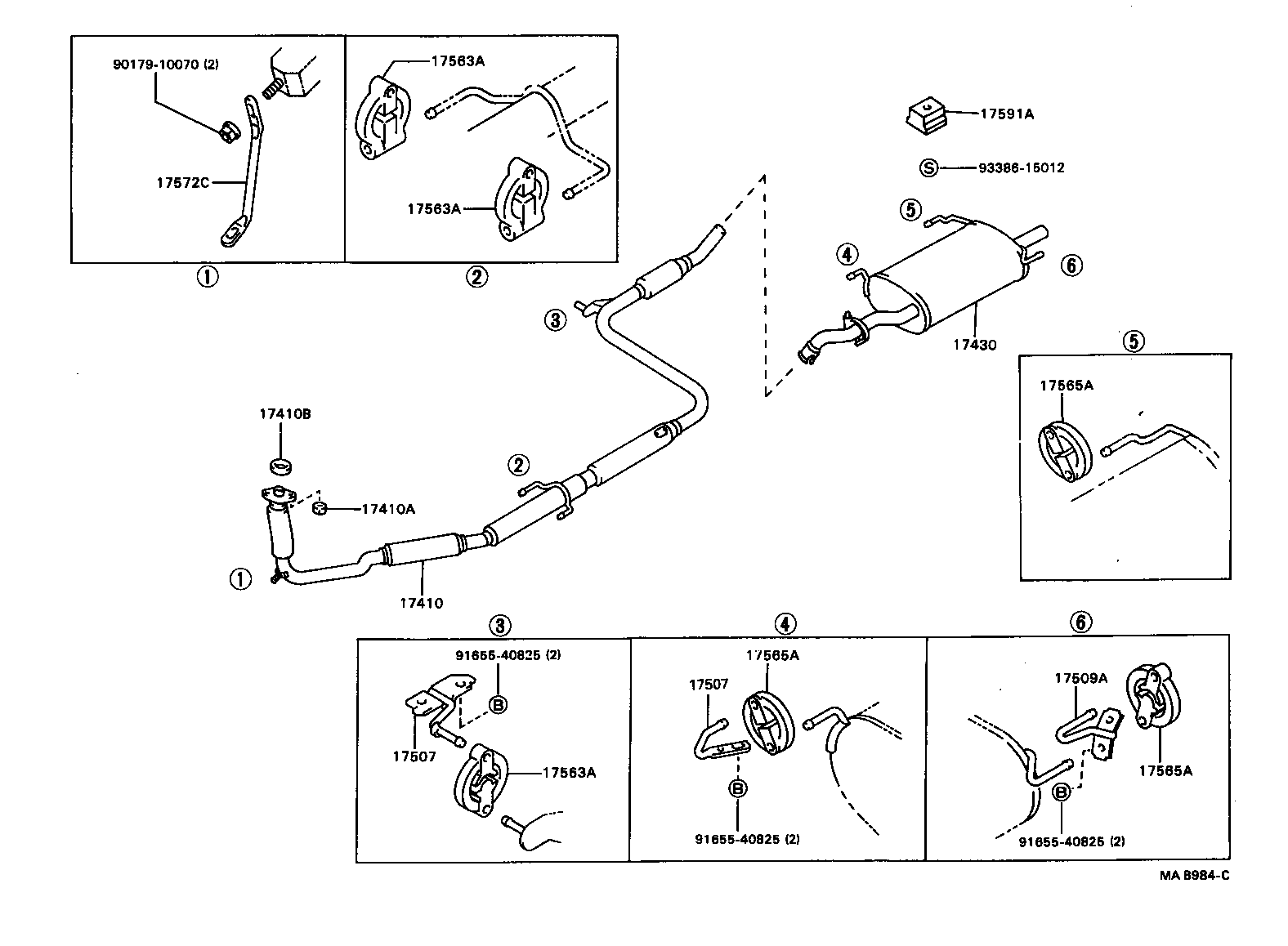

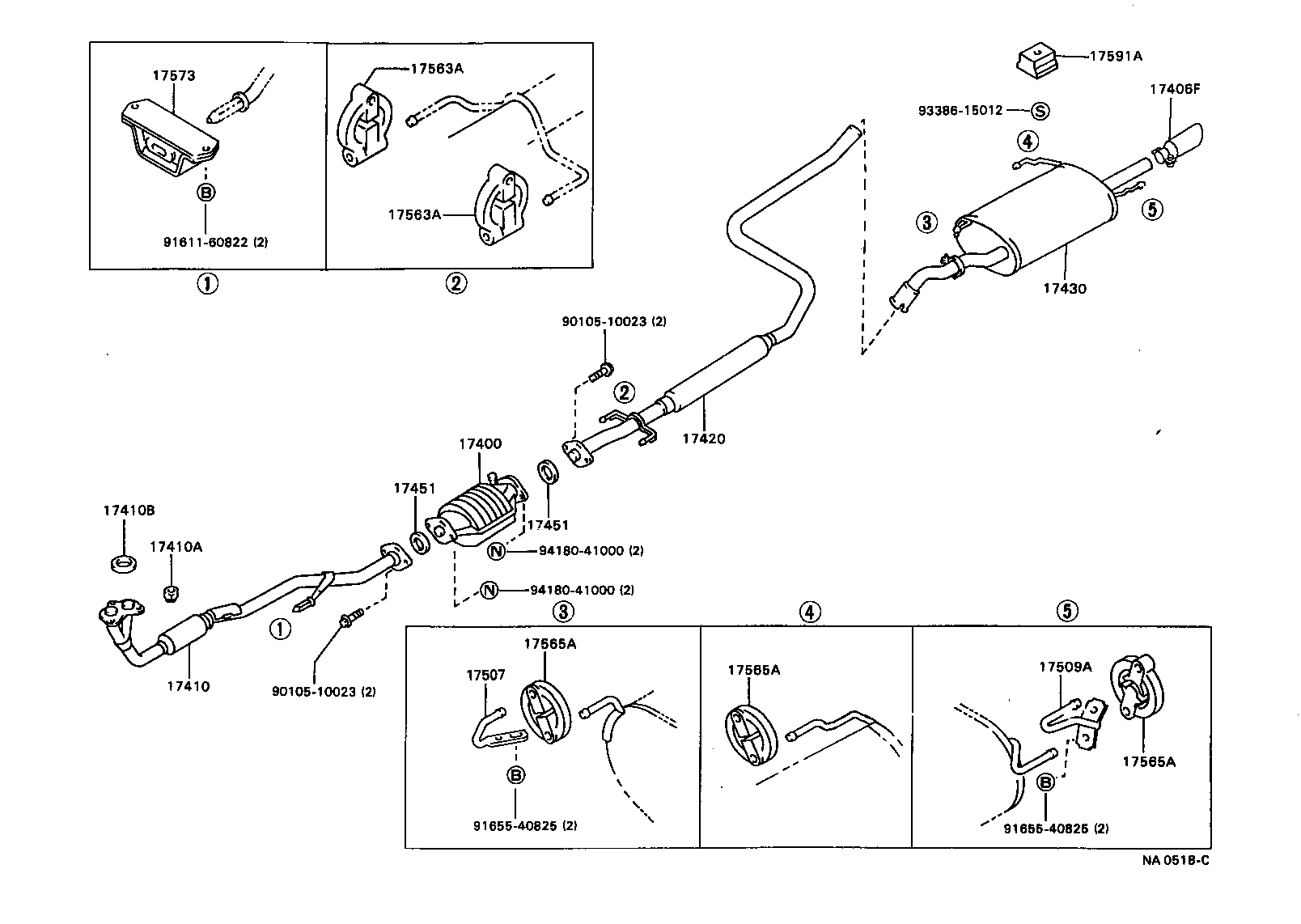

Figure NA0516C NA0516C 1987-12 → — Figure NA0517D NA0517D 1987-12 → — Figure NA0518C NA0518C 1987-12 → — Figure NA0519D NA0519D 1987-12 → — Figure NA0520D NA0520D 1987-12 → — Figure MAB984C MAB984C 1987-12 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17406F Diffuser Sub-assy, Exhaust Gas
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17419 Pipe, Converter Air Inlet
17419B Bolt, U(FOR CONVERTER AIR INLET PIPE)
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17572C Bracket, Exhaust Pipe Front (FOR FRONT)
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17578 Clamp, Pipe
17591A Stopper, Exhaust Pipe Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
