Toyota Carina 2

1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe

Discontinued model Data version 1993-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

25 part groups · 8 illustrations

Illustrations

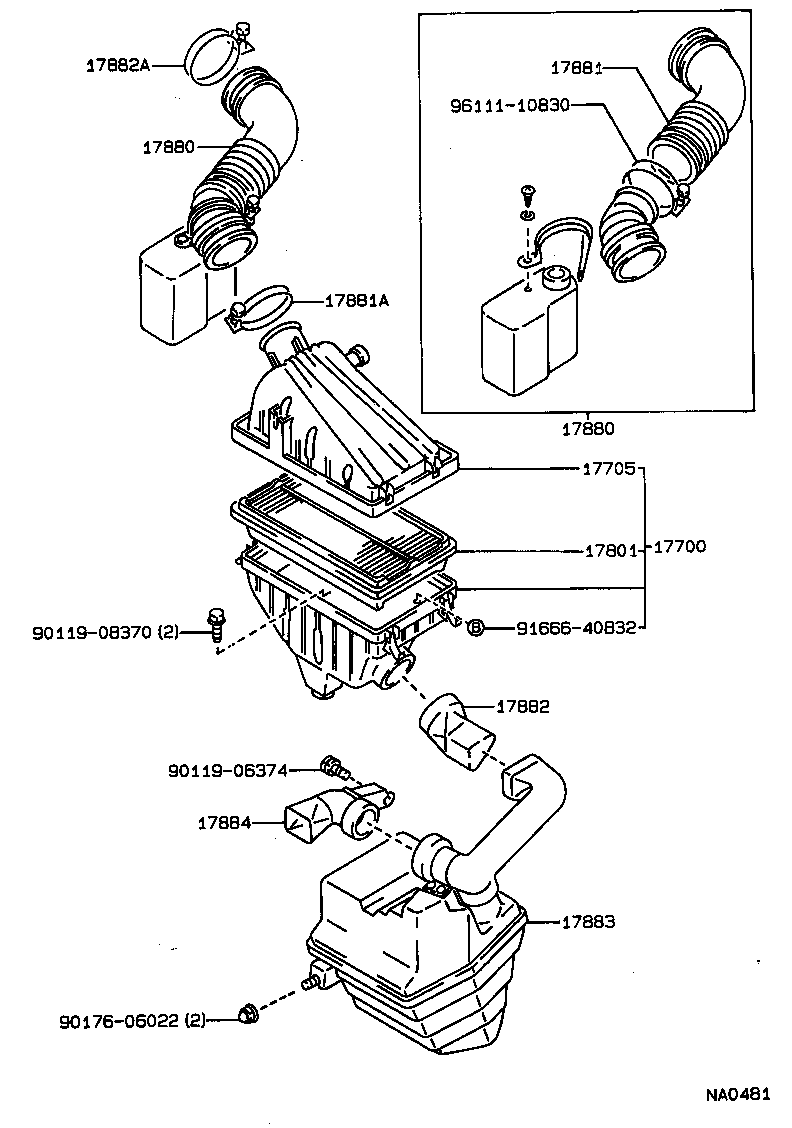

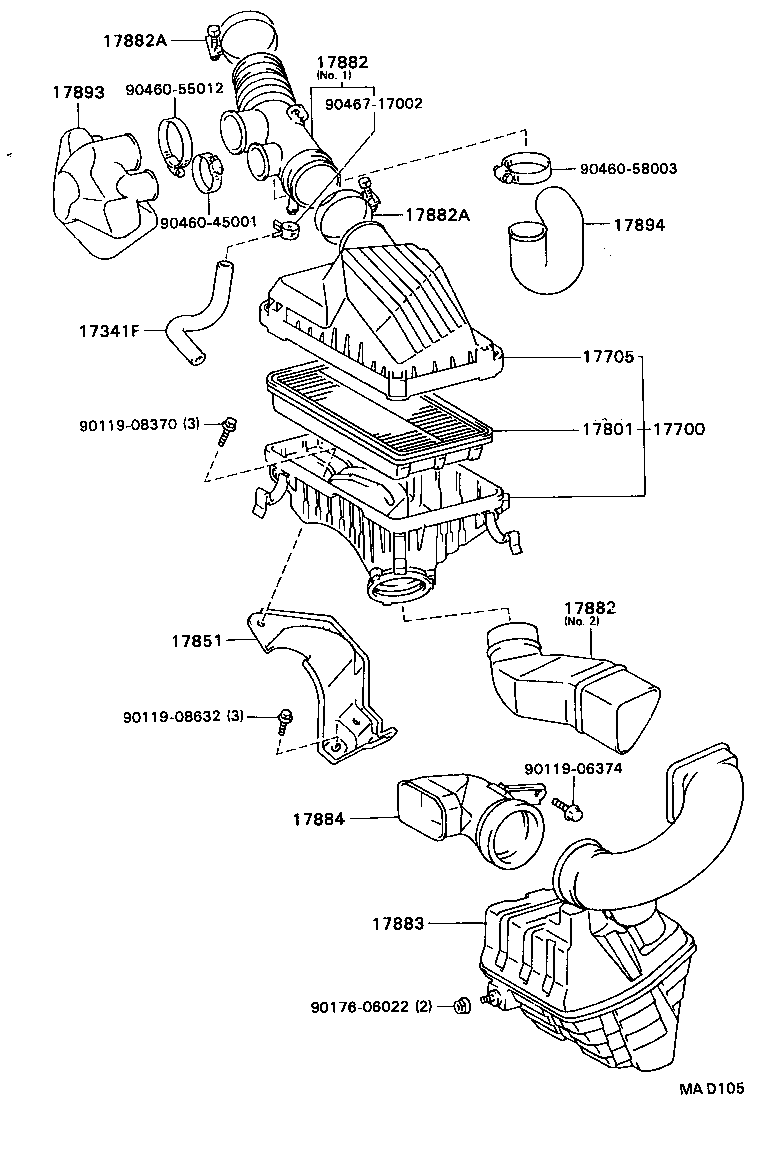

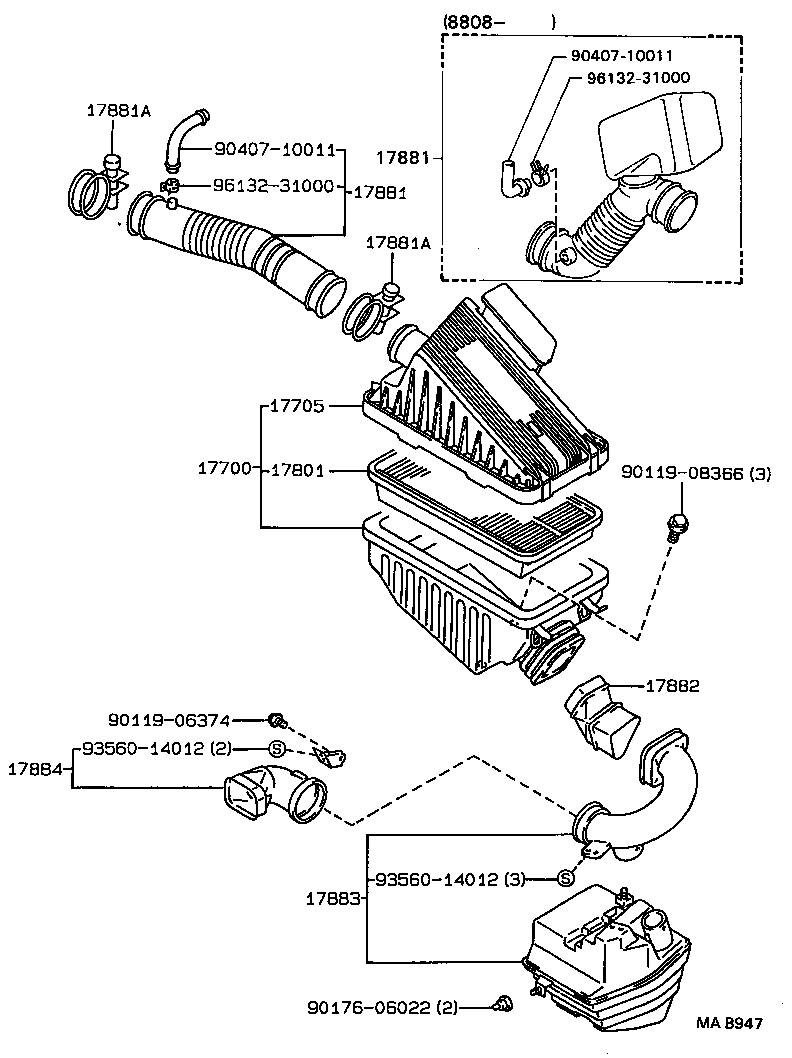

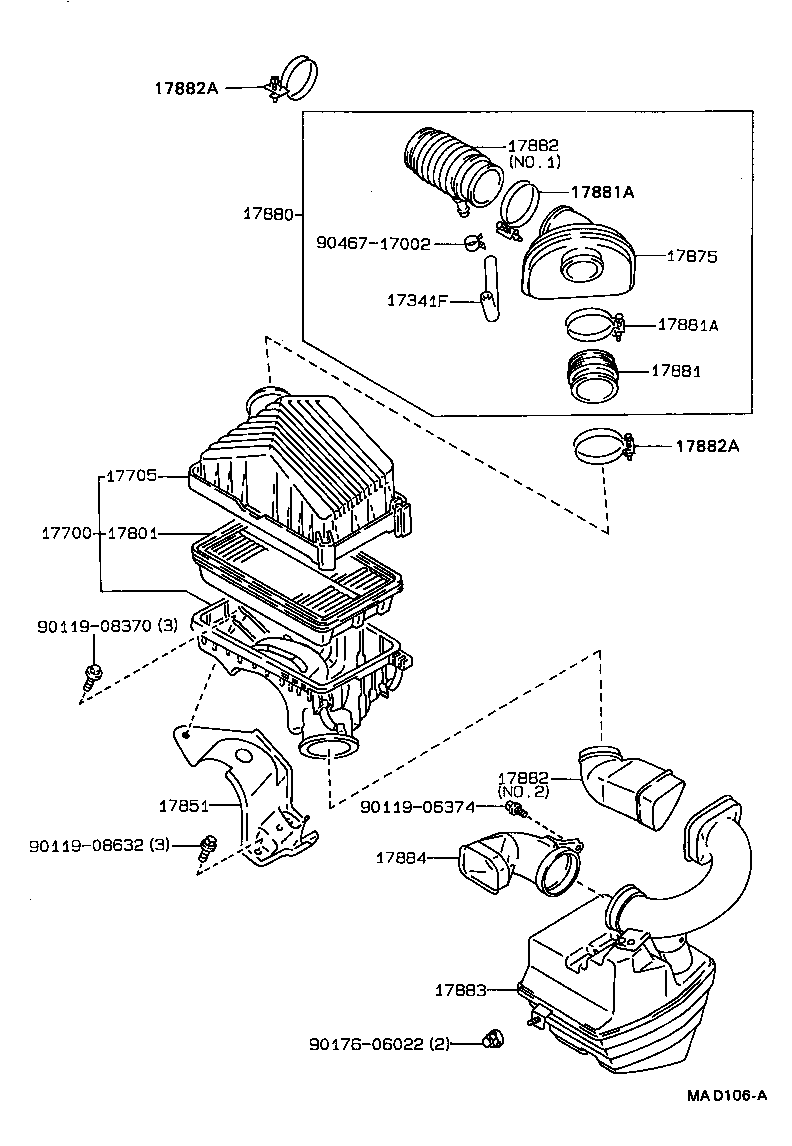

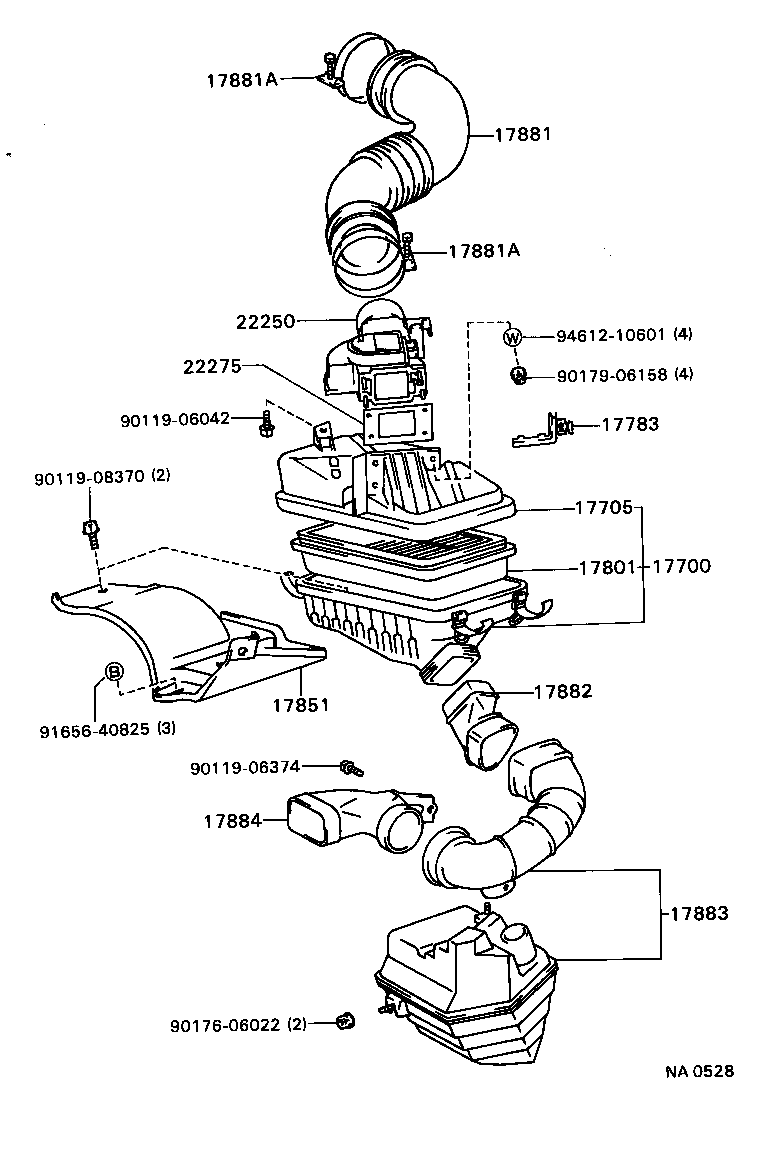

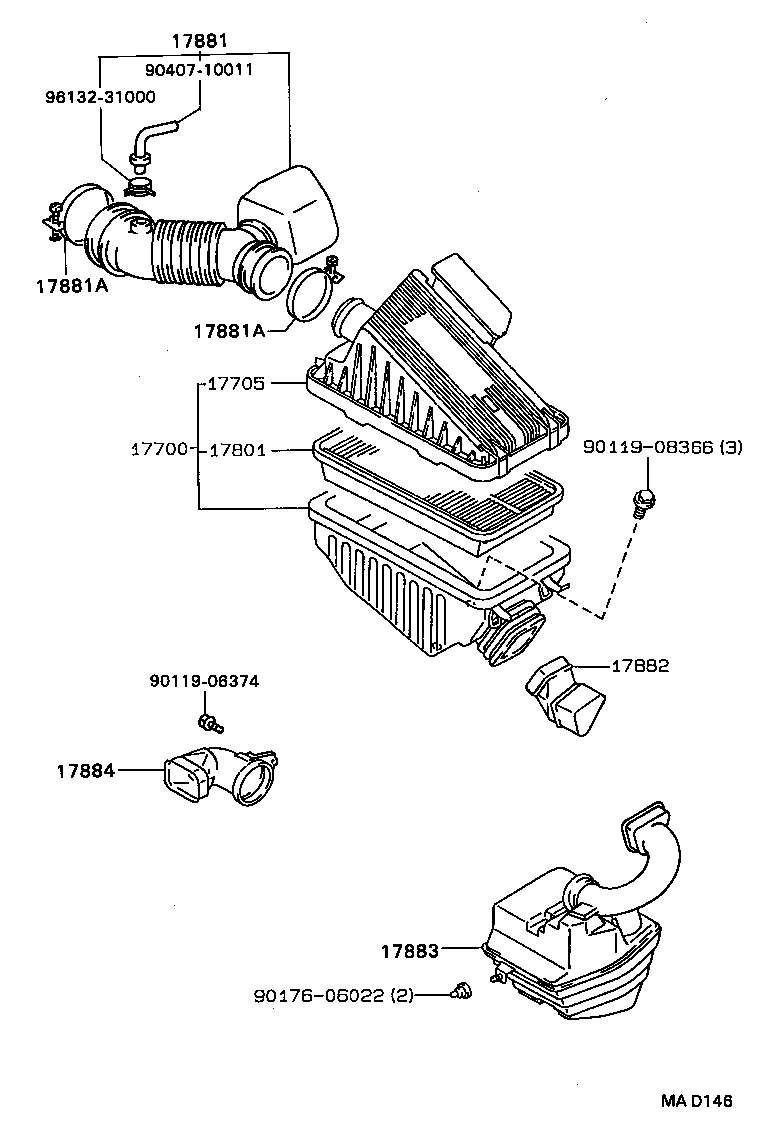

Figure NA0455C NA0455C 1987-12 → — Figure MAD106A MAD106A 1987-12 → 1989-11 Figure MAD106A MAD106A 1989-11 → — Figure MAD105 MAD105 1989-11 → — Figure MAB947 MAB947 1987-12 → 1989-11 Figure MAD146 MAD146 1989-11 → — Figure NA0481 NA0481 1987-12 → — Figure NA0528 NA0528 1987-12 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17305 Valve Sub-assy, Reed
17341F Hose, Air, NO.1
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17751 Inlet, Air Cleaner, NO.1
17783 Plate, Air Cleaner Baffle
17801 Element Sub-assy, Air Cleaner Filter
17851 Bracket, Air Cleaner Support
17875 Pipe, Intake Air Connector
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17884 Hose, Air Cleaner, NO.4
17889 Box, Air Cleaner Hose, NO.2
17893 Resonator, Intake Air
17894 Bracket, Resonator
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
