Toyota Carina 2

1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe

Discontinued model Data version 1993-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

14 part groups · 4 illustrations

Illustrations

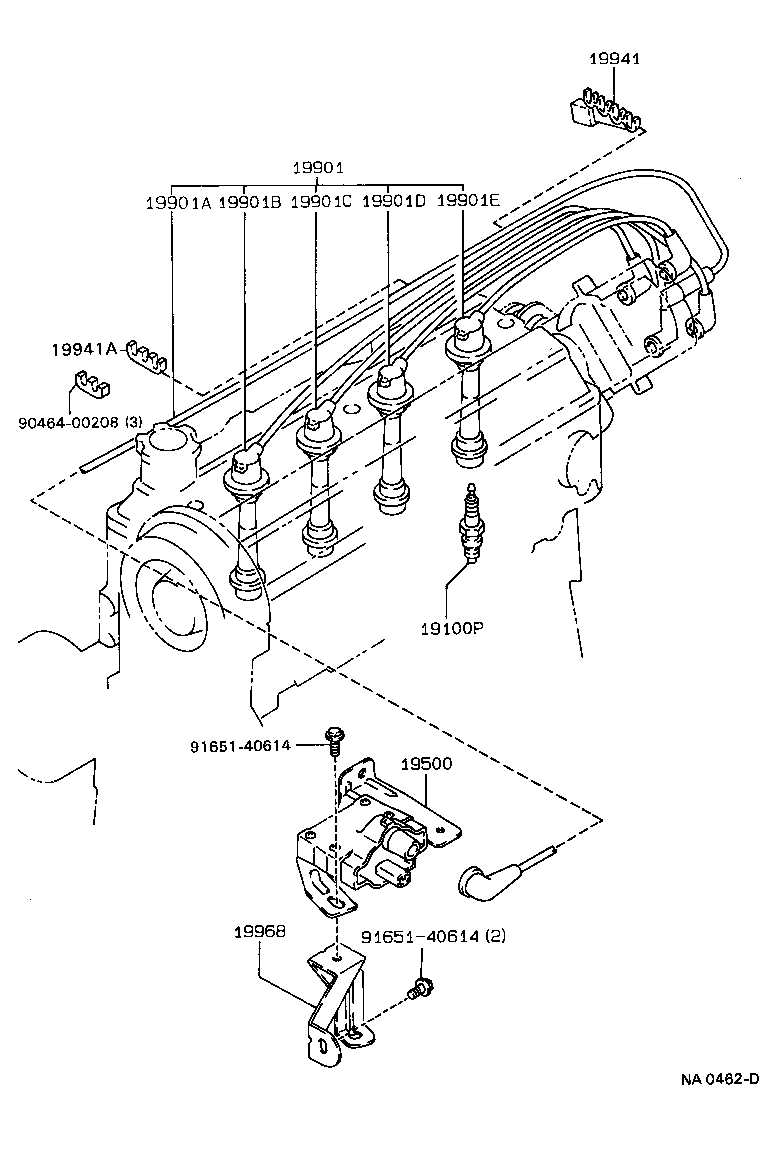

Figure NA0153B NA0153B 1987-12 → — Figure NA0462D NA0462D 1987-12 → — Figure NA0020 NA0020 1987-12 → — Figure NA0530B NA0530B 1987-12 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19941 Clamp, Resistive Cord, NO.1
19941A Clamp(FOR RESISTIVE CORD)
19968 Bracket, Ignition Coil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
