Toyota Carina 2
1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe
Discontinued model
Data version 1993-08

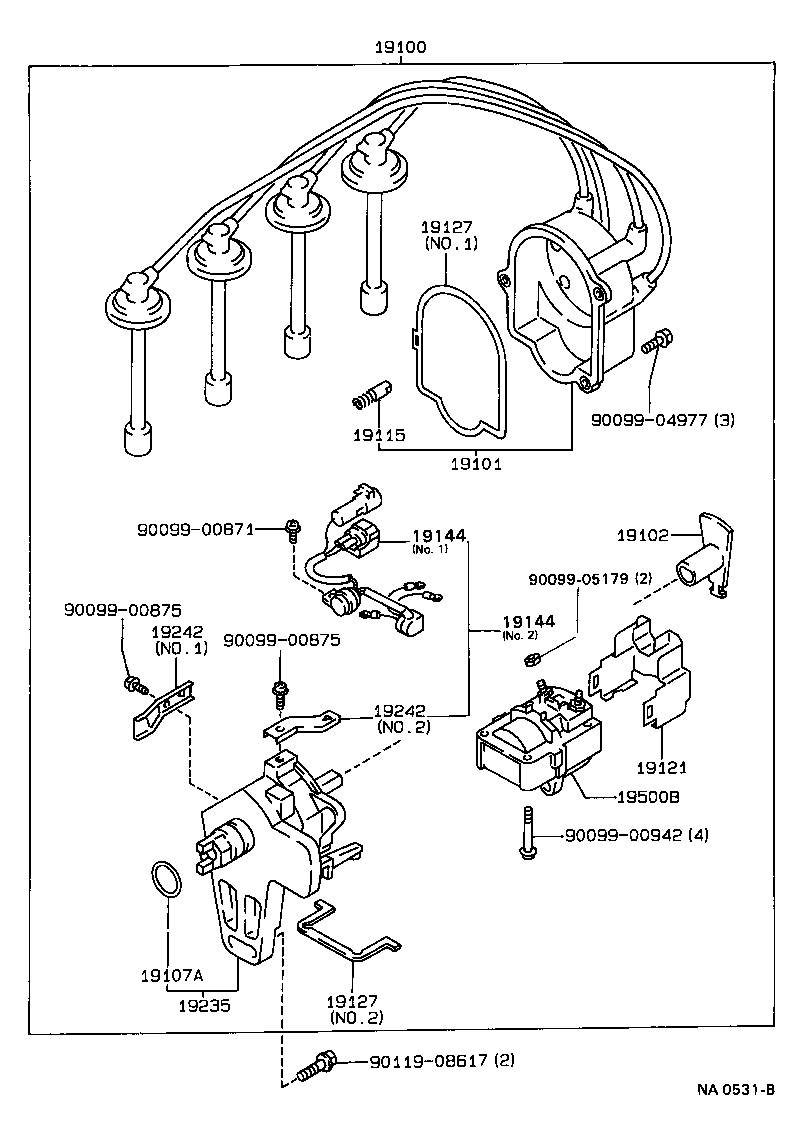

Distributor
24 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 19100 | Distributor Assy |
| 19101 | Cap Sub-assy, Distributor |
| 19102 | Rotor Sub-assy, Distributor |
| 19107A | Ring, O, Distributor Housing |
| 19115 | Piece, Distributor Cap, Center |
| 19121 | Cover, Dust Proof |
| 19127 | Packing, Dust Proof |
| 19144 | Lead, Distributor Breaker |
| 19152 | Weight, Governor |
| 19152A | Ring, Snap(FOR GOVERNOR WEIGHT) |
| 19153 | Spring, Governor, A |
| 19154 | Spring, Governor, B |
| 19169 | Stopper, Cam Grease |
| 19181 | Rotor, Distributor, Signal |
| 19183 | Rotor, Signal |
| 19184 | Spring, Rotor Set |
| 19220 | Advancer Assy, Vacuum, Distributor |
| 19221 | Cap, Adjuster, Distributor |
| 19225 | Cap, Rubber |
| 19235 | Housing, Distributor |
| 19242 | Clamp, Cord |
| 19250 | Generator Assy, Signal |
| 19500B | Coil Assy, Ignition |
| 89620B | Igniter Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
