Toyota Carina 2

1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe

Discontinued model Data version 1993-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

15 part groups · 6 illustrations

Illustrations

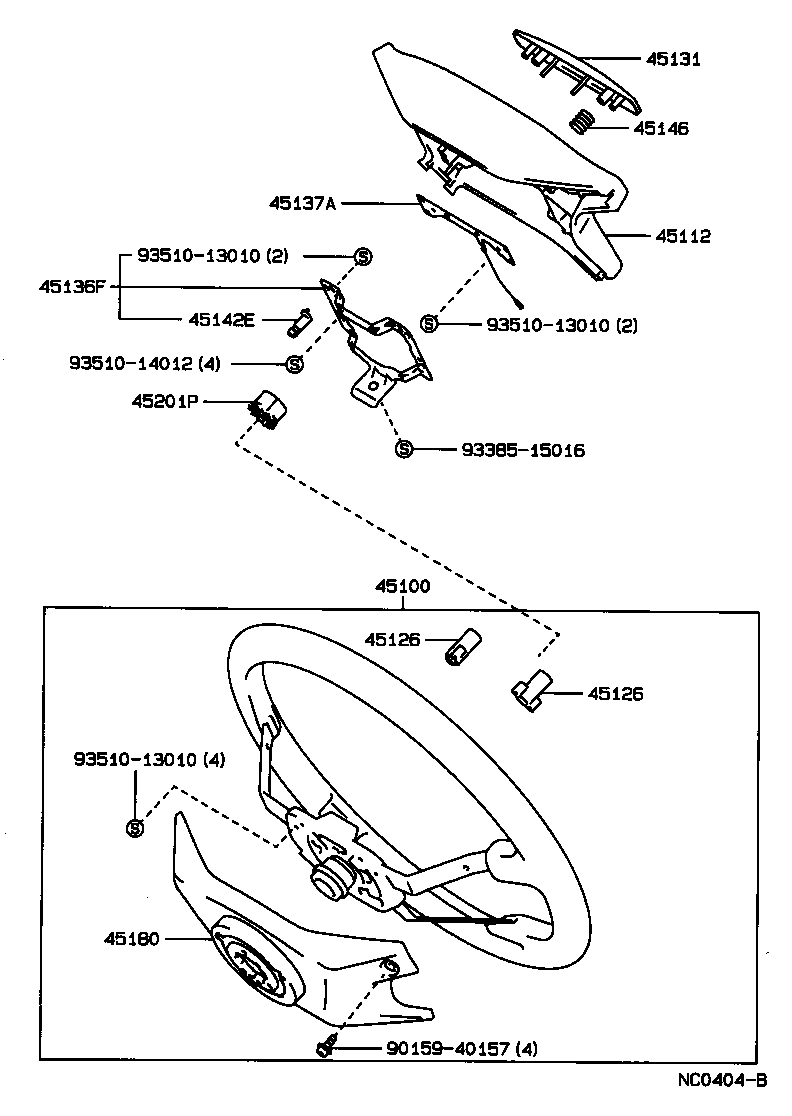

Figure NC0401A NC0401A 1987-12 → 1989-11 Figure NC0404B NC0404B 1987-12 → 1989-11 Figure NC0404B NC0404B 1988-06 → 1989-11 Figure NC0404B NC0404B 1989-05 → 1989-07 Figure MCJ635B MCJ635B 1989-11 → — Figure MCJ636A MCJ636A 1989-11 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45112 Pad, Steering Wheel
45125 Mark, Steering Wheel Pad
45126 Plate, Steering Wheel Pad Set
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136F Plate, Horn Button Contact, NO.1
45137A Plate, Horn Button Contact, NO.2
45142E Piece, Horn Contact
45146 Spring, Horn Button Contact
45180 Cover Sub-assy, Steering Wheel
45201P Nut, Steering Wheel Set
45713A Damper, Steering Shake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
