Toyota Carina 2

1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe

Discontinued model Data version 1993-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

16 part groups · 2 illustrations

Illustrations

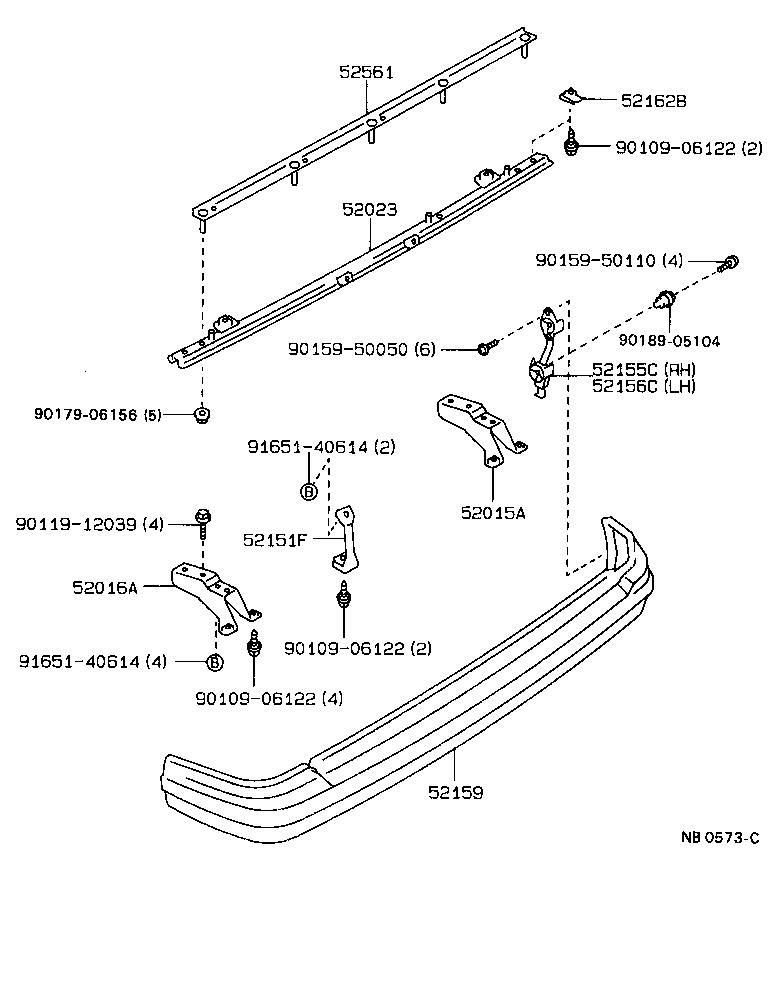

Figure MBT480 MBT480 1987-12 → — Figure NB0573C NB0573C 1987-12 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52023 Reinforcement Sub-assy, Rear Bumper
52151F Stay, Rear Bumper
52152 Bar, Rear Bumper, RH
52153 Bar, Rear Bumper, LH
52155C Support, Rear Bumper Side, NO.1 RH
52156C Support, Rear Bumper Side, NO.1 LH
52159 Cover, Rear Bumper
52162B Plate, Rear Bumper, NO.1
52552 Filler, Rear Bumper, RH
52553 Filler, Rear Bumper, LH
52561 Retainer, Rear Bumper, Upper Center
52569 Pad, Rear Bumper Filler
52581A Protector, Rear Bumper Filler
52751 Moulding, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
