Floor Pan & Lower Back Panel

35 part groups · 3 illustrations

Illustrations

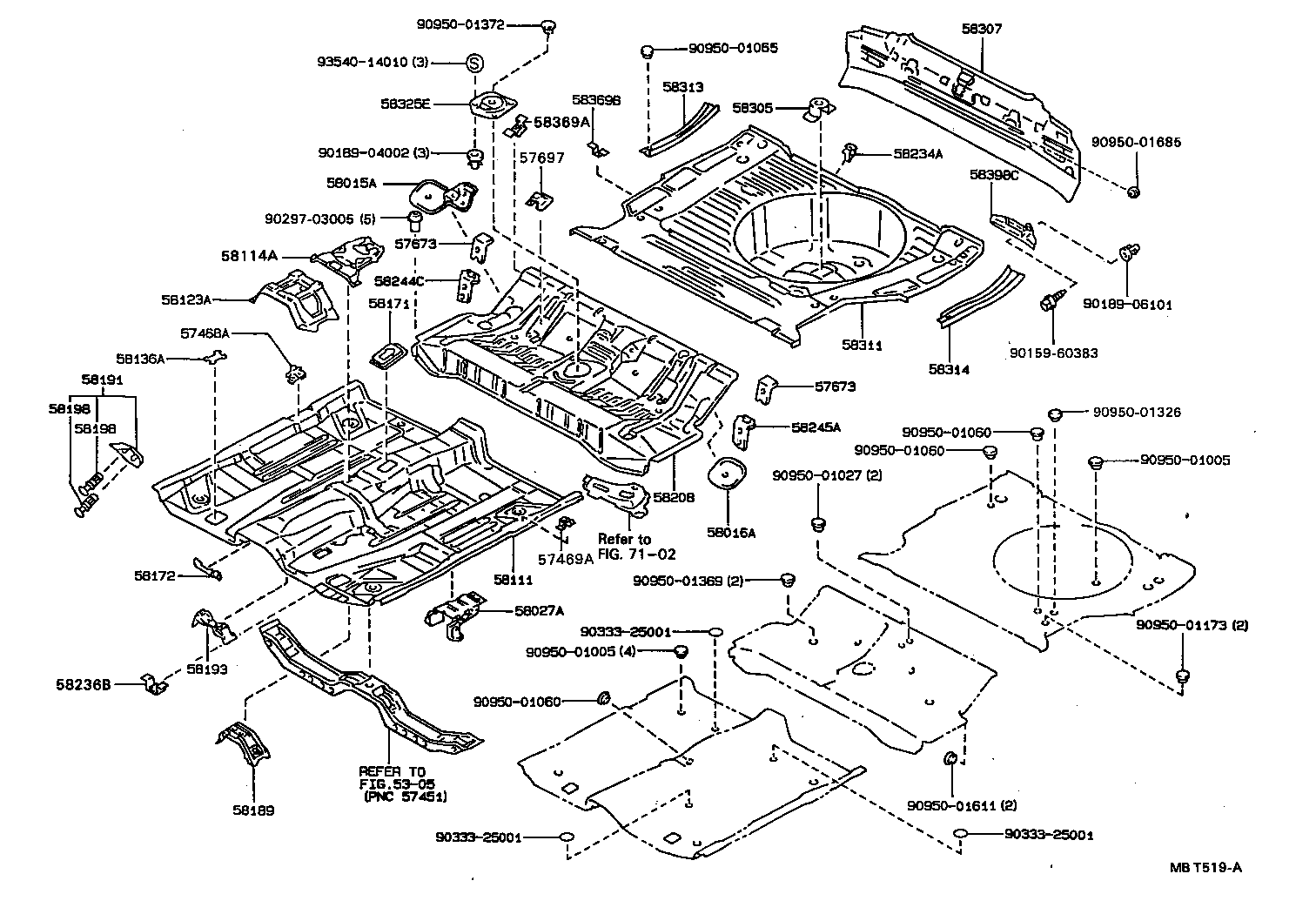

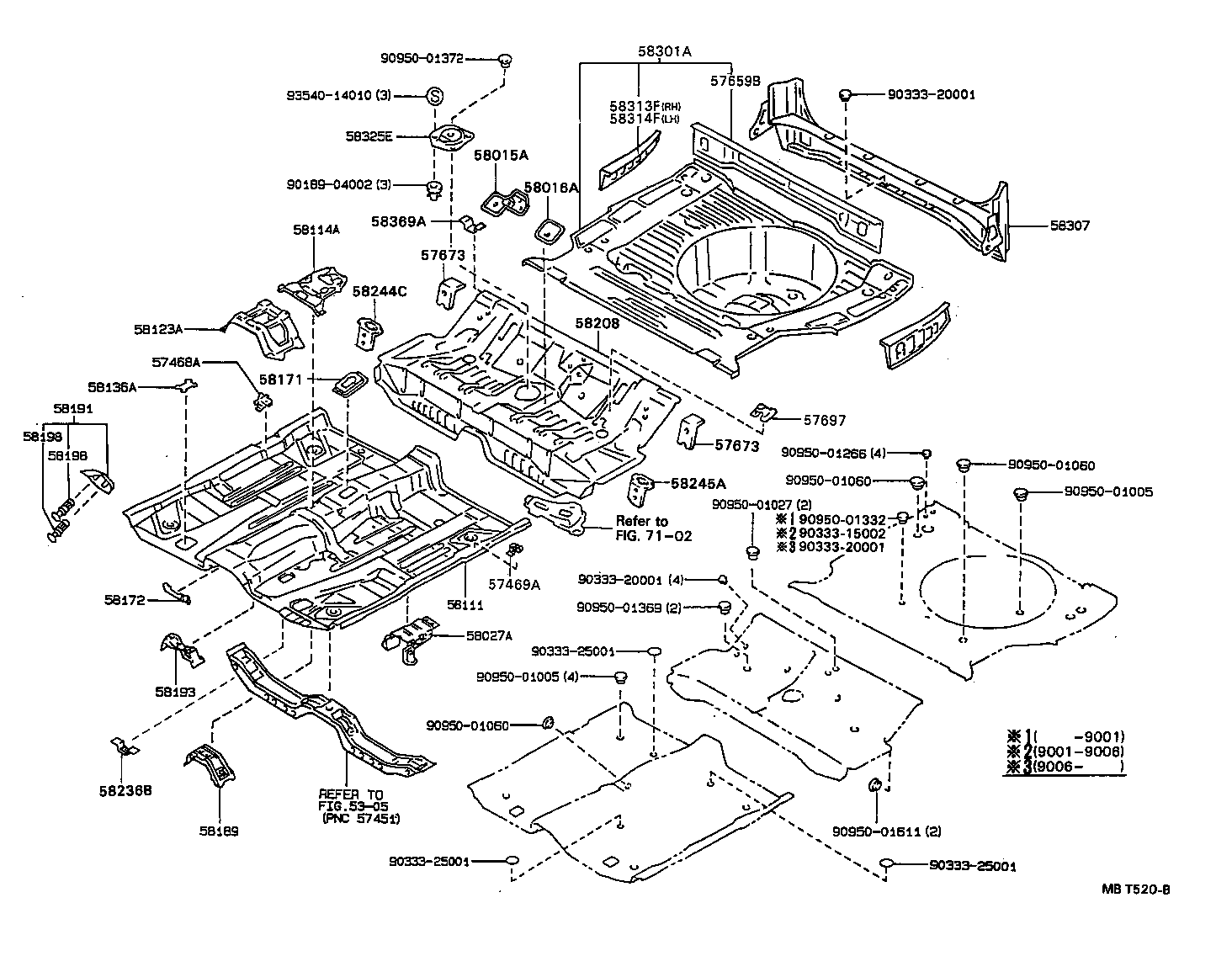

Figure MBT518A MBT518A 1987-12 → — Figure MBT519A MBT519A 1987-12 → — Figure MBT520B MBT520B 1987-12 → —

Part groups

PNCDescription
57468A Bracket, Front Seat, Outside, Rear RH
57469A Bracket, Front Seat, Outside, Rear LH
57659B Member, Rear Floor Cross, Rear Inner
57673 Bracket, Rear Seatback Hinge Mounting
57697 Retainer, Rear Seat Cushion
58015A Reinforce Sub-assy, Belt Anchor, NO.3 RH
58016A Reinforce Sub-assy, Belt Anchor, NO.3 LH
58027A Reinforce Sub-assy, Seat Belt Anchor
58111 Pan, Front Floor
58114A Reinforcement, Front Floor Panel
58123A Support, Shift & Select Lever
58136A Cover, Front Floor Service Hole
58171 Reinforcement, Parking Brake Base
58172 Bracket, Computer Mounting, NO.3
58189 Reinforcement, Exhaust Pipe Clamp Bracket
58191 Footrest, Front Floor
58193 Bracket, Instrument Panel Brace Mounting
58198 Clip, Footrest
58208 Pan, Center Floor
58234A Bracket, Exhaust Pipe Mounting, Inner
58236B Bracket, Center Floor Heat Insulator
58244C Bracket, Rear Seat Cushion Mounting, RH
58245A Bracket, Rear Seat Hinge, Center NO.1
58301A Panel Sub-assy, Rear Floor
58305 Bracket Sub-assy, Spare Wheel Clamp
58307 Panel Sub-assy, Body Lower Back
58311 Pan, Rear Floor
58313 Panel, Rear Floor Side, RH
58313F Extension, Rear Floor Pan TO Quarter Panel, RH
58314 Panel, Rear Floor Side, LH
58314F Extension, Rear Floor Pan TO Quarter Panel, LH
58325E Cover, Rear Floor Service Hole
58369A Bracket, Fuel Tube, NO.3
58369B Bracket, Fuel Tube, NO.3
58398C Cover, Body Lower Back, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
