Toyota Carina 2
1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe
Discontinued model
Data version 1993-08

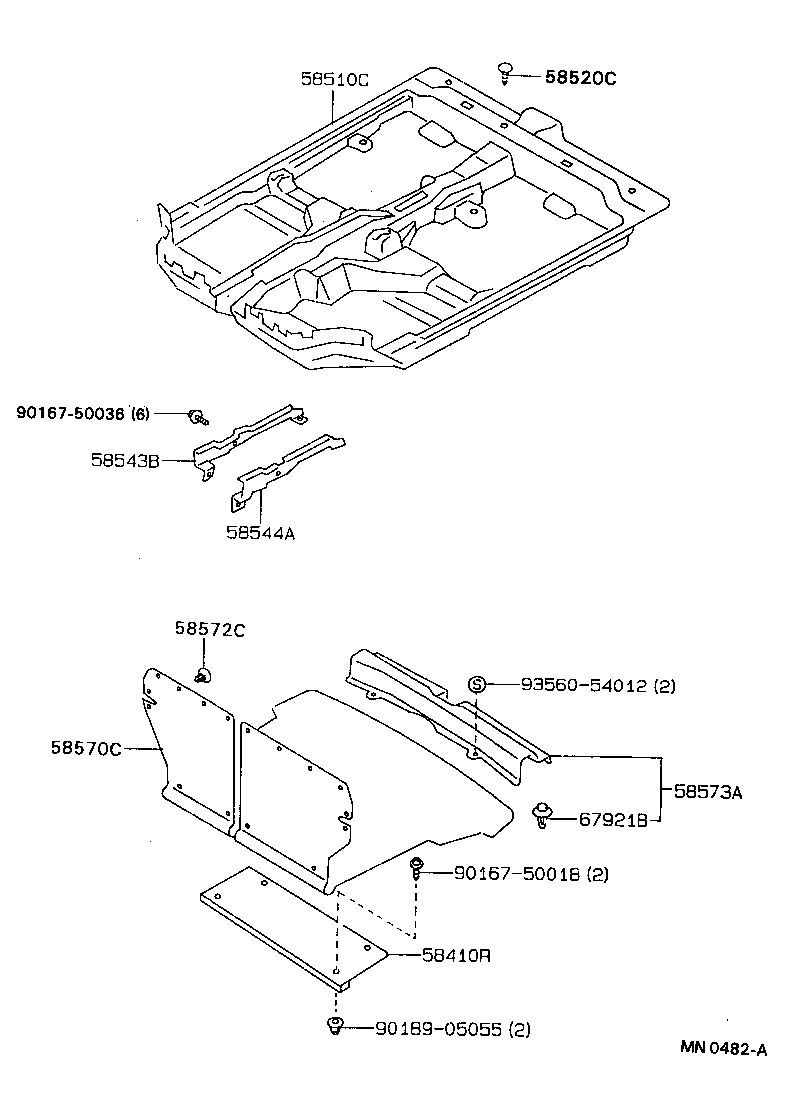

Mat & Carpet
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58410R | Board Assy, Deck |
| 58510C | Carpet Assy, Front Floor, Front |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58543B | Bracket, Floor Carpet, RH |
| 58544A | Bracket, Floor Carpet, LH |
| 58570C | Carpet Assy, Rear Floor |
| 58572C | Clip, Rear Floor Mat Set |
| 58573A | Plate, Rear Floor Mat Support |
| 67921B | Retainer, Rear Floor Mat Support |
| 72681B | Hook, Rear Seatback Lock, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
