Toyota Carina 2

1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe

Discontinued model Data version 1993-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

20 part groups · 2 illustrations

Illustrations

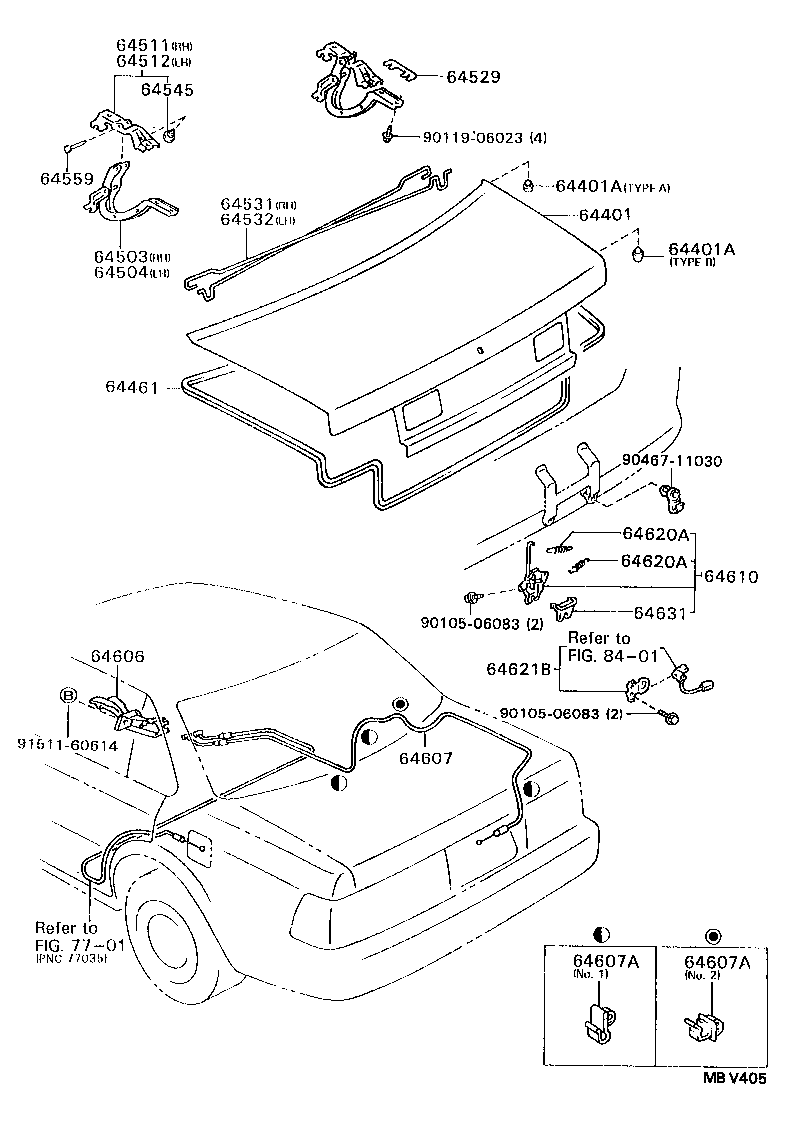

Figure MBM672C MBM672C 1987-12 → 1989-11 Figure MBV405 MBV405 1989-11 → —

Part groups

PNCDescription
64401 Panel Sub-assy, Luggage Compartment Door
64401A Cushion(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64401B Plug, Hole(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461 Weatherstrip, Luggage Compartment Door
64503 Arm Sub-assy, Luggage Compartment Door Hinge, RH
64504 Arm Sub-assy, Luggage Compartment Door Hinge, LH
64511 Support, Luggage Compartment Door Hinge, RH
64512 Support, Luggage Compartment Door Hinge, LH
64529 Spacer, Luggage Compartment Door Hinge
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64545 Cushion, Luggage Door Hinge
64559 Pin, Luggage Door Hinge
64606 Lever Sub-assy, Luggage Door Lock Open
64607 Cable Sub-assy, Luggage Door Lock Control
64607A Clamp, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64610 Lock Assy, Luggage Compartment Door
64620A Spring, Tension(FOR LUGGAGE COMPARTMENT DOOR LOCK)
64621B Striker, Luggage Compartment Door Lock
64631 Protector, Luggage Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
