Toyota Carina 2
1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe
Discontinued model
Data version 1993-08

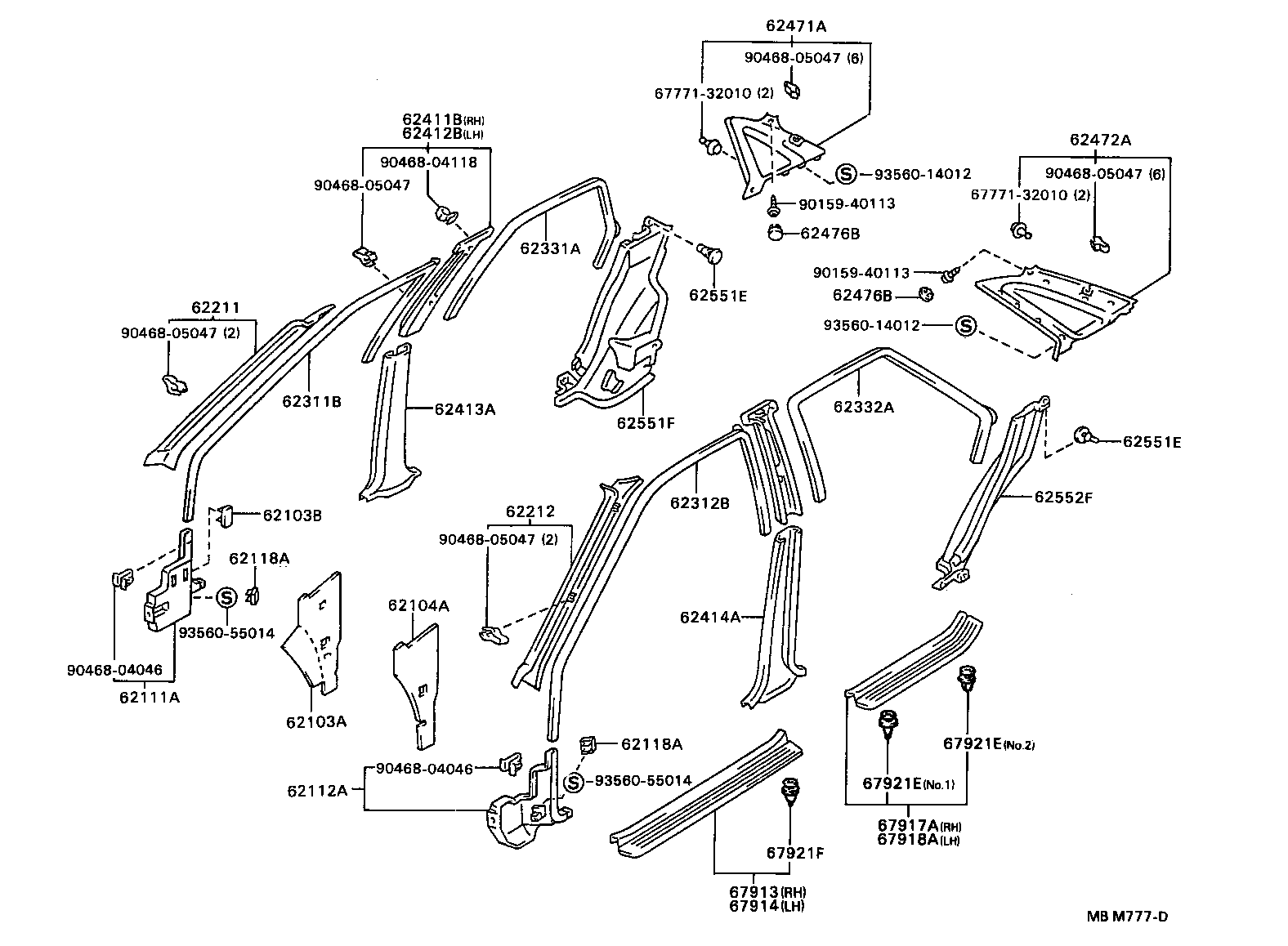

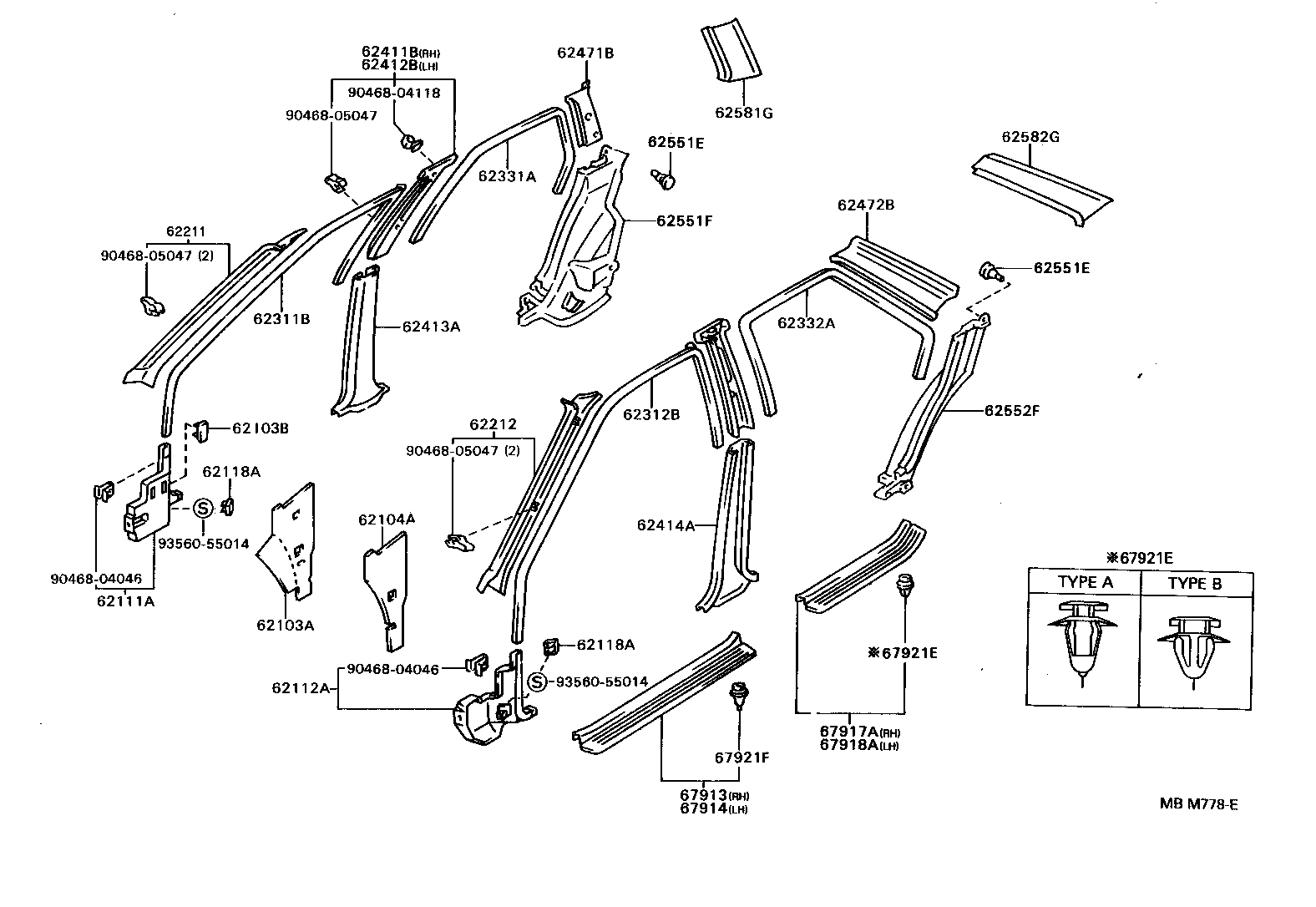

Inside Trim Board & Door Opening Trim Moulding
38 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103A | Insulator Sub-assy, Cowl Side, RH |
| 62103B | Plug(FOR COWL SIDE TRIM BOARD) |
| 62104A | Insulator Sub-assy, Cowl Side, LH |
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62118A | Cap, Cowl Side Trim |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471B | Cover, Rear Pillar, RH |
| 62472A | Garnish, Roof Side, Inner LH |
| 62472B | Cover, Rear Pillar, LH |
| 62475D | Pad, Roof Side Inner Garnish, RH |
| 62476B | Cap, Roof Side Inner Garnish, NO.1 |
| 62498A | Pad, Roof Side Inner Garnish, LH |
| 62551E | Clip(FOR REAR SEAT SIDE GARNISH) |
| 62551F | Garnish, Rear Seat Side, RH |
| 62552F | Garnish, Rear Seat Side, LH |
| 62571A | Garnish, Roof Side, Inner Lower RH |
| 62572A | Garnish, Roof Side Inner Lower LH |
| 62581C | Garnish, Rear Window Side, RH |
| 62581G | Cover, Quarter Pillar, RH |
| 62582C | Garnish, Rear Window Side, LH |
| 62582G | Cover, Quarter Pillar, LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67921E | Retainer, Rear Door Scuff Plate |
| 67921F | Retainer, Front Door Scuff Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
