Toyota Carina 2

1987-12 → 1992-03 · chassis AT17#,ST171,CT171 · catalogue 271520 · Europe

Discontinued model Data version 1993-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

18 part groups · 2 illustrations

Illustrations

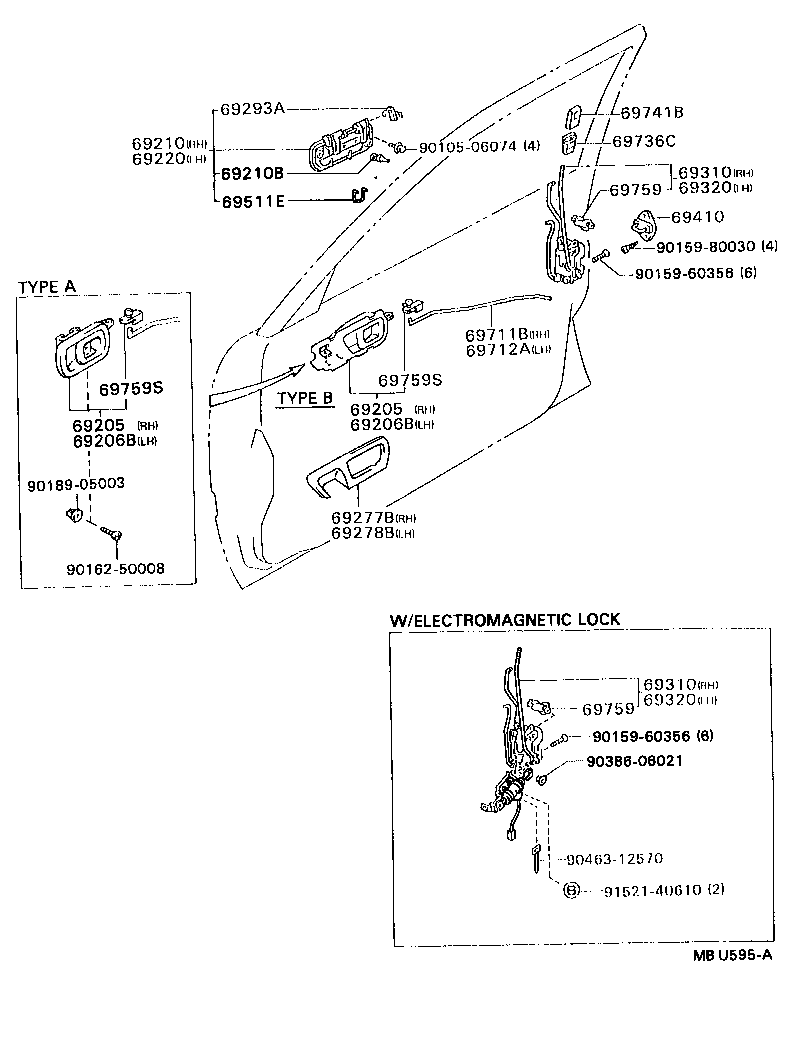

Figure MBM875D MBM875D 1987-12 → 1989-11 Figure MBU595A MBU595A 1989-11 → —

Part groups

PNCDescription
69205 Handle Sub-assy, Front Door Inside, RH
69206B Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69210B Cushion(FOR FRONT DOOR OUTSIDE HANDLE)
69220 Handle Assy, Front Door Outside, LH
69277B Bezel, Front Door Inside Handle, RH
69278B Bezel, Front Door Inside Handle, LH
69293A Snap, Front Door Outside Handle
69310 Lock Assy, Front Door, RH
69320 Lock Assy, Front Door, LH
69410 Plate Assy, Front Door Lock Striker
69511E Retainer, Front Door Lock Cylinder
69711B Link, Front Door Lock Remote Control, RH
69712A Link, Front Door Lock Remote Control, LH
69736C Guide, Front Door Locking Link
69741B Knob, Front Door Lock Control
69759 Snap, Door Lock Control Link, NO.1
69759S Snap, Front Door Inside Handle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
